Jacking & Hoisting: OUTERBODY

Points on the outline of body were designated to be used specifically with vehicle's own jack. See Fig 1. If floor jack or hoist is used at these points, use extreme care to avoid damaging outer body shell. See Fig 2 or Fig 3 .

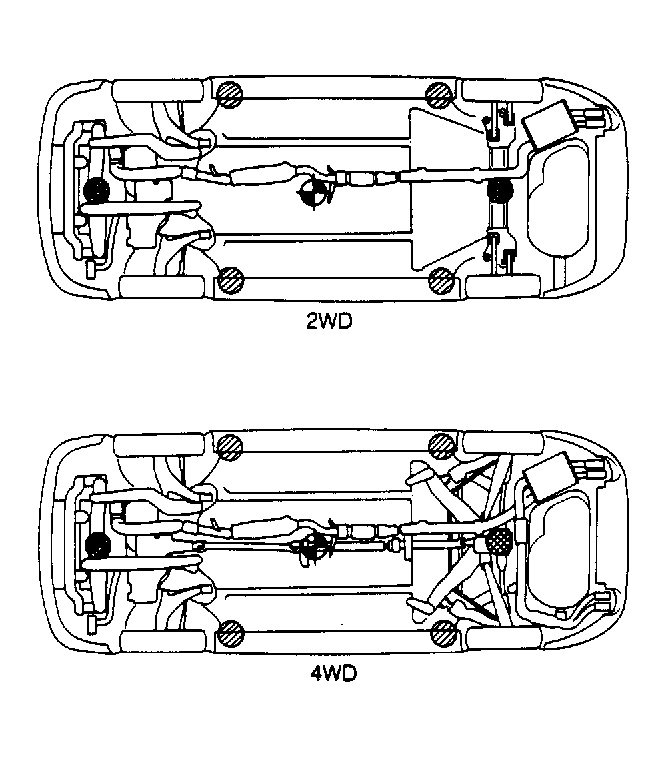

Fig 1: Jacking & Hoisting Points (Typical)

Fig 2: Jacking & Hoisting Points (Except Stealth & 3000GT) Courtesy of Mitsubishi Motor Sales of America.

Fig 3: Jacking & Hoisting Points (Stealth & 3000GT) Courtesy of Mitsubishi Motor Sales of America.
