Entering DRB-II Main Menu

  1. Ensure ignition is off. Attach DRB-II to Chrysler Collision Detection (CCD) BUS diagnostic connector. Diagnostic connector is located under instrument cluster, left of steering column. See Fig 1 . Turn ignition switch to RUN position.
  2. All DRB-II character positions will illuminate and copyright information will appear on screen for a few seconds. DRB-II main menu will appear after a few seconds. If DRB-II screen is blank or any error messages appear, see DRB-II PROBLEMS & ERROR MESSAGES  .

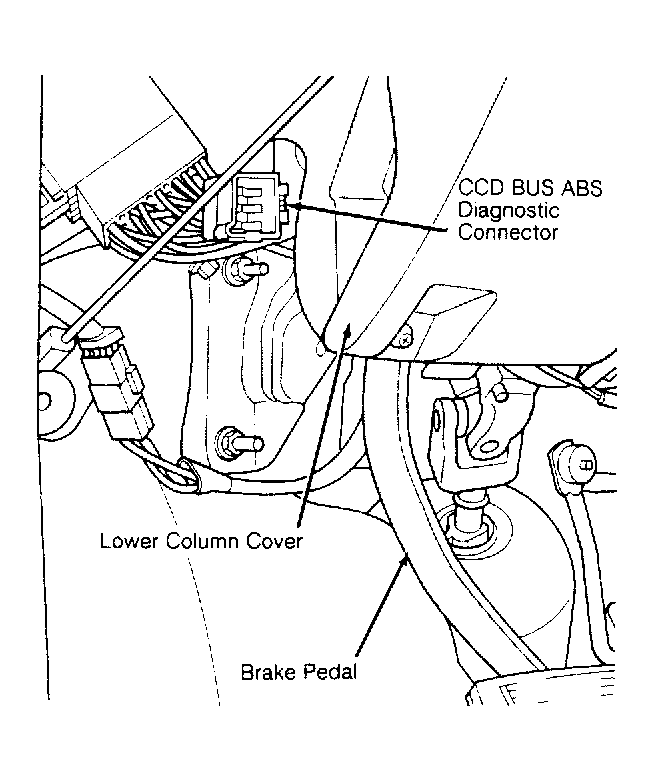

Fig 1: Locating CCD BUS ABS Diagnostic Connector
G92F05571Courtesy of CHRYSLER MOTORS.
