Fuse Block

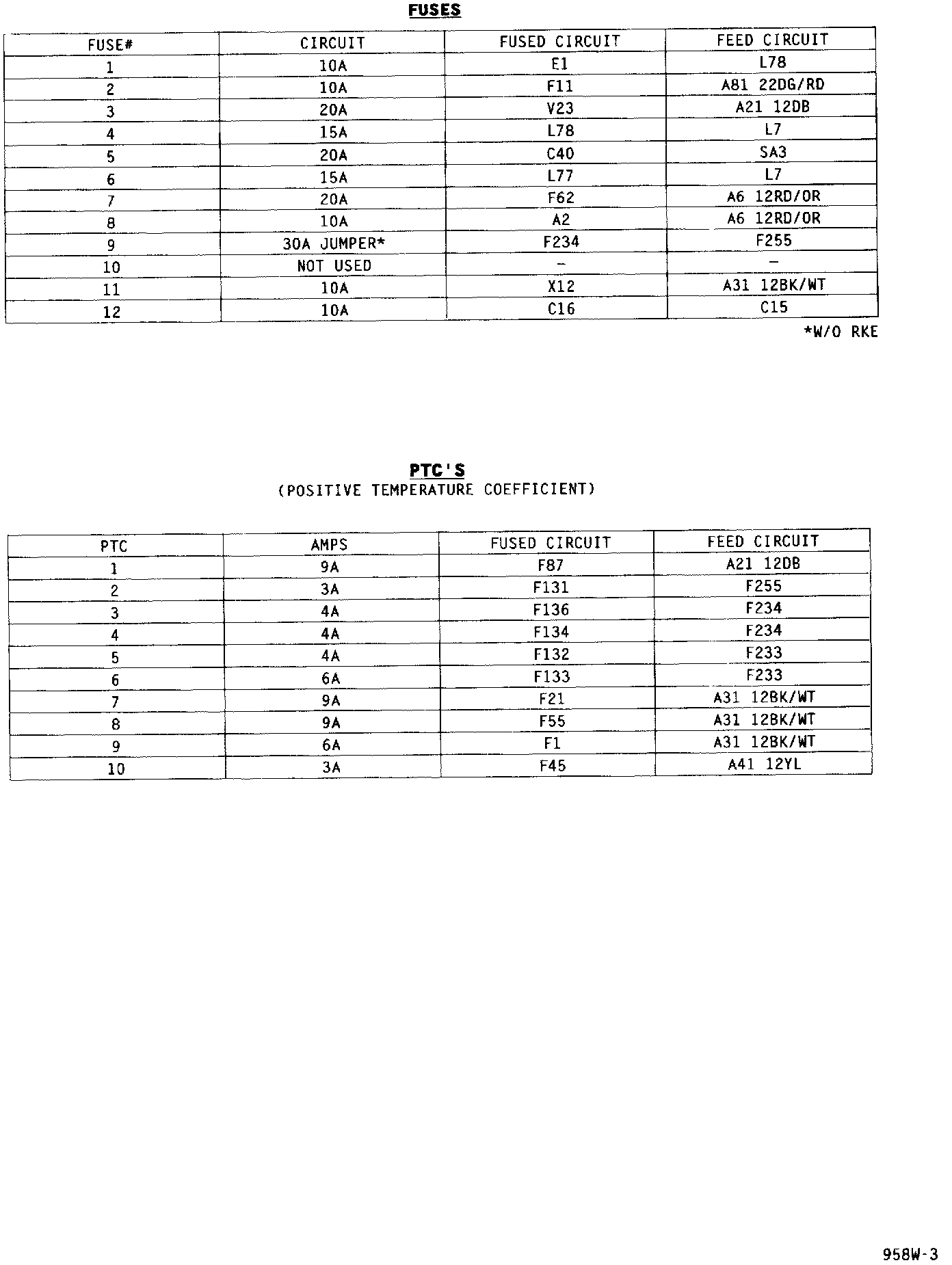

Junction Block (Part 1 Of 5):

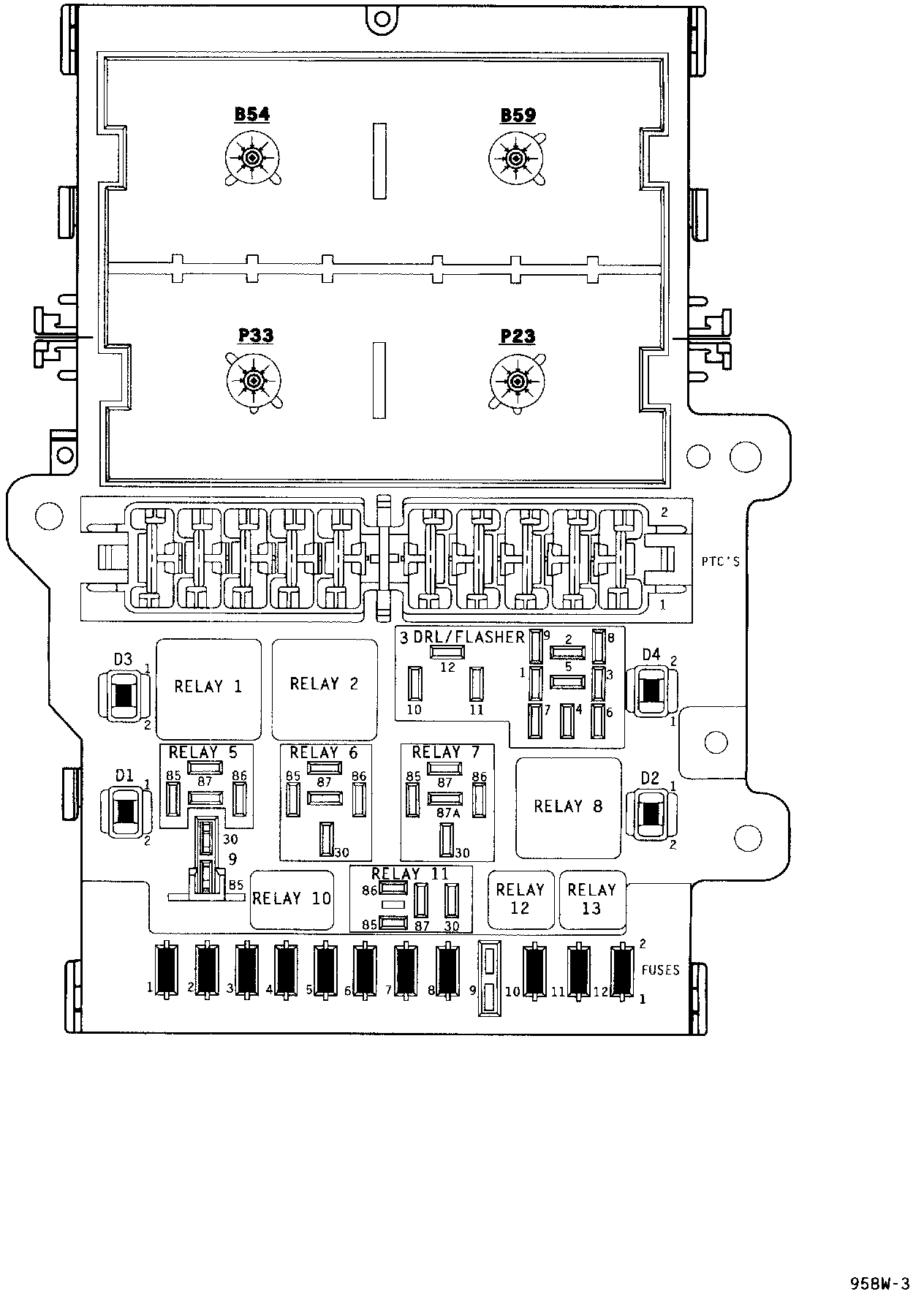

Junction Block (Part 2 Of 5):

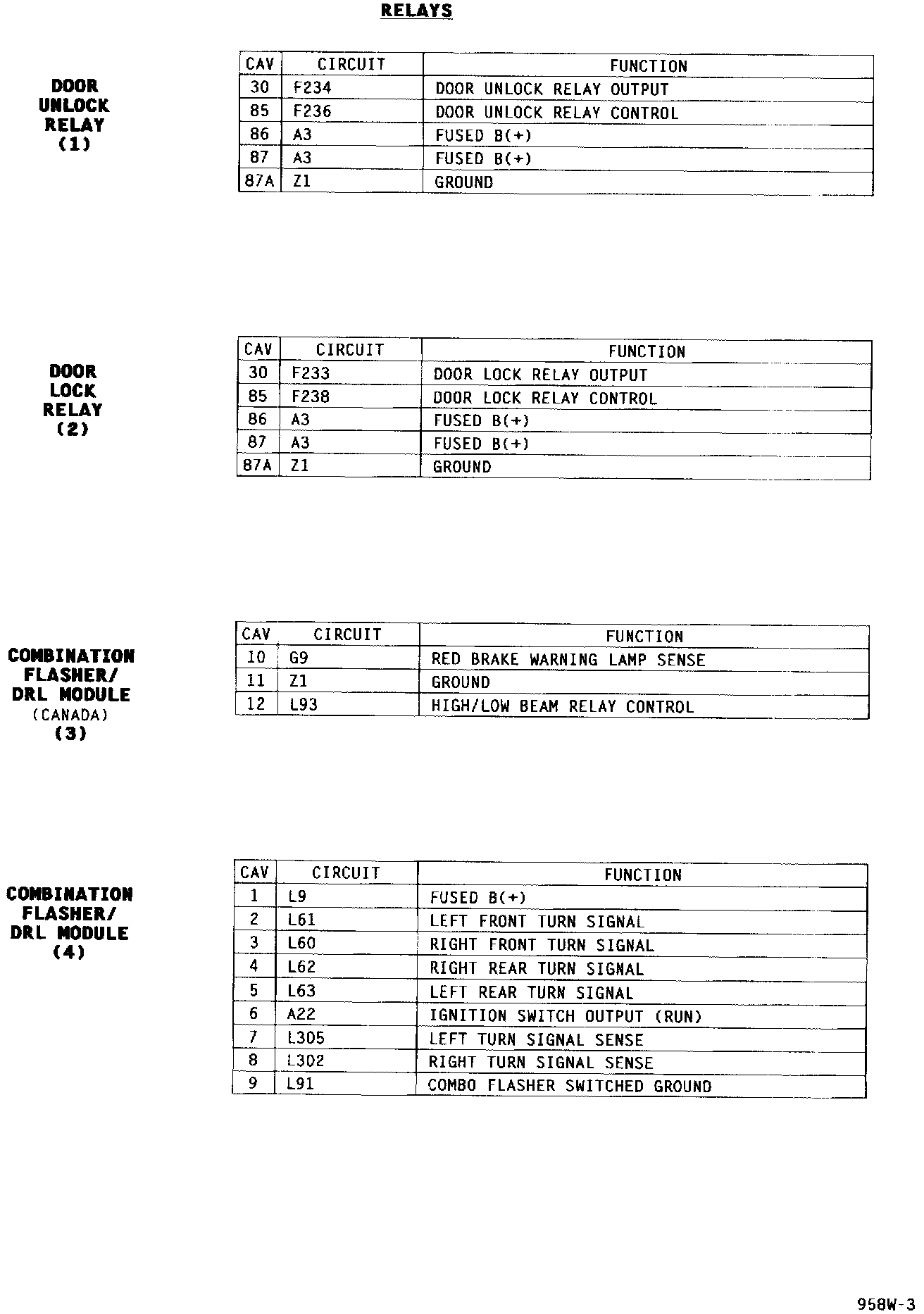

Junction Block (Part 3 Of 5):

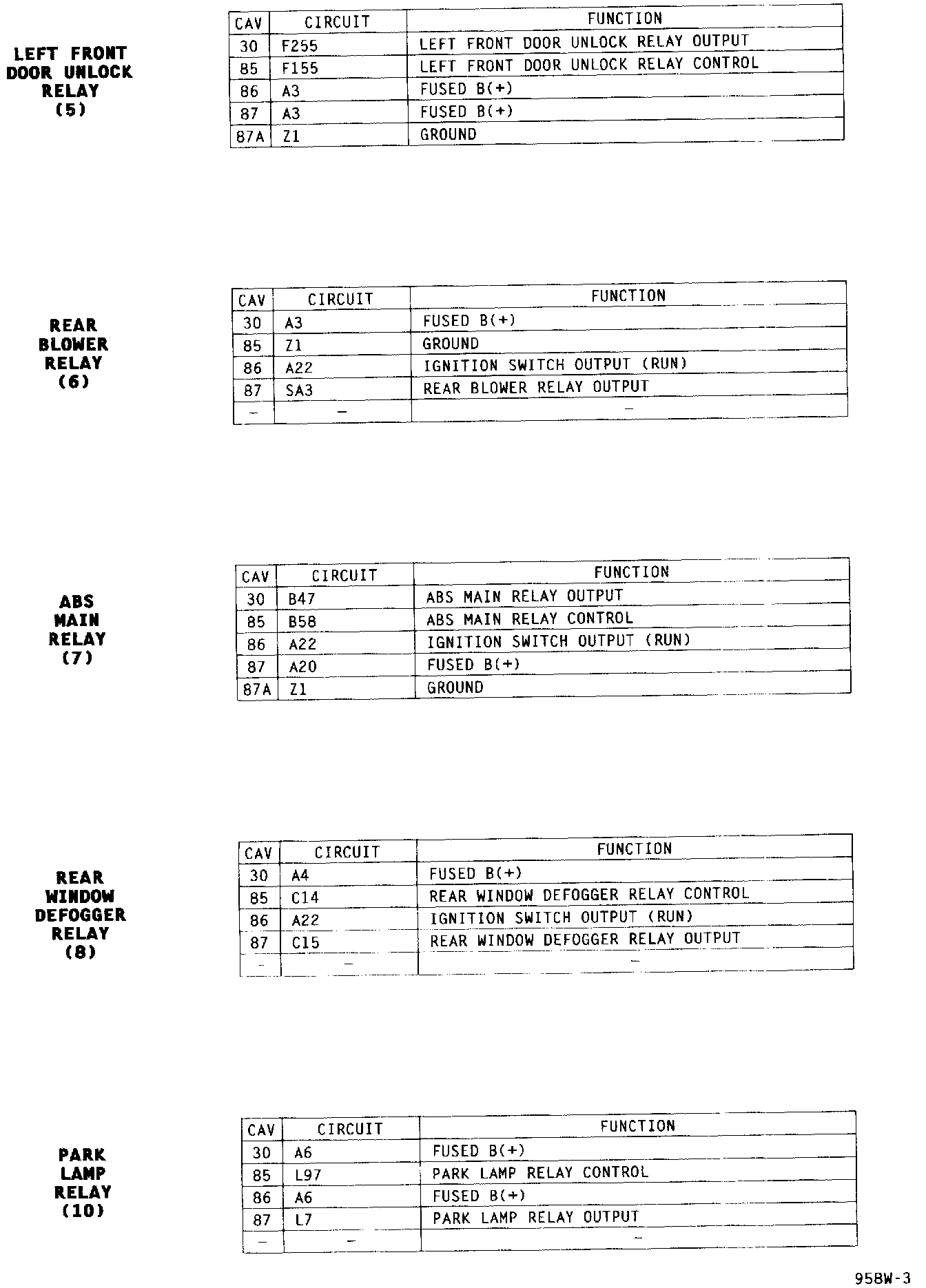

Junction Block (Part 4 Of 5):

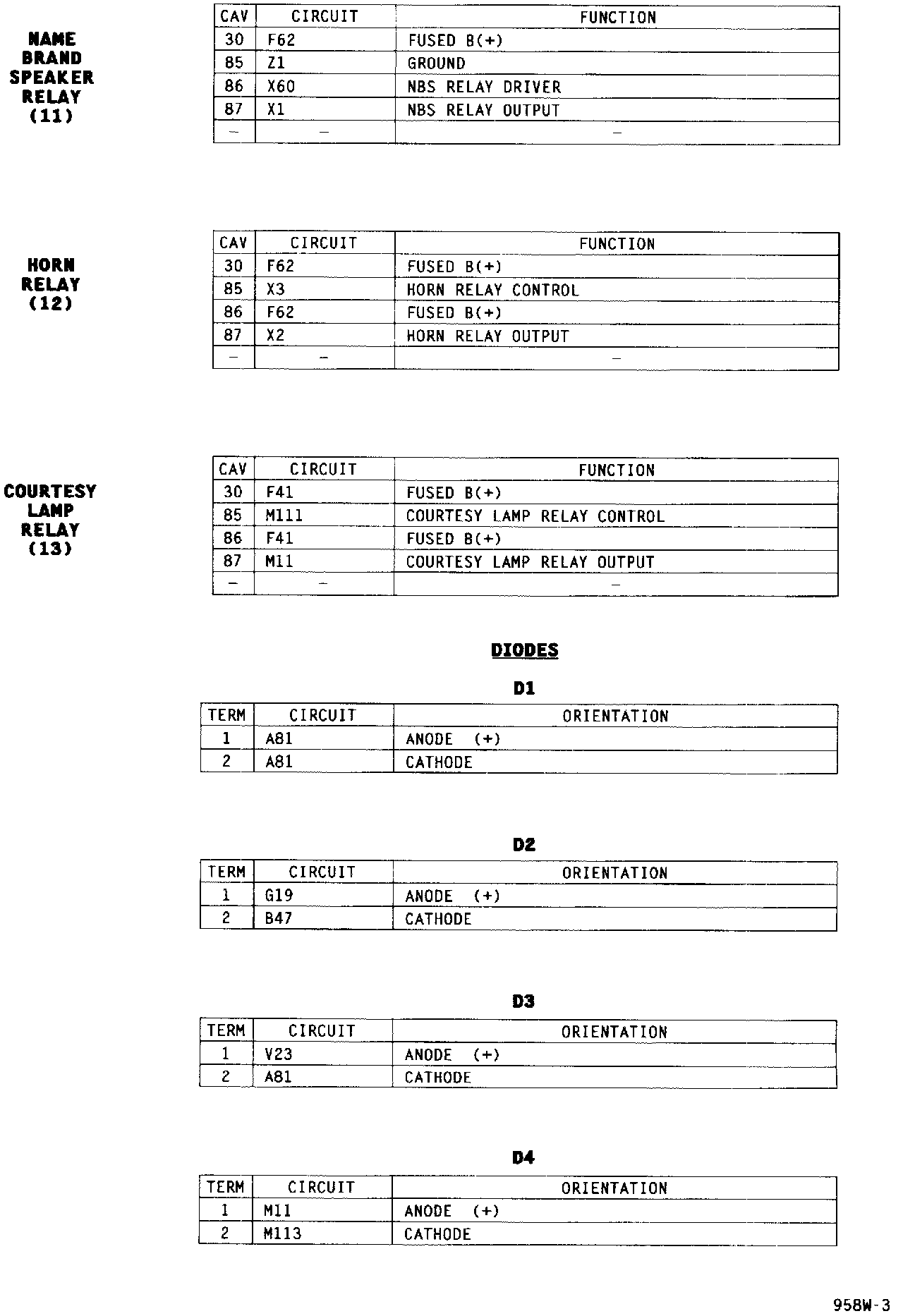

Junction Block (Part 5 Of 5):






NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
