DRB Scan Tool Error Messages and Blank Screen
>>
Test 1A Blank Screen
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

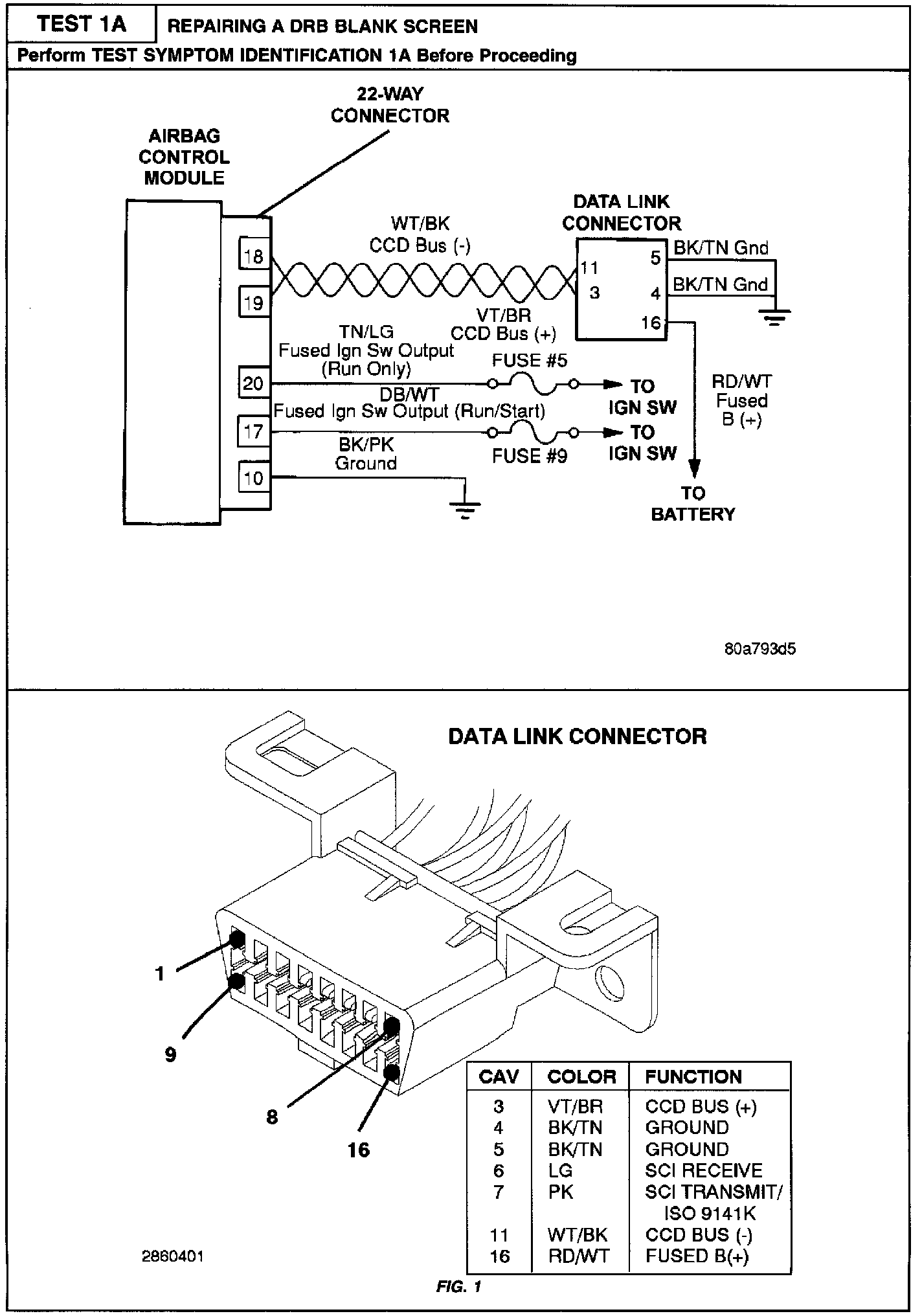

Test 1A Blank Screen
Diagnostic Chart:
Related Images:
