Wiring Diagrams: Notes

NOTE: For additional wiring diagrams, connector identification and splice locations, see SYSTEM WIRING DIAGRAMS .

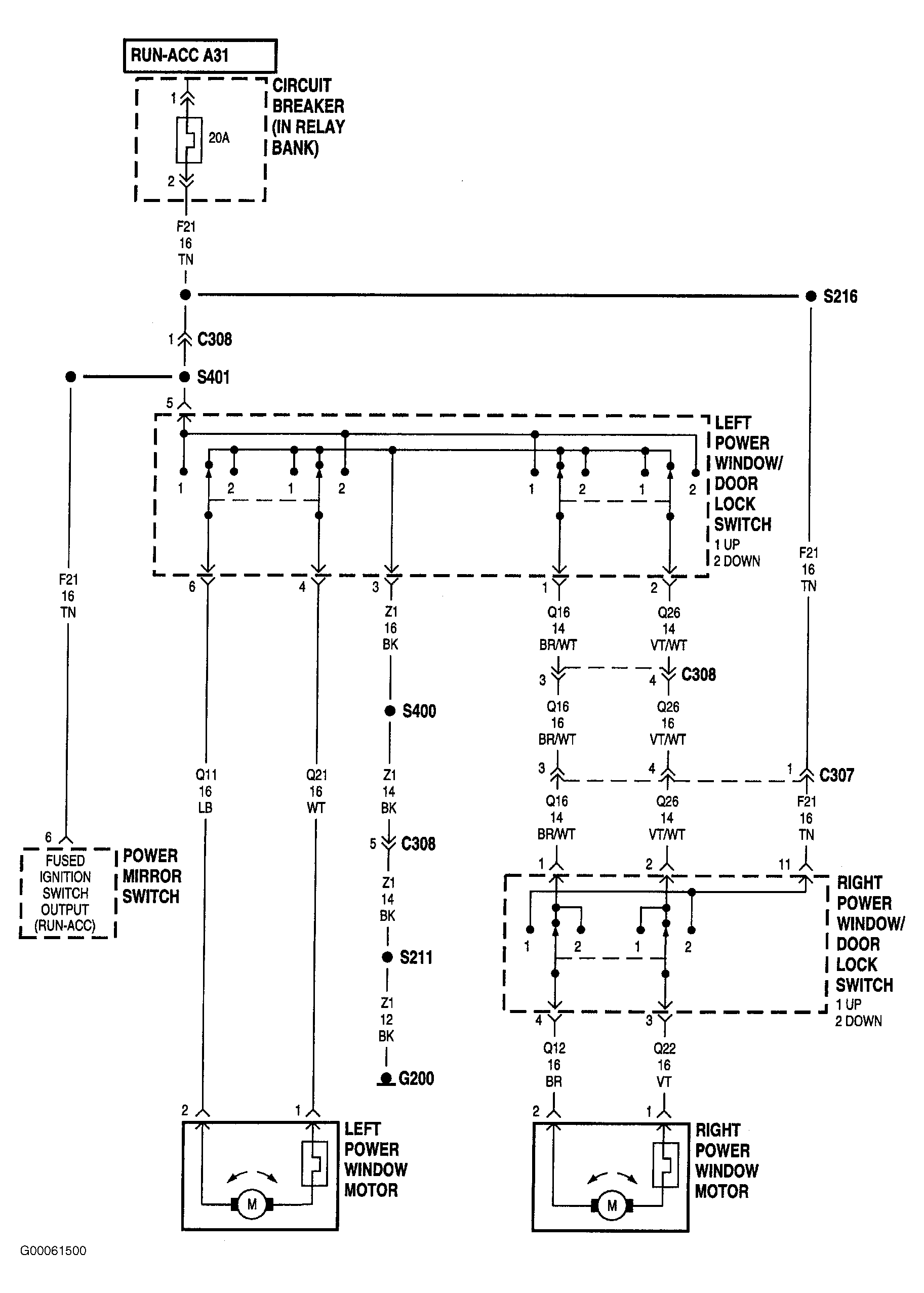

Fig 1: Power Window Wiring Diagram (1997 & 1999)
G00061500Courtesy of CHRYSLER CORP.
