Component Locations

COMPONENT LOCATIONS

Component	Location
Junction Block	Behind left side of dash.
Power Distribution Center	Left side of engine compartment.
Power Window Switch	On Respective Door/Trim Panel

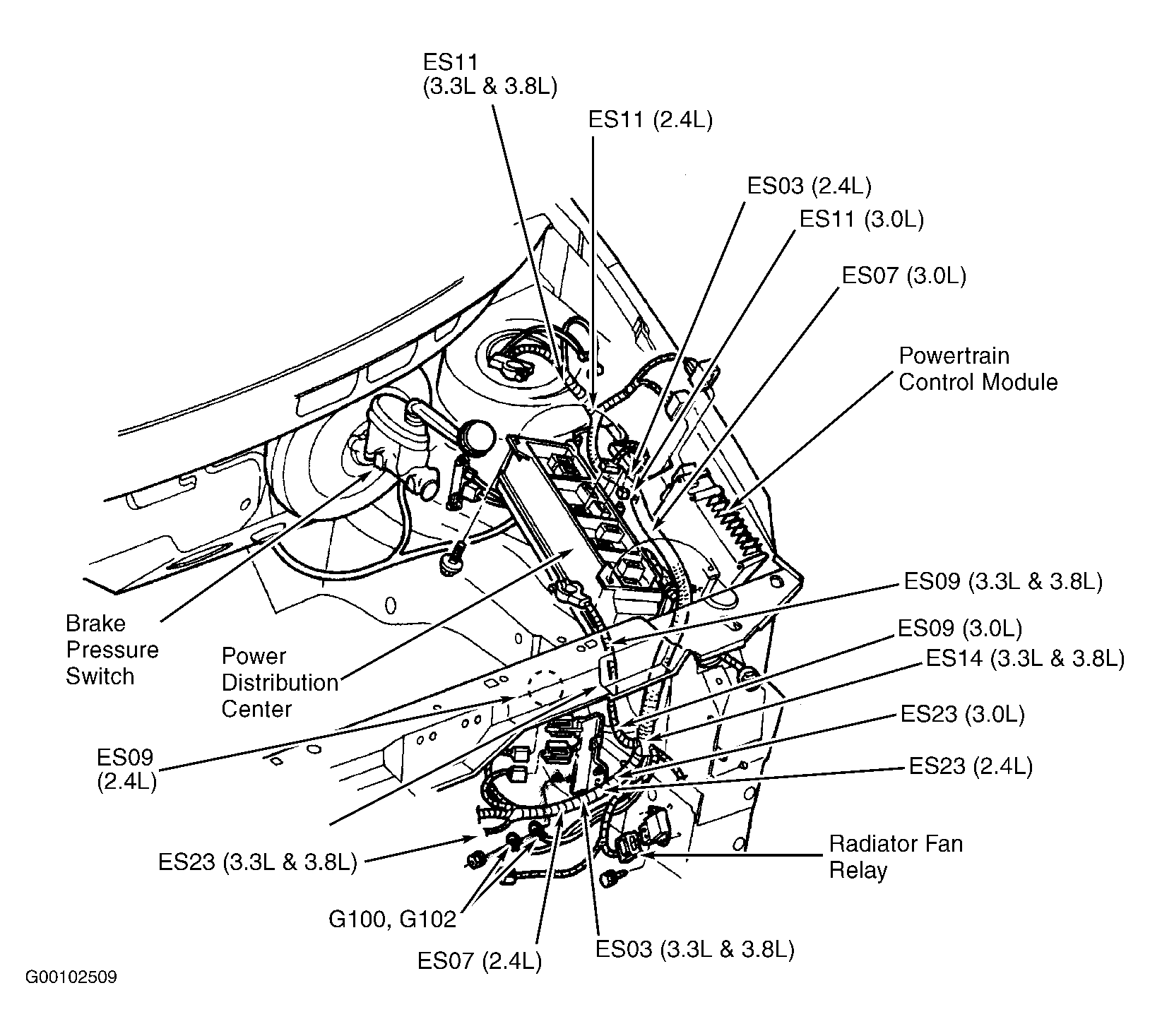

Fig 1: Locating Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
