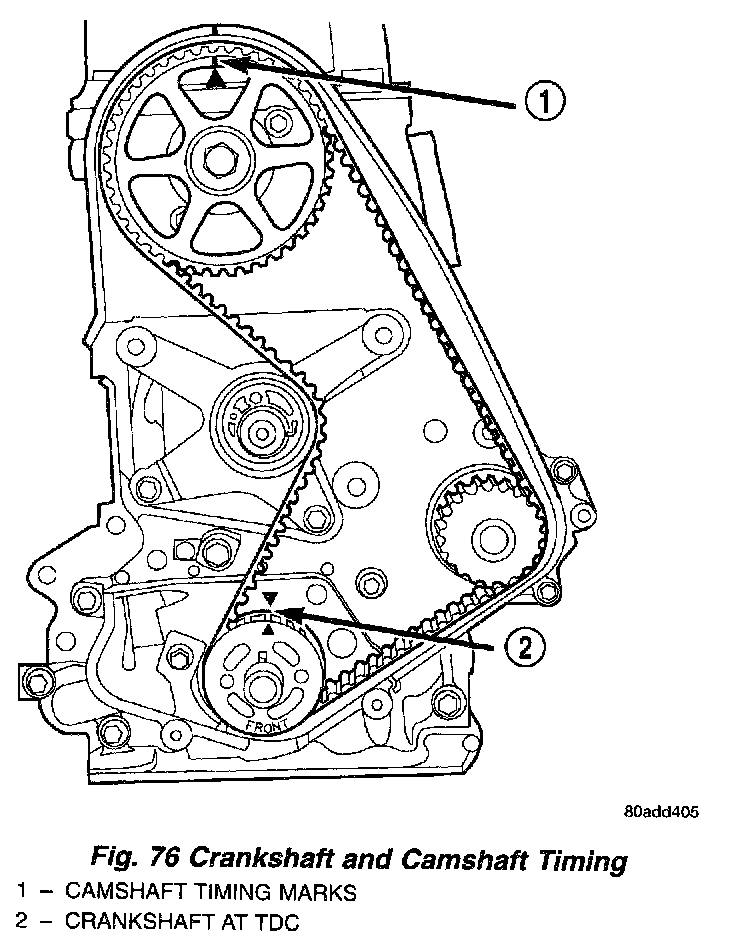

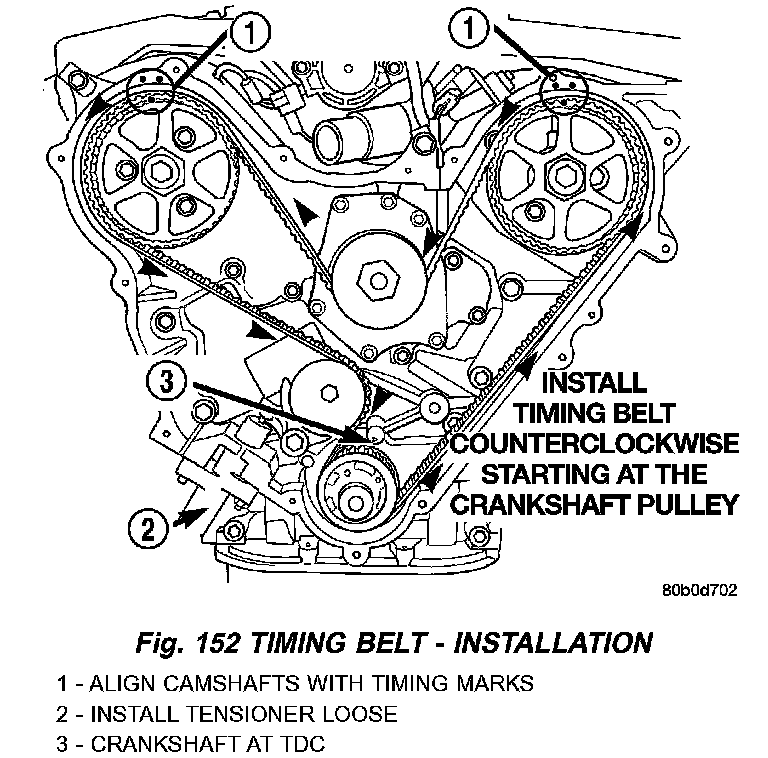

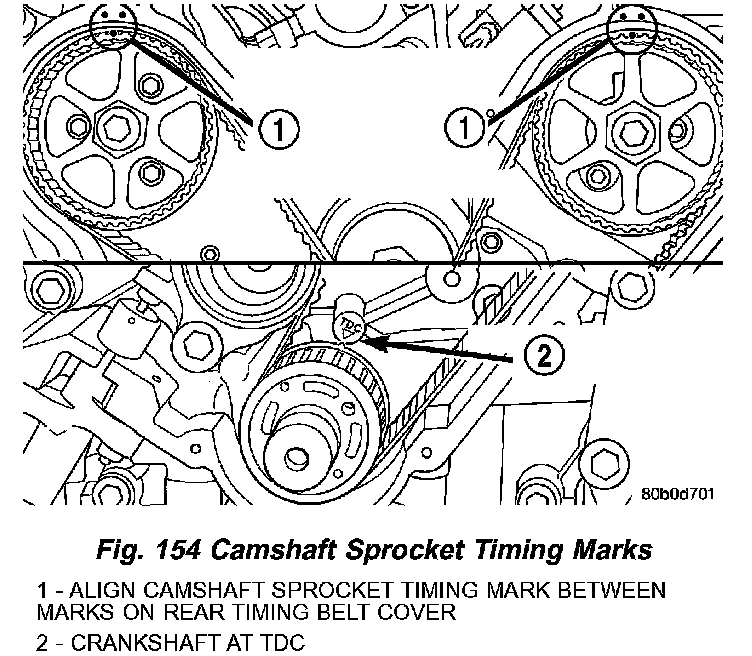

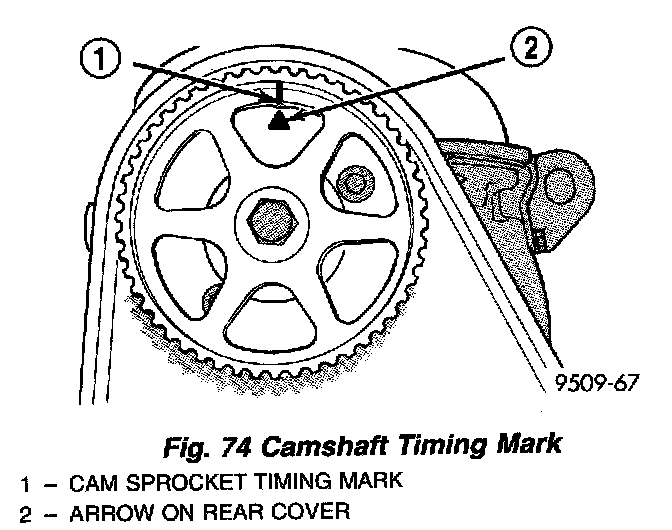

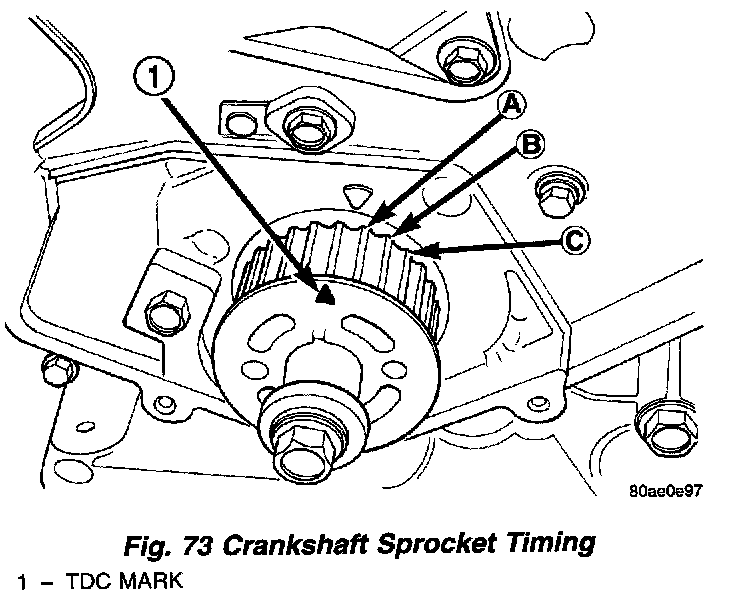

Timing Component Alignment Marks: Locations

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.


















For complete Timing Belt Removal and Installation information: Service and Repair
