Manifold Pressure/Vacuum Sensor: Service and Repair

MAP Sensor:

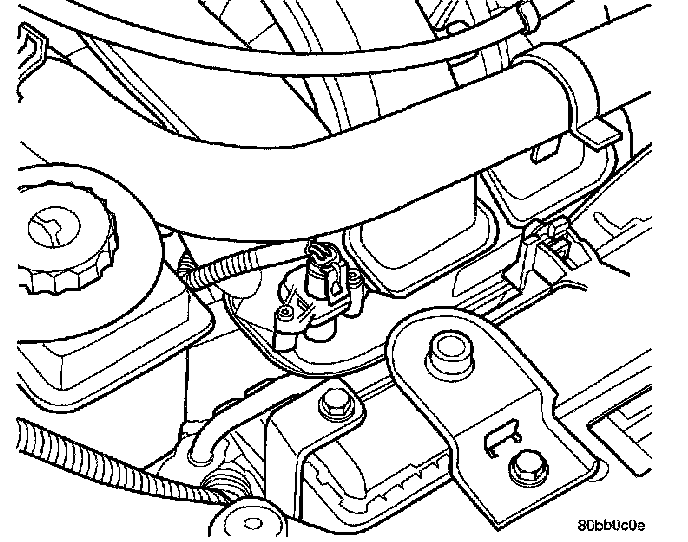

The MAP sensor attaches to the intake manifold plenum.

REMOVAL
1. Disconnect the electrical connector from the MAP sensor.
2. Remove sensor mounting screws.
3. Remove sensor.

INSTALLATION
1. Insert sensor into intake manifold while making sure not to damage O-ring seal.
2. Tighten mounting screws to 4.5 Nm (40 in. lbs.) torque for plastic manifold.
3. Attach electrical connector to sensor.
