Power Window Switch: Service and Repair

REMOVAL

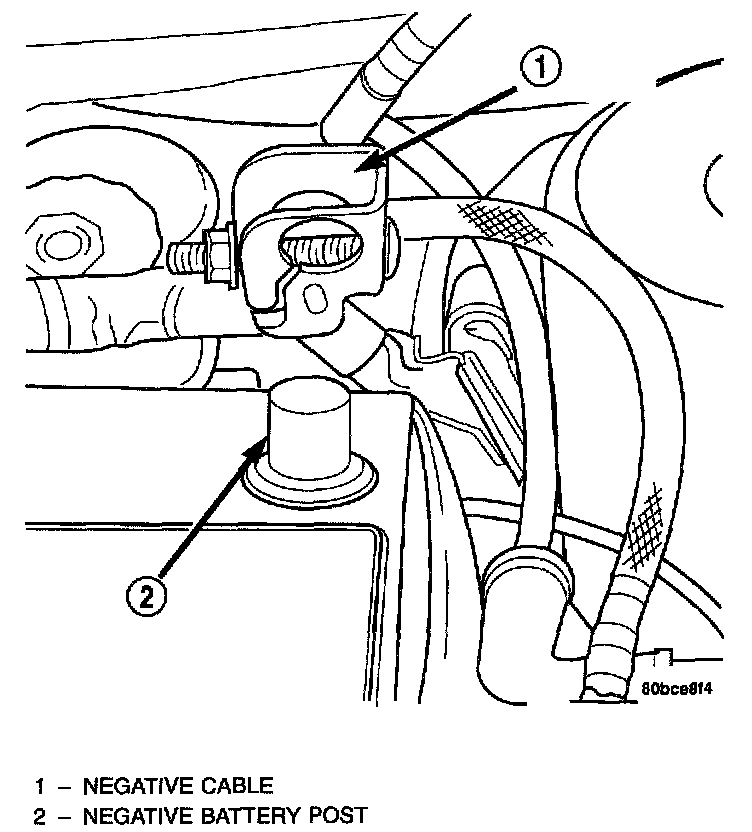

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Using a trim stick (special tool # C-4755) or equivalent, gently pry up on window switch bezel and remove from door trim panel.
3. Disconnect wire connector from switch.
4. Remove two switch retaining screws.

INSTALLATION
For installation, reverse the above procedures.
