Manifold Pressure/Vacuum Sensor: Locations

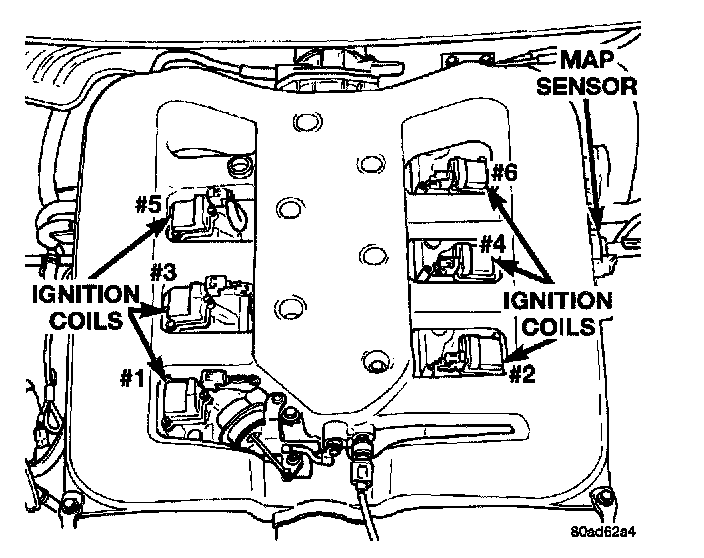

Ignition Coils, MAP/IAT Sensor:
Fig. 15 MAP/Air Temperature Sensor:
The MAP/IAT sensor mounts onto the left side of the intake manifold plenum.
The MAP/IAT sensor mounts onto the left side of the intake manifold plenum.
