Test A: Door Lock Switch Failure: Notes

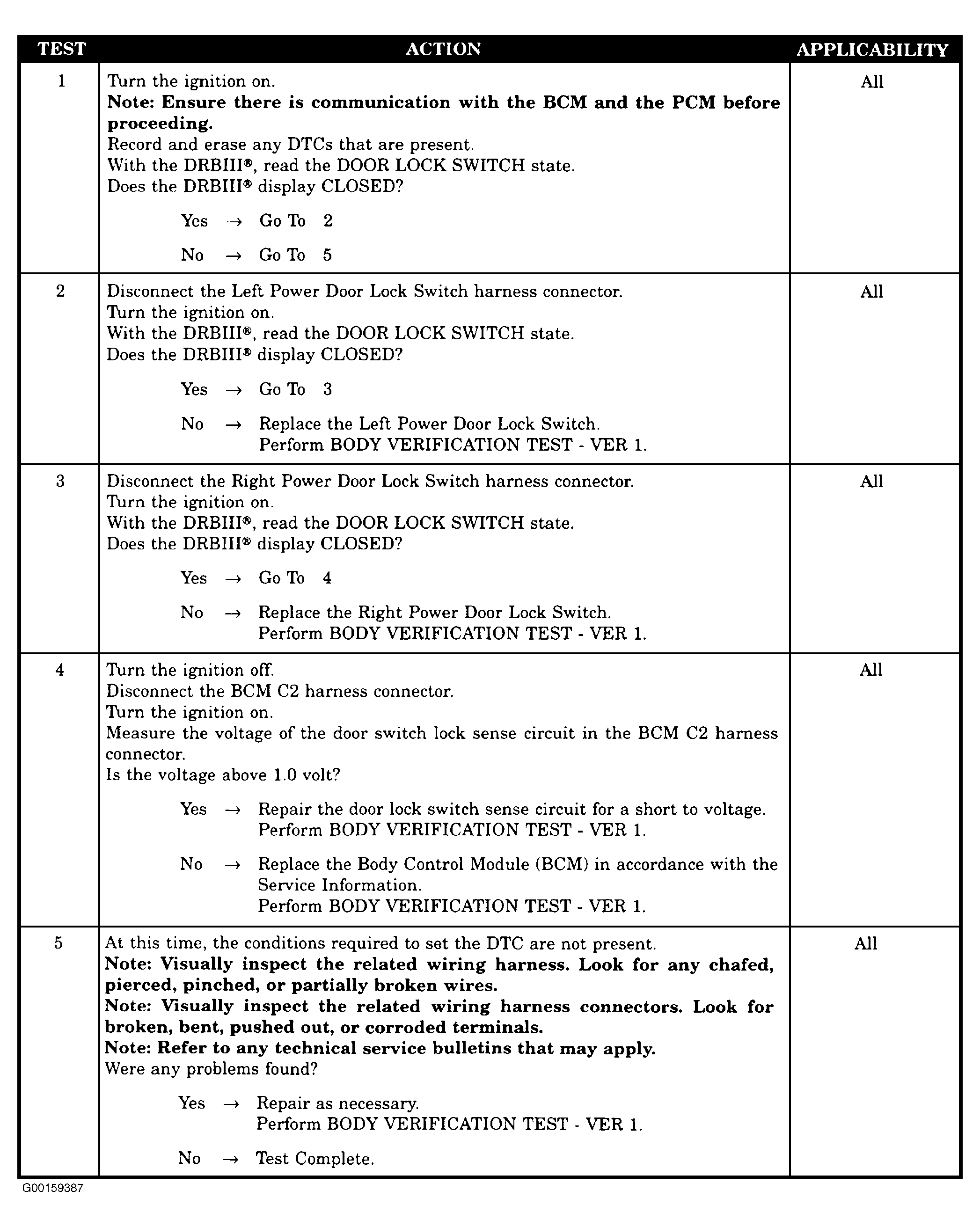

For door lock switch diagnostic procedures, see Figure. For component location, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For wiring diagrams, see WIRING DIAGRAMS .
