Wiring Diagrams: Notes

NOTE: For additional wiring diagrams, connector identification and splice locations, see SYSTEM WIRING DIAGRAMS .

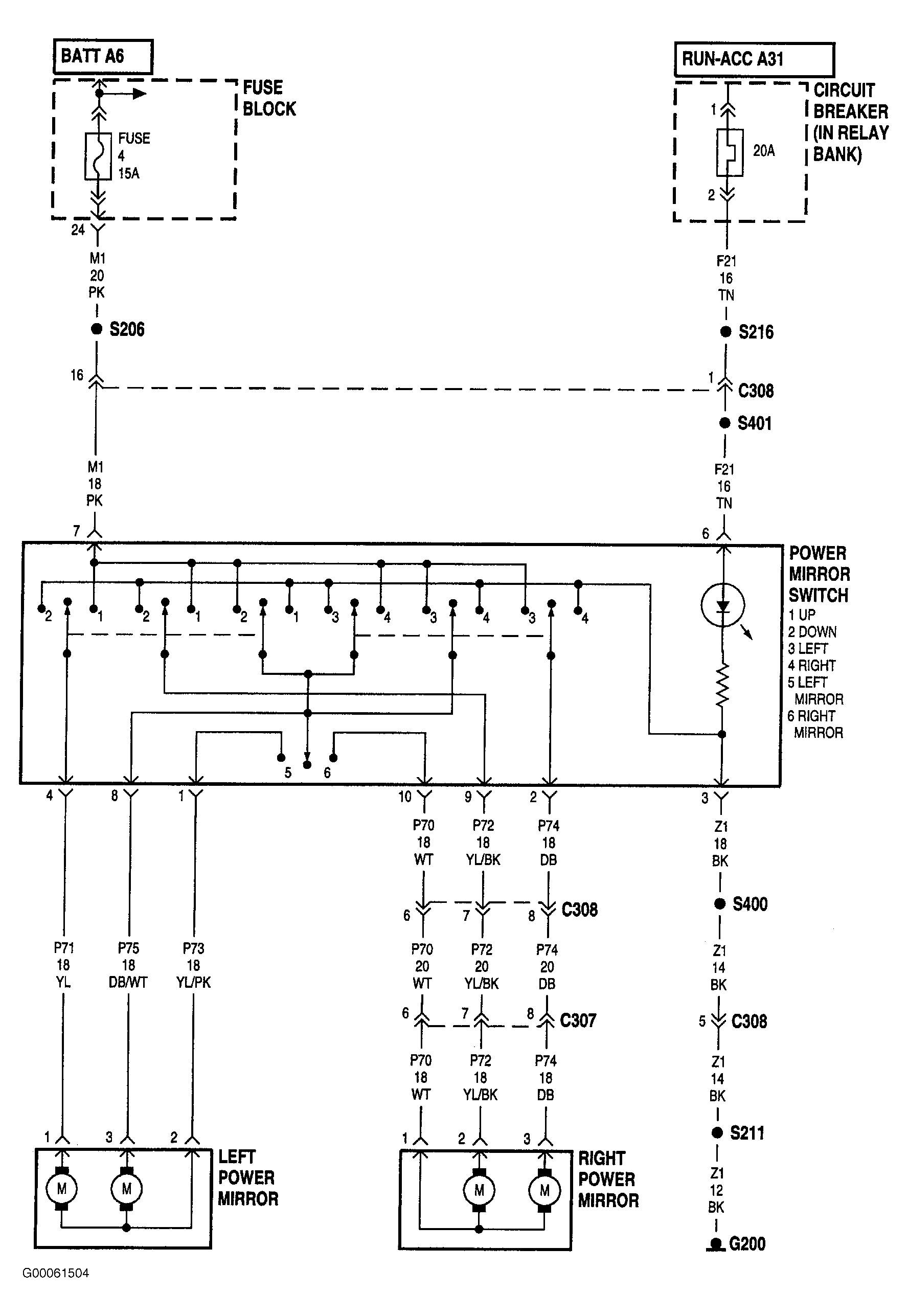

Fig 1: Power Mirrors Wiring Diagram
G00061504Courtesy of CHRYSLER CORP.
