Crankcase Ventilation Systems: Operation

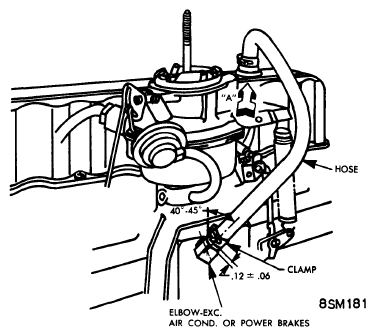

Air enters system through a vented oil filler cap into engine crankcase where fumes are picked up and carried through ventilator valve and into intake manifold.

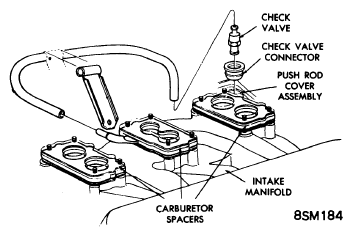

Ventilator valve regulates flow of fumes to intake manifold depending on intake manifold vacuum. Upon reaching intake manifold, fumes are mixed with the fuel mixture and burned in combustion chambers.
