Base Ignition Timing Specifications

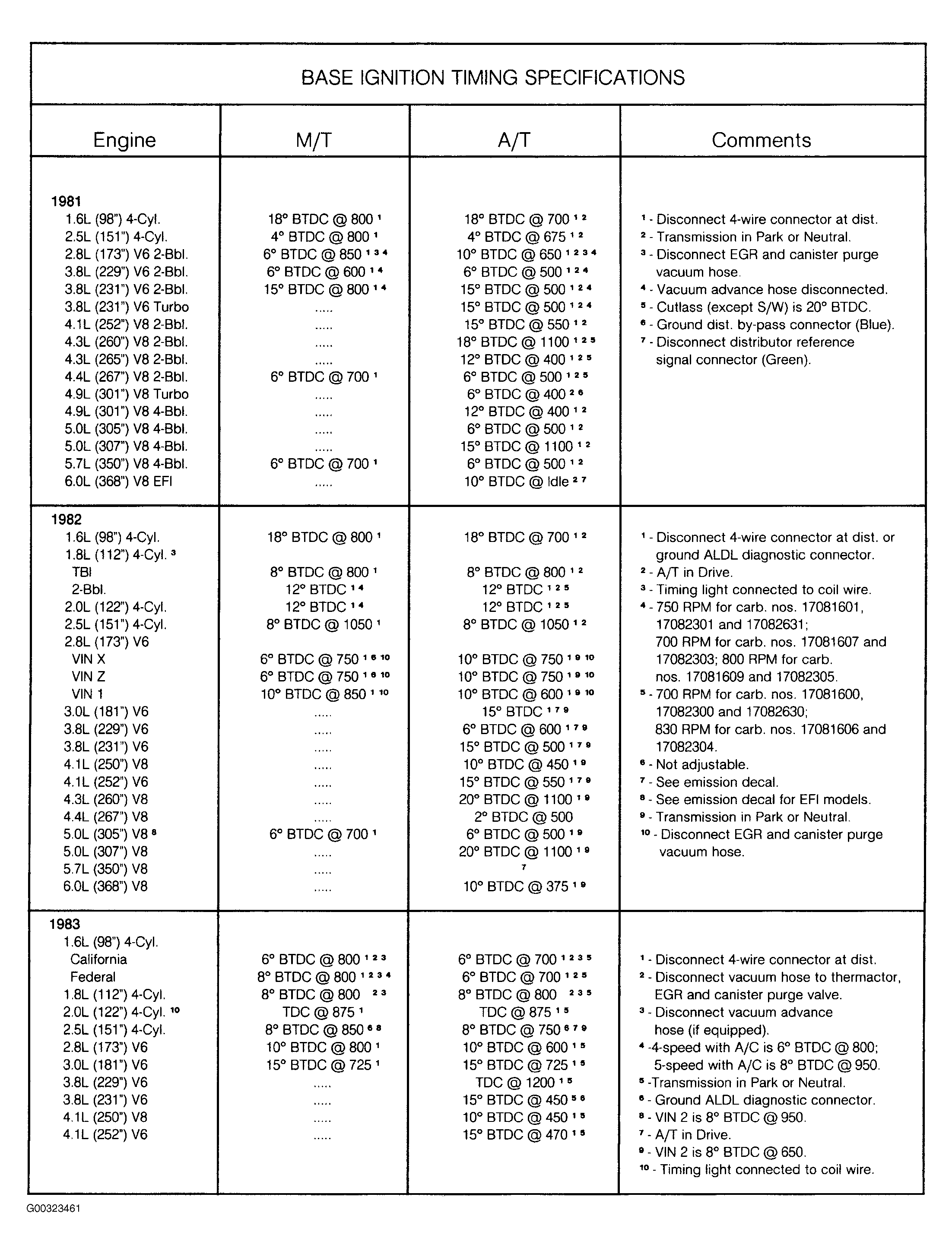

Fig 1:

G00323461

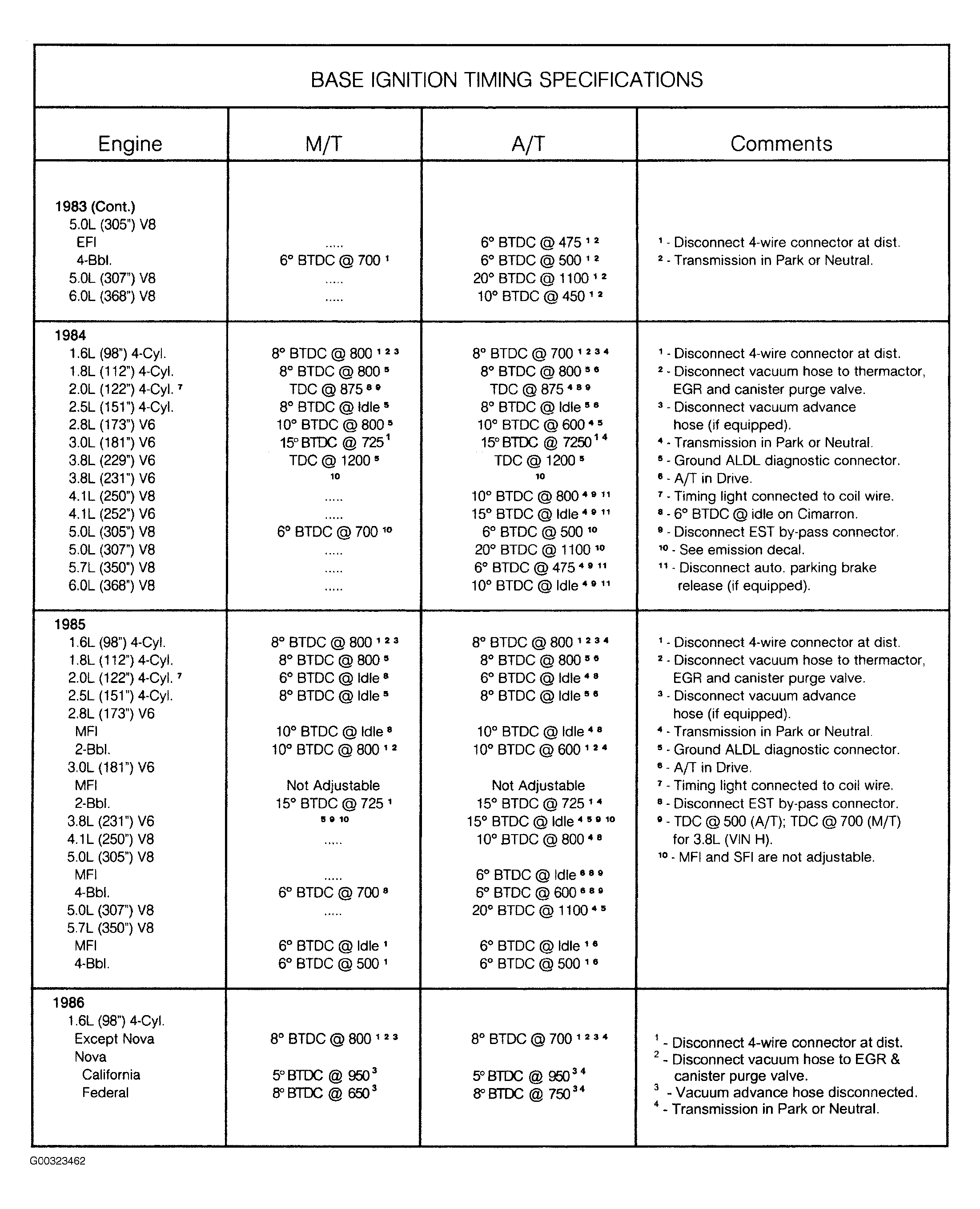

Fig 2:

G00323462

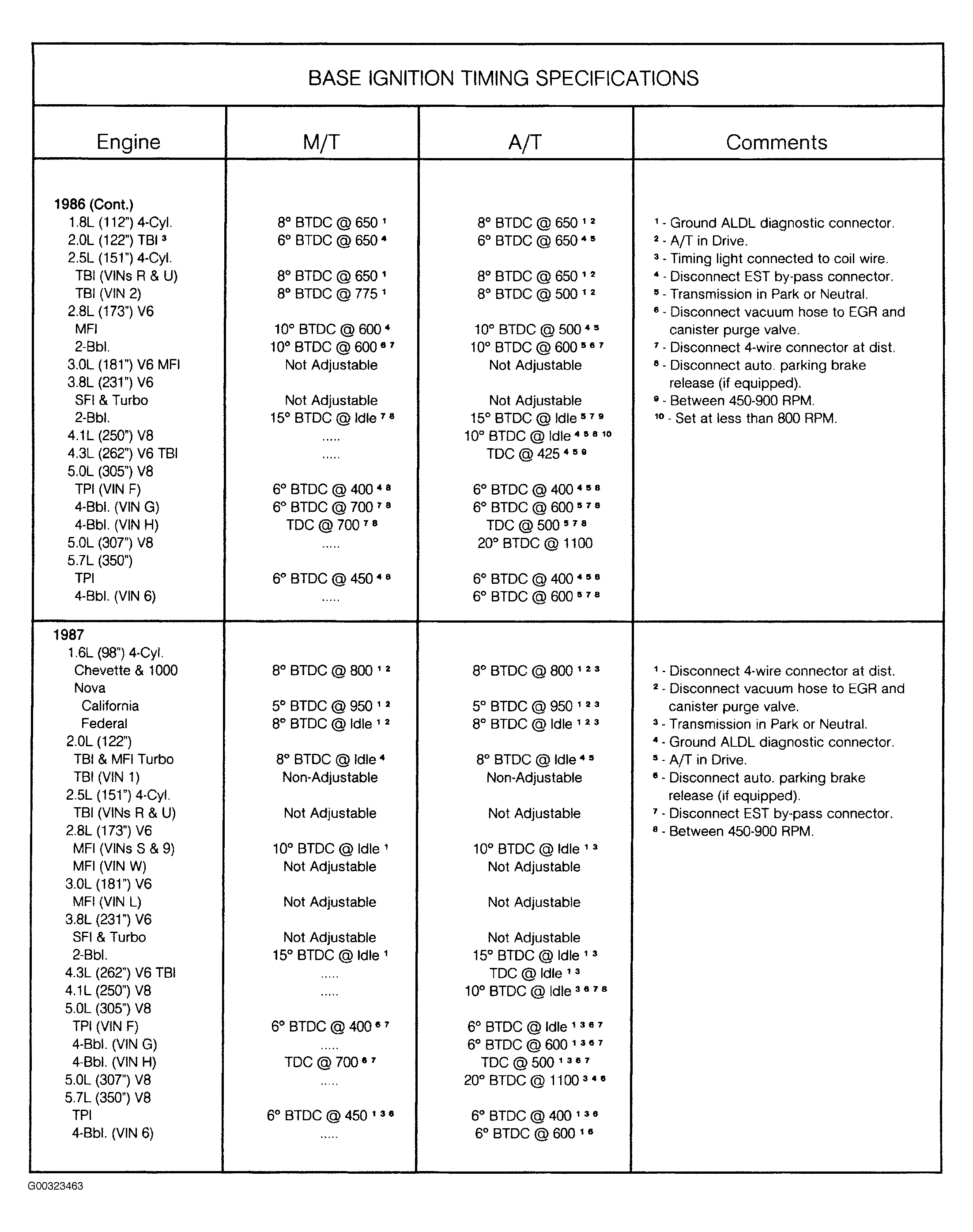

Fig 3:

G00323463

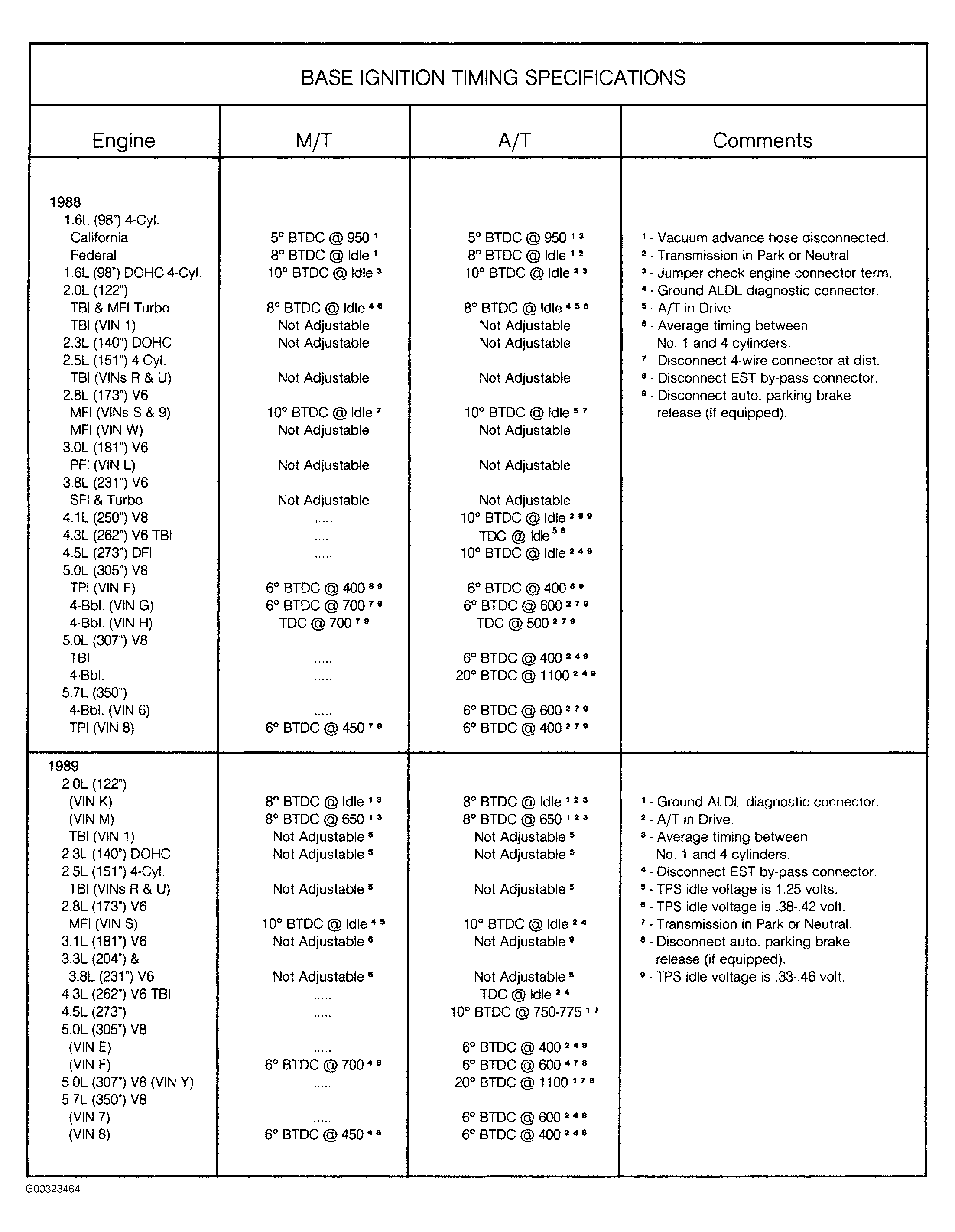

Fig 4:

G00323464

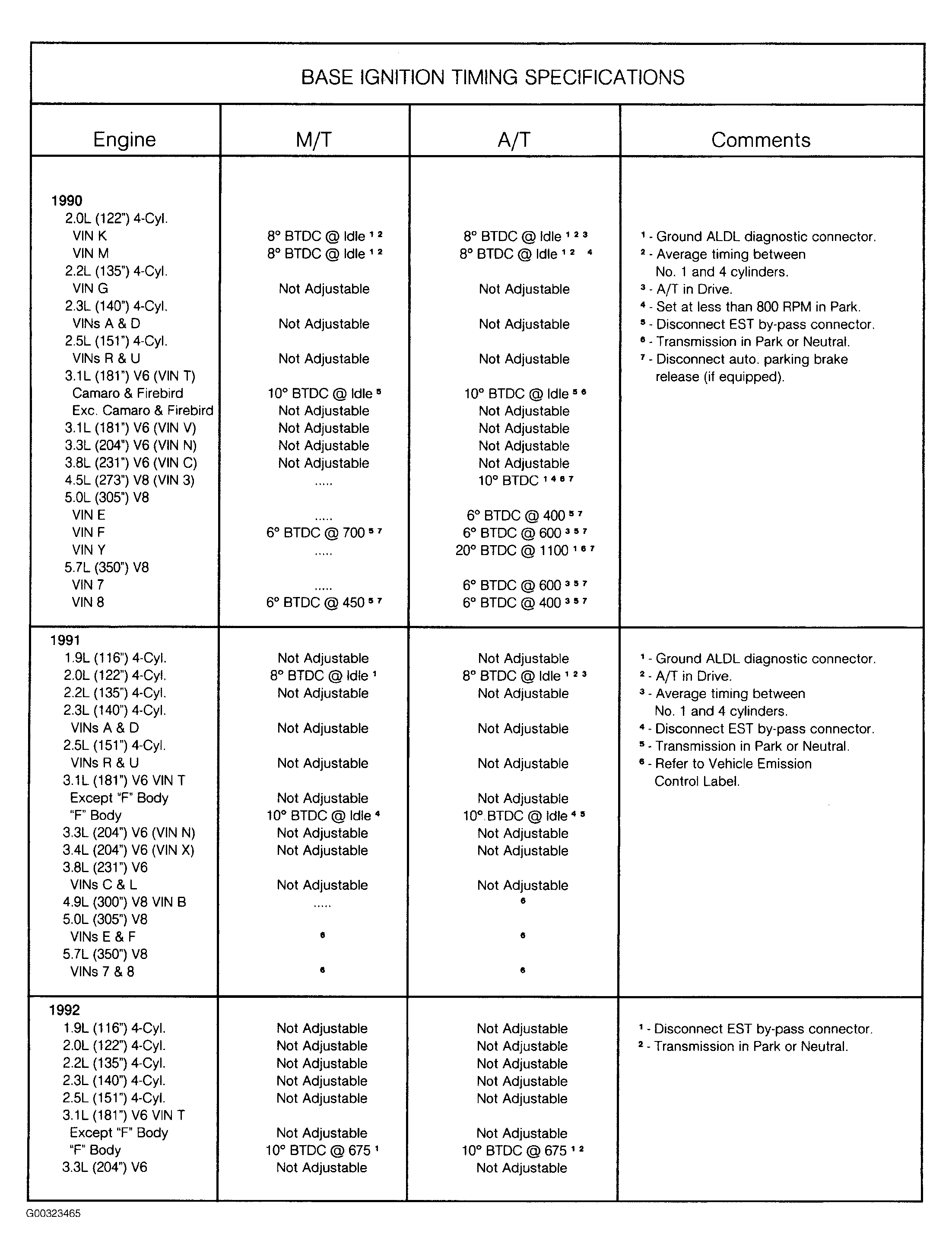

Fig 5:

G00323465

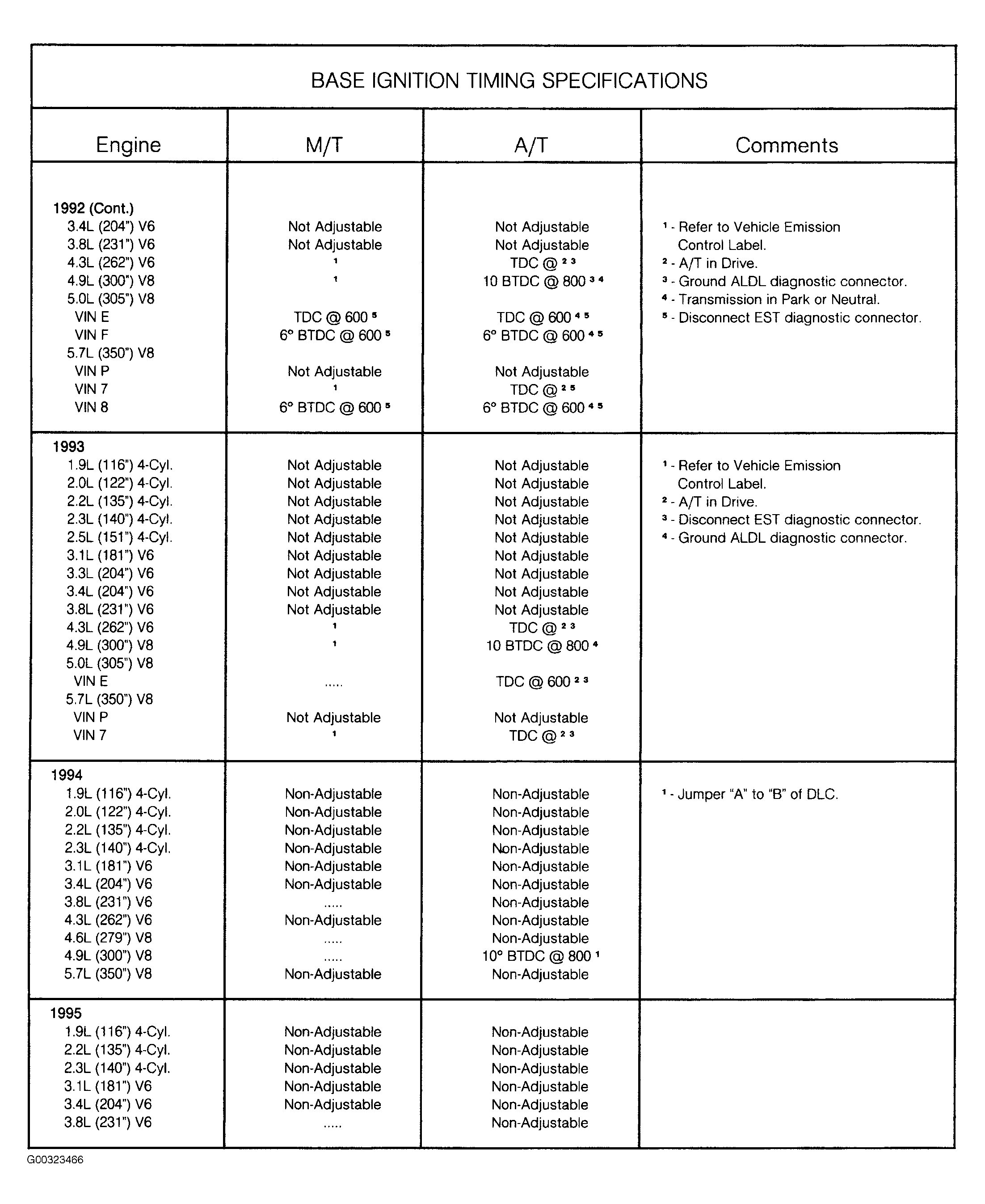

Fig 6:

G00323466

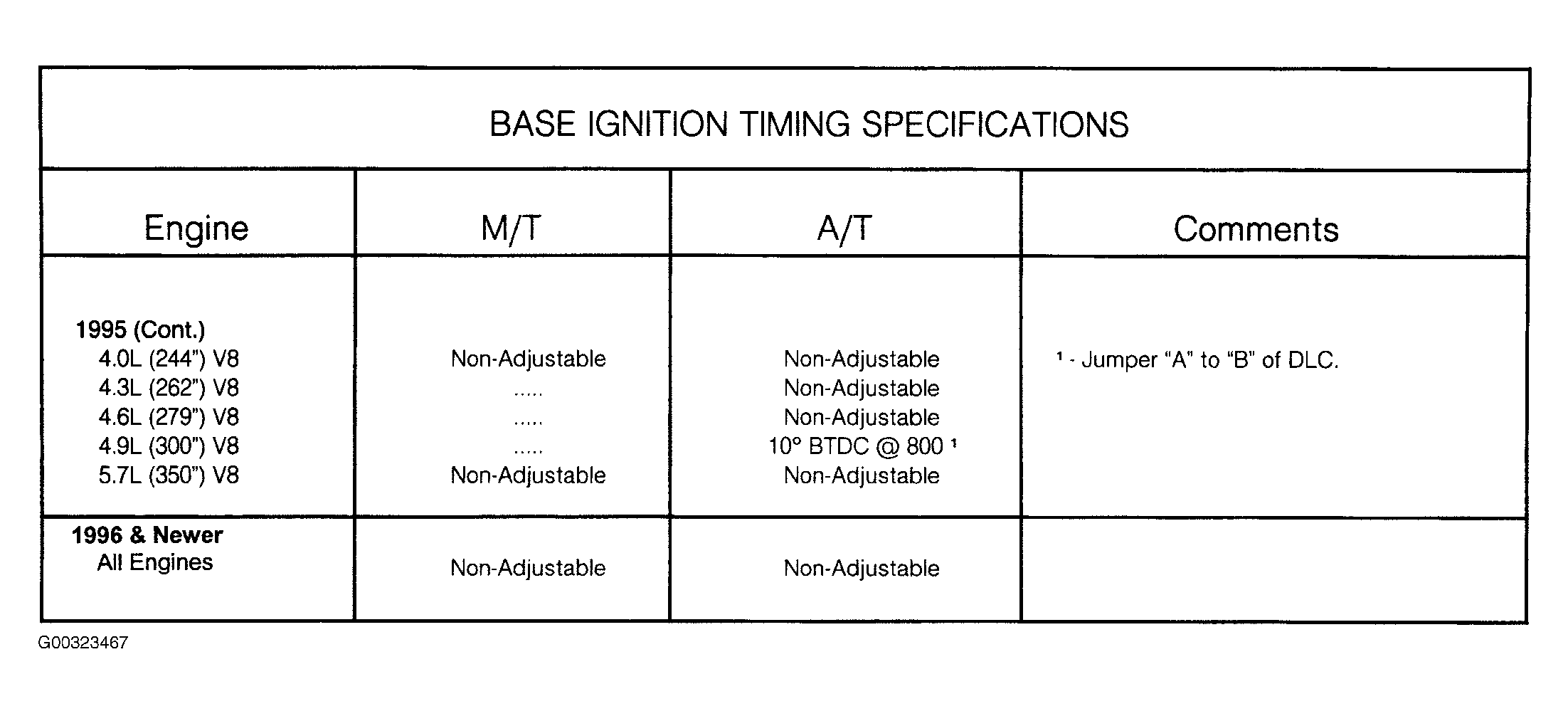

Fig 7:

G00323467
