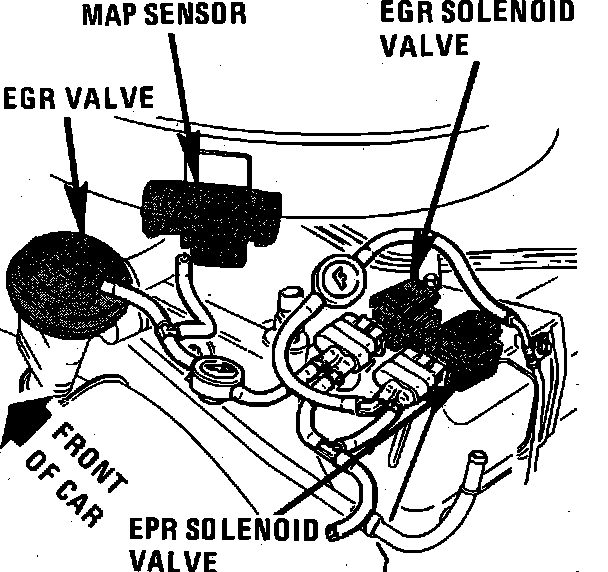

Manifold Pressure/Vacuum Sensor: Locations

LH Rear Of Engine.:




RH Side Of Engine Cowl, Behind Shock Tower

Applicable to: 1982-85 6000 w/Diesel
