Vacuum Pump Assisted Systems

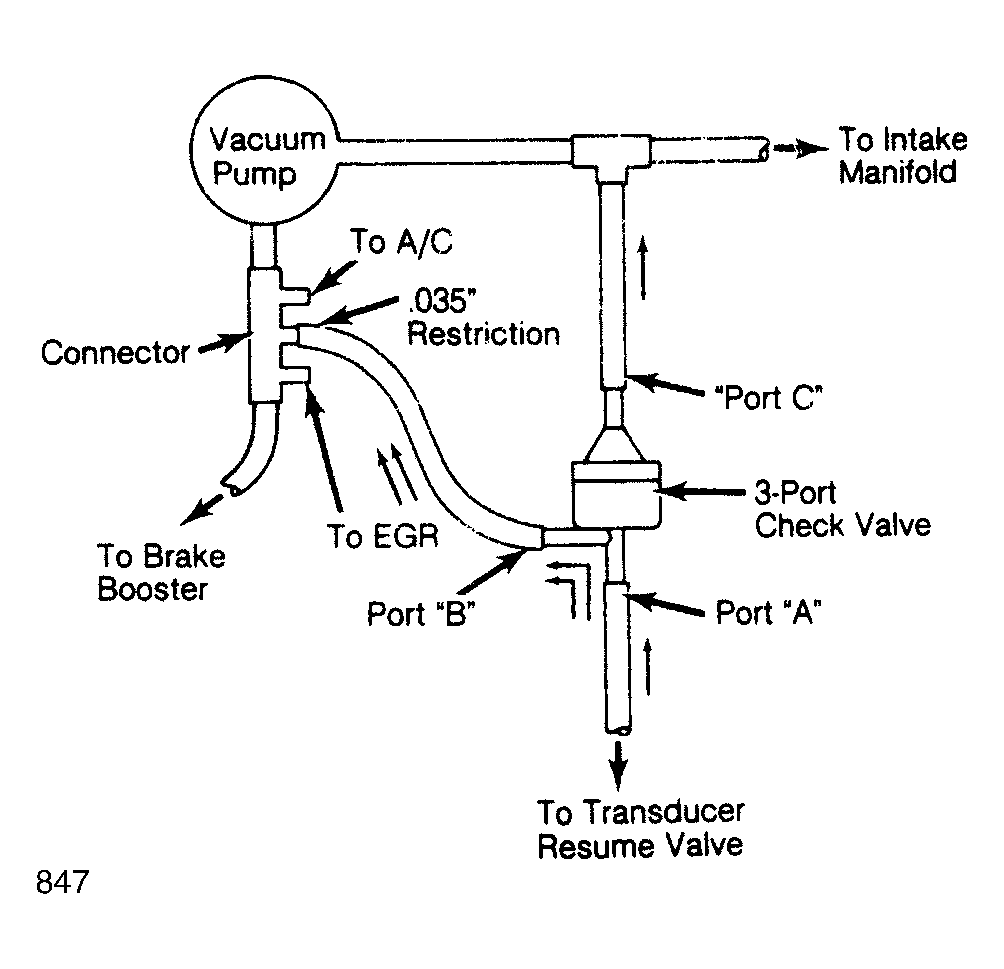

Blow low pressure air into port "A" while port "B" is plugged and then plug port "A" and blow into port "B". See Fig 1. In both cases, air should exit at port "C". If not, clean or replace check valve. To check air flow in opposite direction, blow air into port "C". No air should exit from ports "A" or "B".
