Chart 11: Idle Air Control

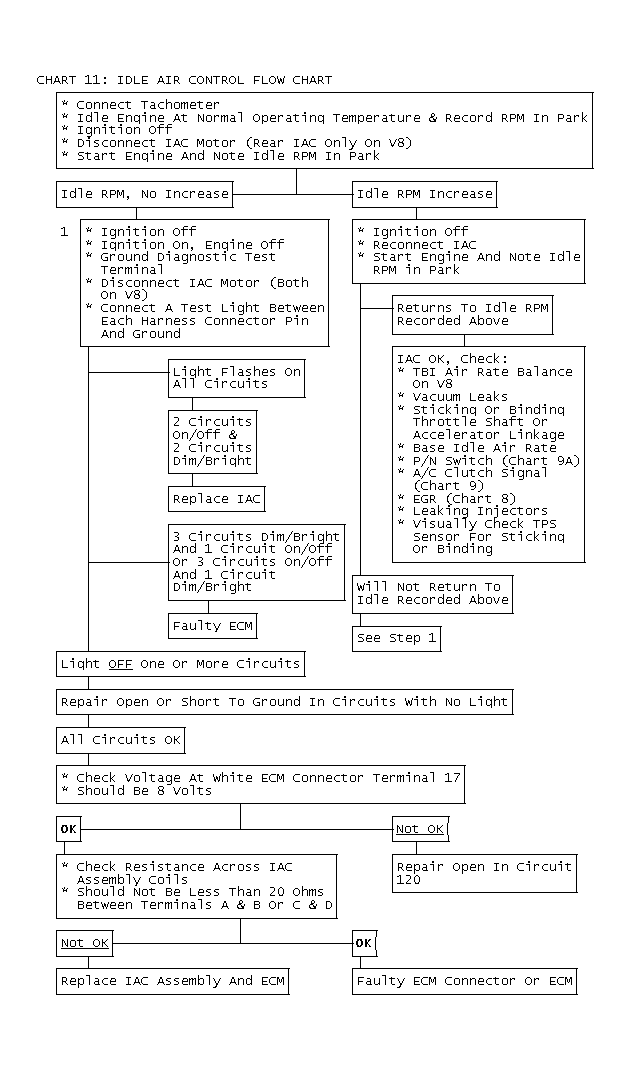

Fig 1: Chart 11: Idle Air Control Flow Chart

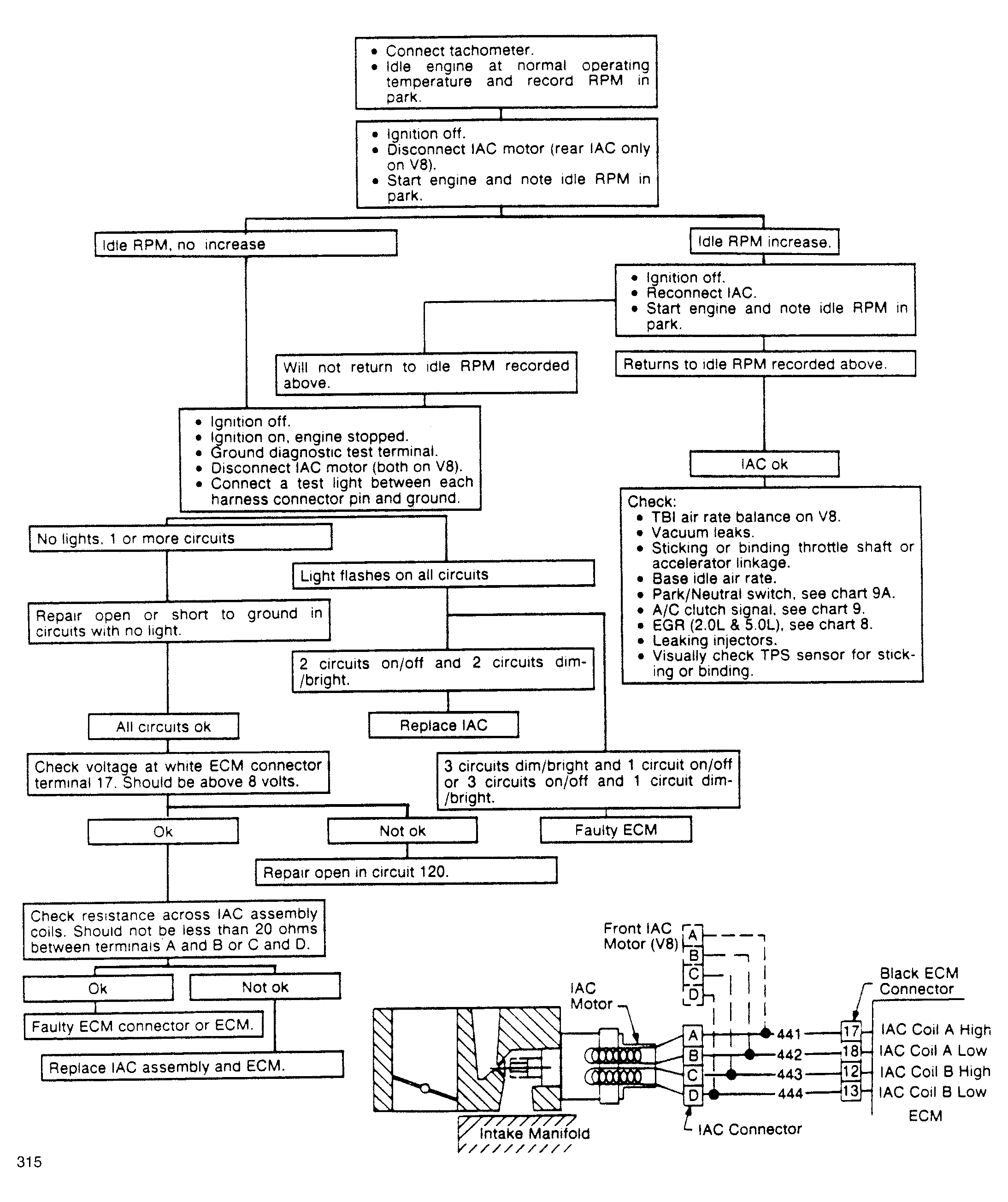

Fig 2: Chart 11: Idle Air Control Flow Chart
