Chart 2: No "Check Engine" Light

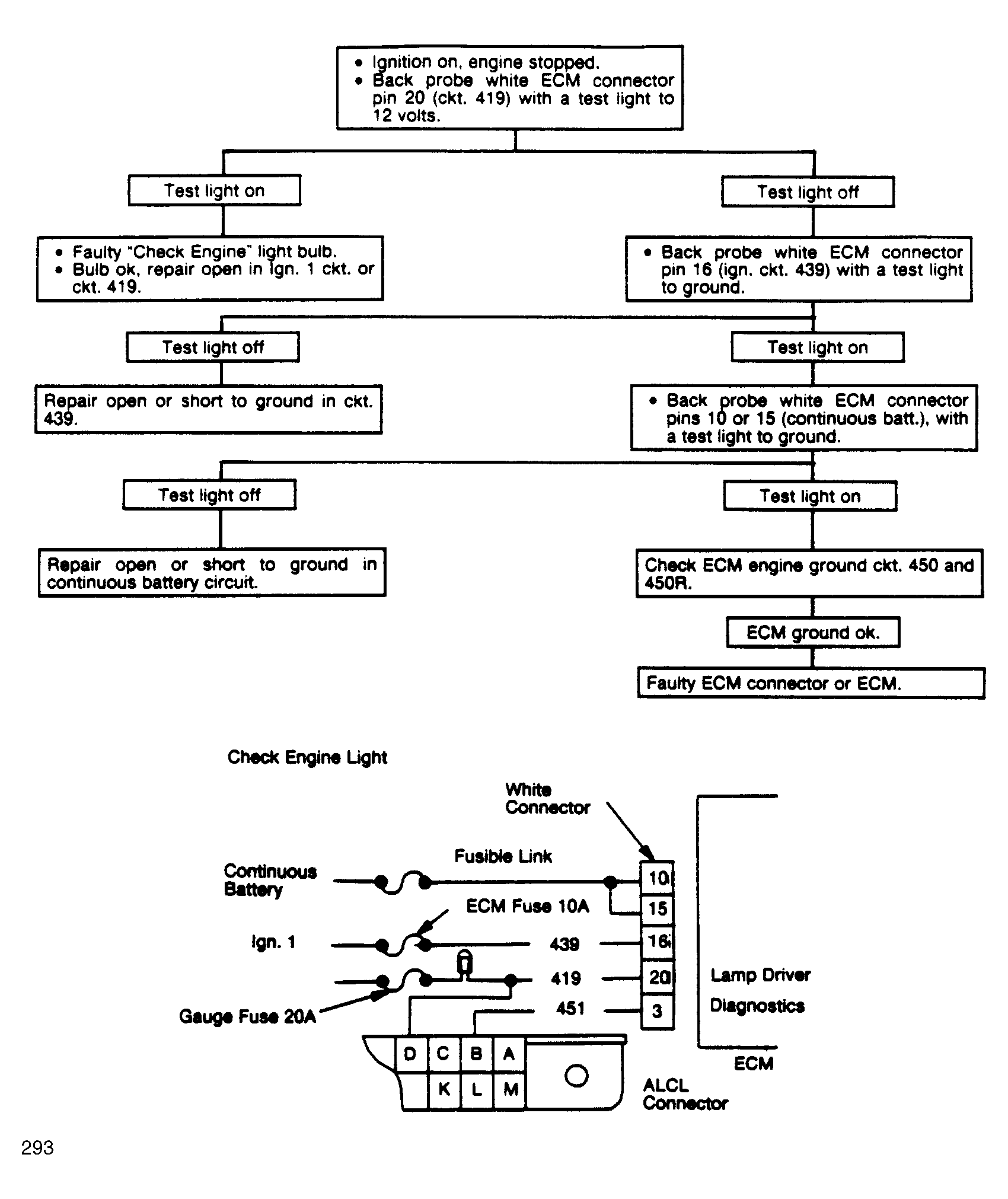

Fig 1: Chart 2: No "CHECK ENGINE" Light Flow Chart
G293
Fig 2: CHART 2: NO "CHECK ENGINE" LIGHT FLOW CHART
GB0045640
