Home >> Pontiac >> 1983 >> 2000 Base, 2D Hatchback, 2.0 P >> Repair and Diagnosis >> Engine Performance >> System >> TBI Tests W/Codes >> Wiring Diagrams
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Wiring Diagrams

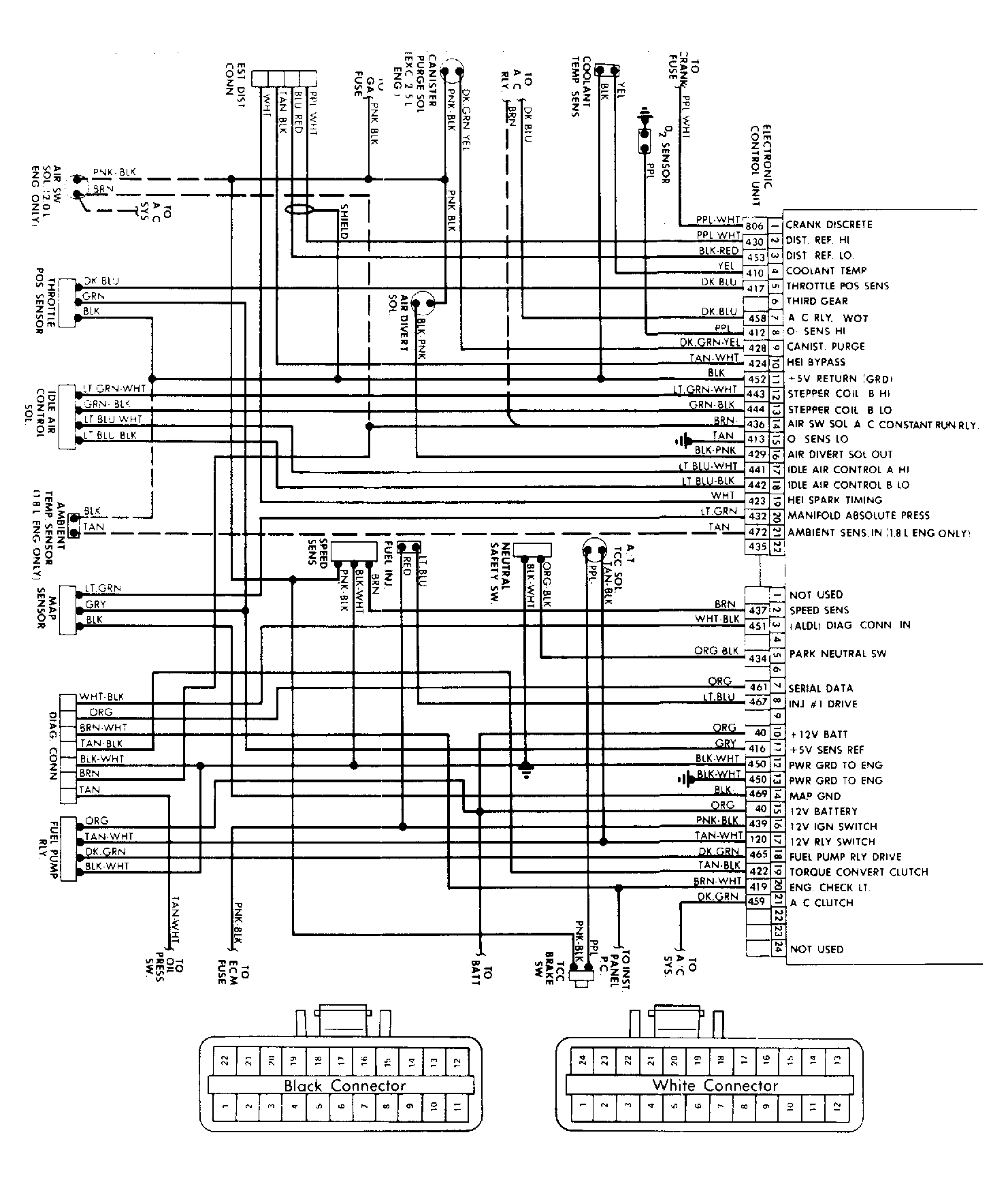

Fig 1: EFI (Exc. 5.0L) System Wiring Diagram
G220

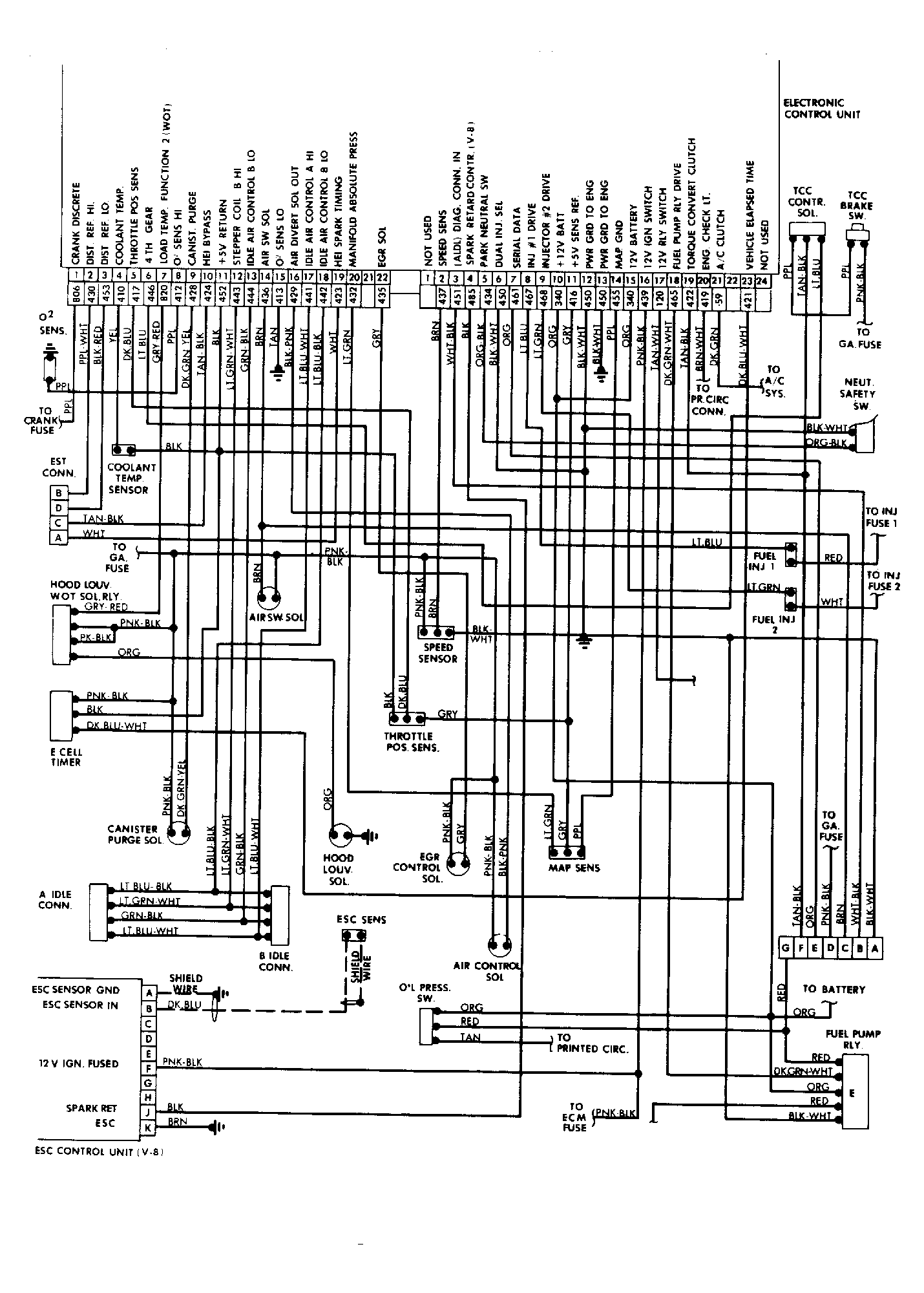

Fig 2: EFI (5.0L) System Wiring Diagram (Camaro & Firebird Only)
G221
