Air Injection: Testing and Inspection

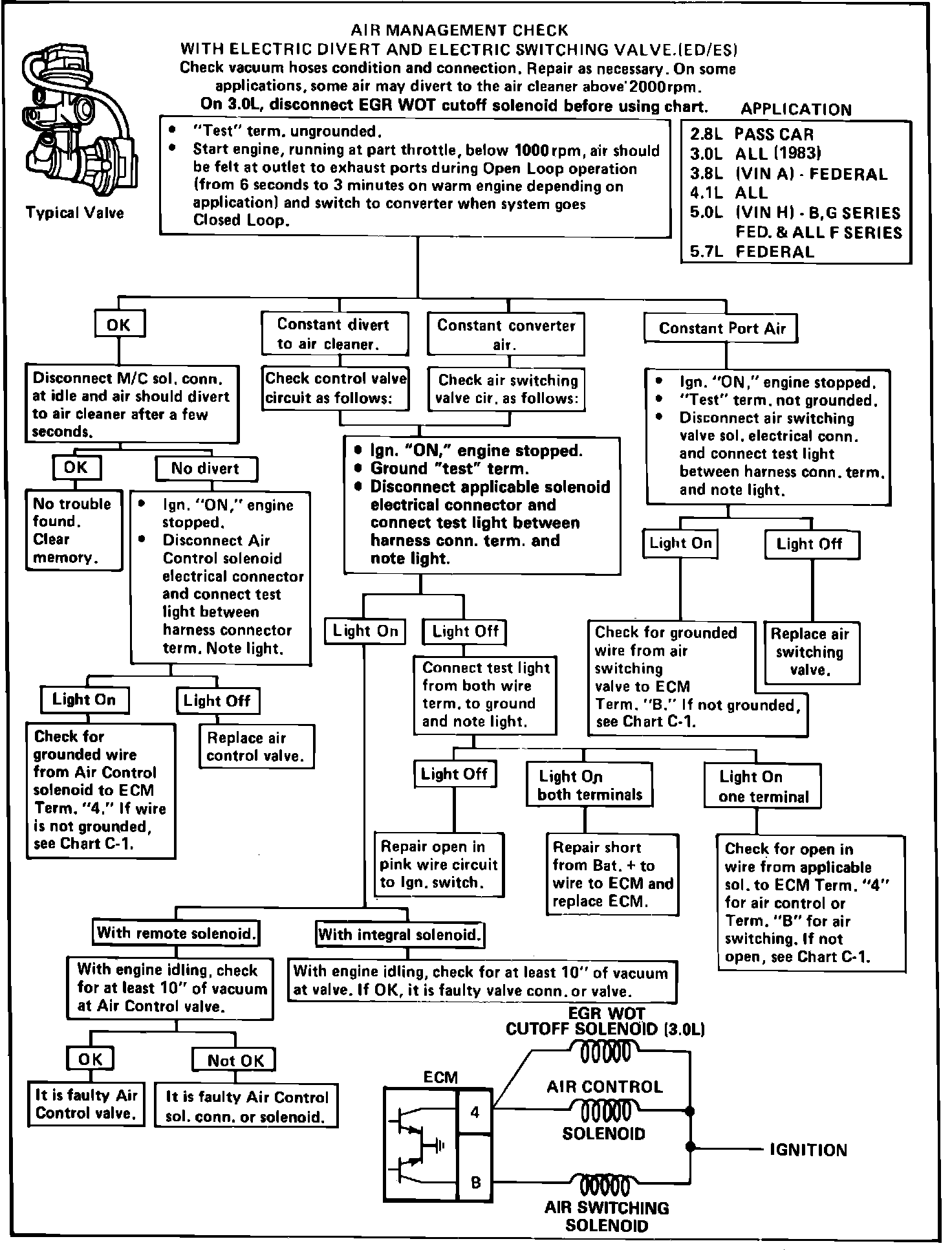

Fig. 015 CHART C-6A AIR MANAGEMENT CHECK (EDES) VALVE:

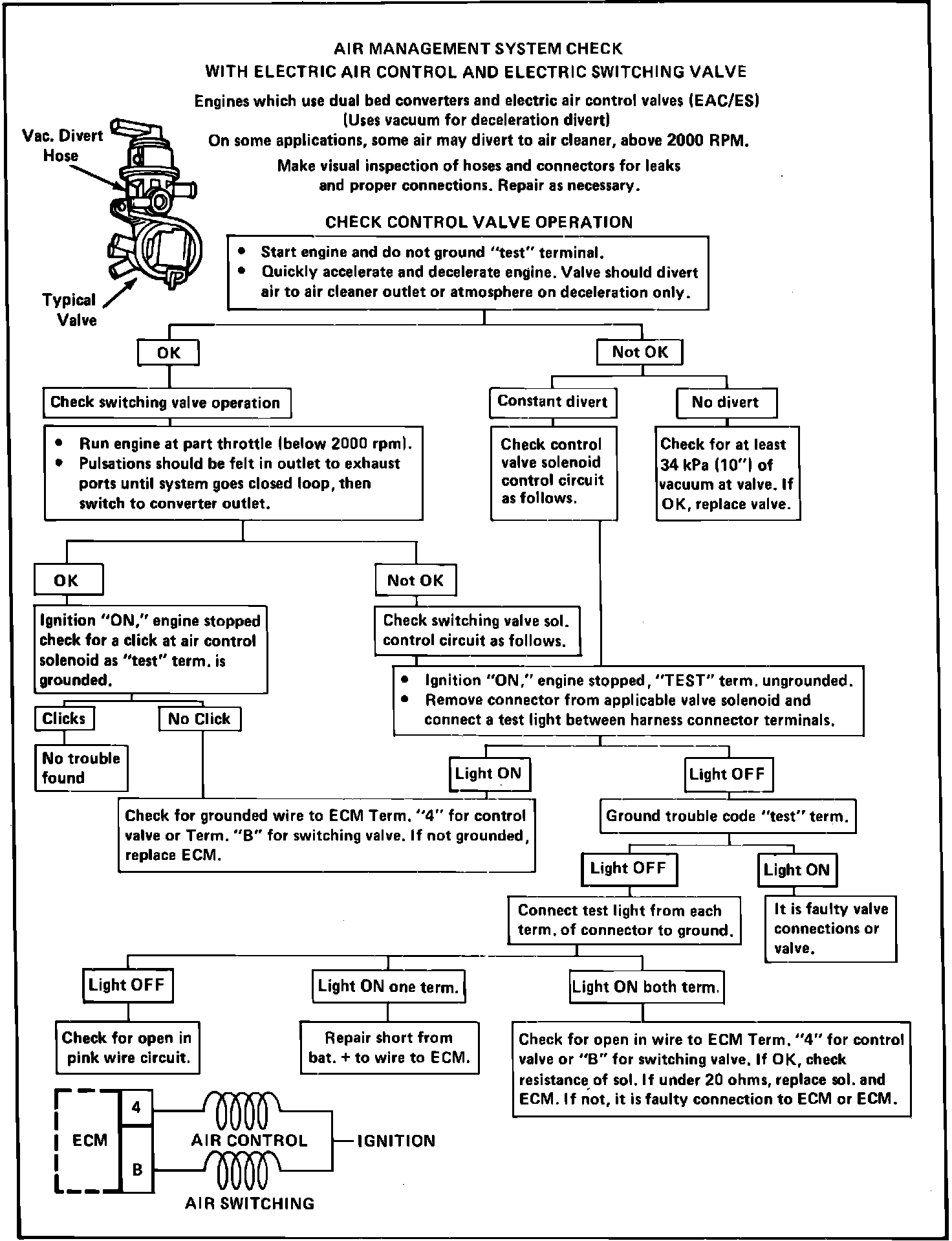

Fig. 016 CHART C-6AA AIR MANAGEMENT CHECK:
