Fuel Meter Cover

  1. Remove 5 cover-to-meter body screws and lock washers. Lift off fuel meter cover with fuel pressure regulator assembly (rear unit) or accumulator assembly (front unit) attached. DO NOT  remove fuel meter cover gasket at this time. See Figure .
    WARNING: DO NOT  remove 4 screws attaching pressure regulator (accumulator) to fuel meter cover. The regulator (accumulator) includes a spring under heavy tension which may cause personal injury if released. Fuel meter cover and pressure regulator (accumulator) are serviced as an assembly only. DO NOT  immerse assembly in any type of cleaning solvent.
  2. Remove fuel pressure regulator (rear unit) or accumulator (front unit) dust seal from fuel meter body.

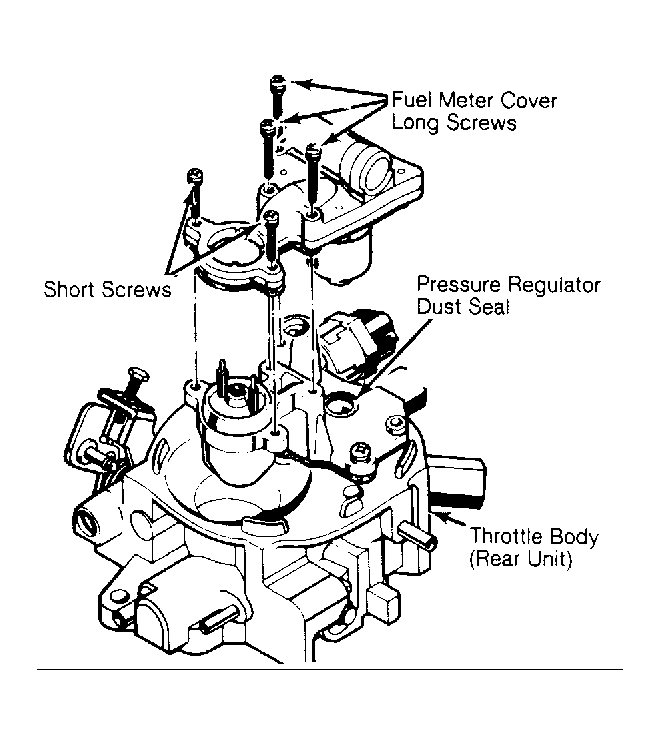

Fig 1: Fuel Meter Cover Assembly Removal Do not remove fuel meter cover gasket at this time.
