A/C Compressor Cut-Off Switch

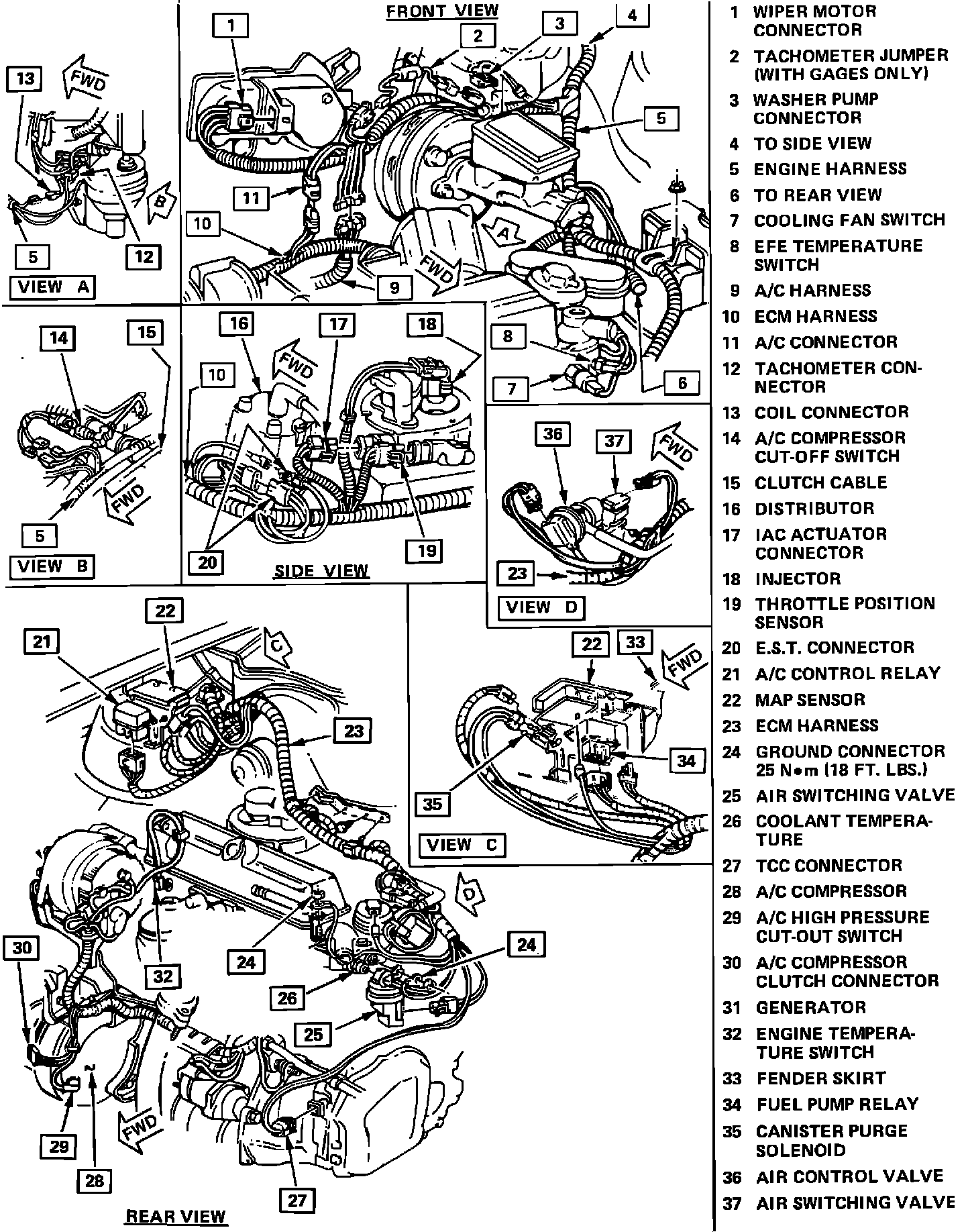

Engine & Engine Compartment Wiring.:




Refrigerant Line LH Side Of Engine

Applicable to: 1983 2000 4-121/2.0L Engine
