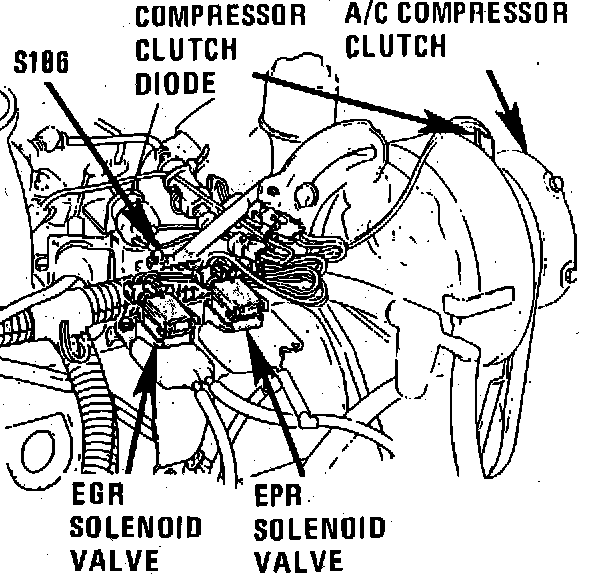

Compressor Clutch Diode

RH Front Of Engine.:




Taped Inside A/C Clutch Compressor

Applicable to: Pontiac w/V8-350/5.7L Diesel Engine
