Chart C1D - Map Output Check

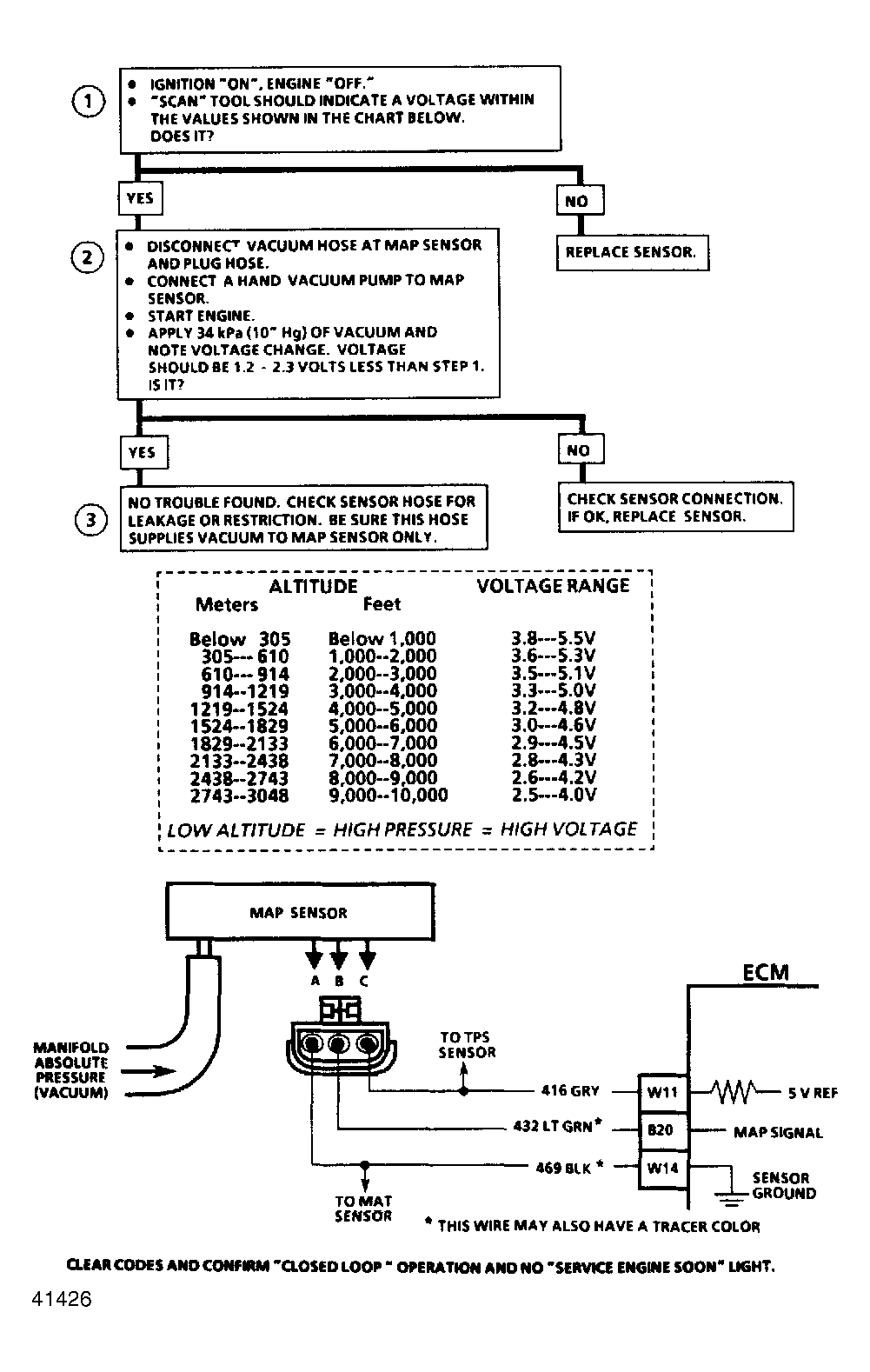

Fig 1: Chart C1D, MAP Output Check Flow Chart
Fig 2: Chart C1D, MAP Output Check Flow Chart
