Chart C1E - P/S Pressure Switch Signal Check

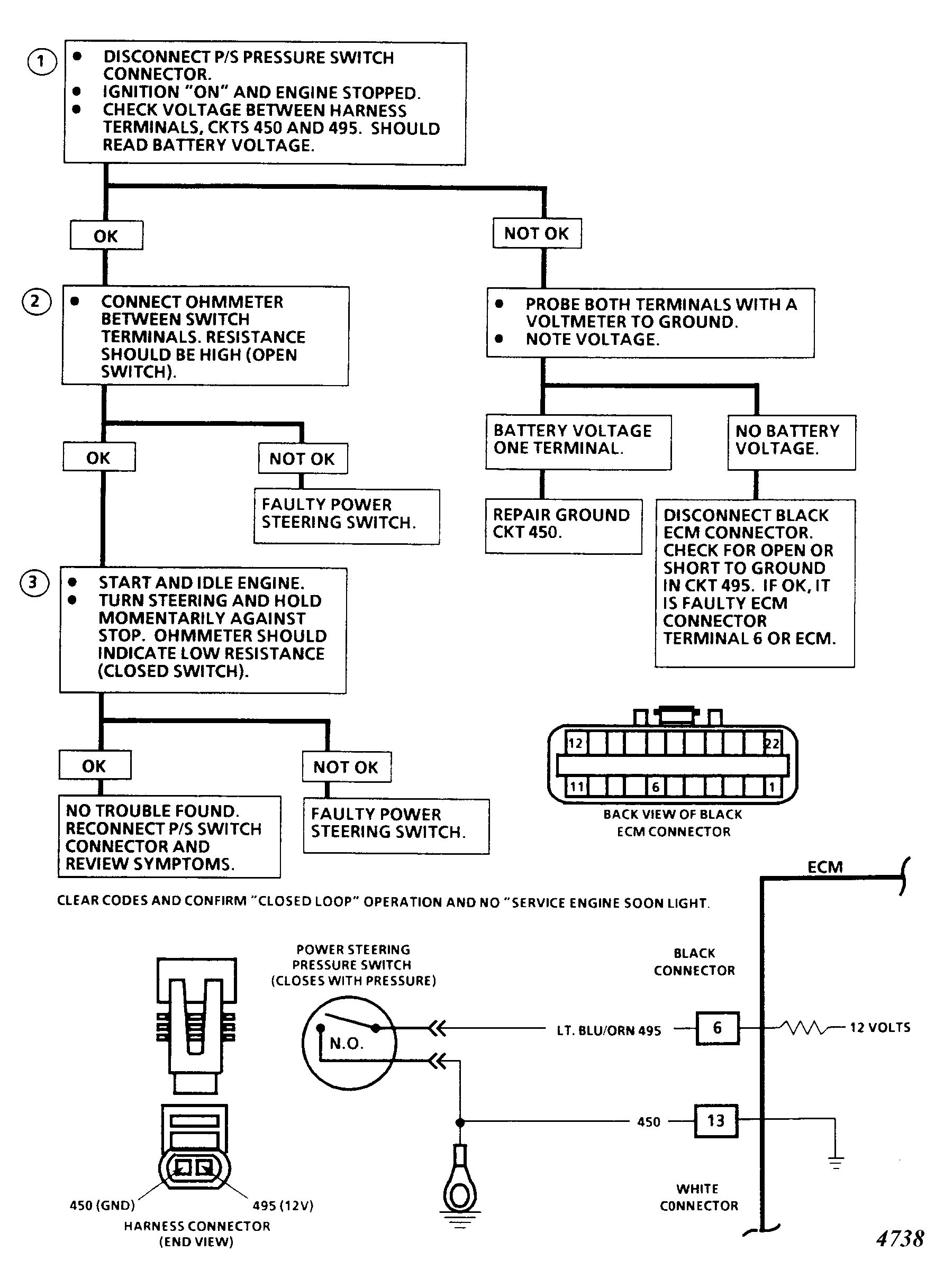

Fig 1: Chart C1E, P/S Pressure Switch Signal Flow Chart
G4738
Fig 2: Chart C1E, P/S Pressure Switch Signal Flow Chart
GB0048030
