Chart C2D - Map Output Check

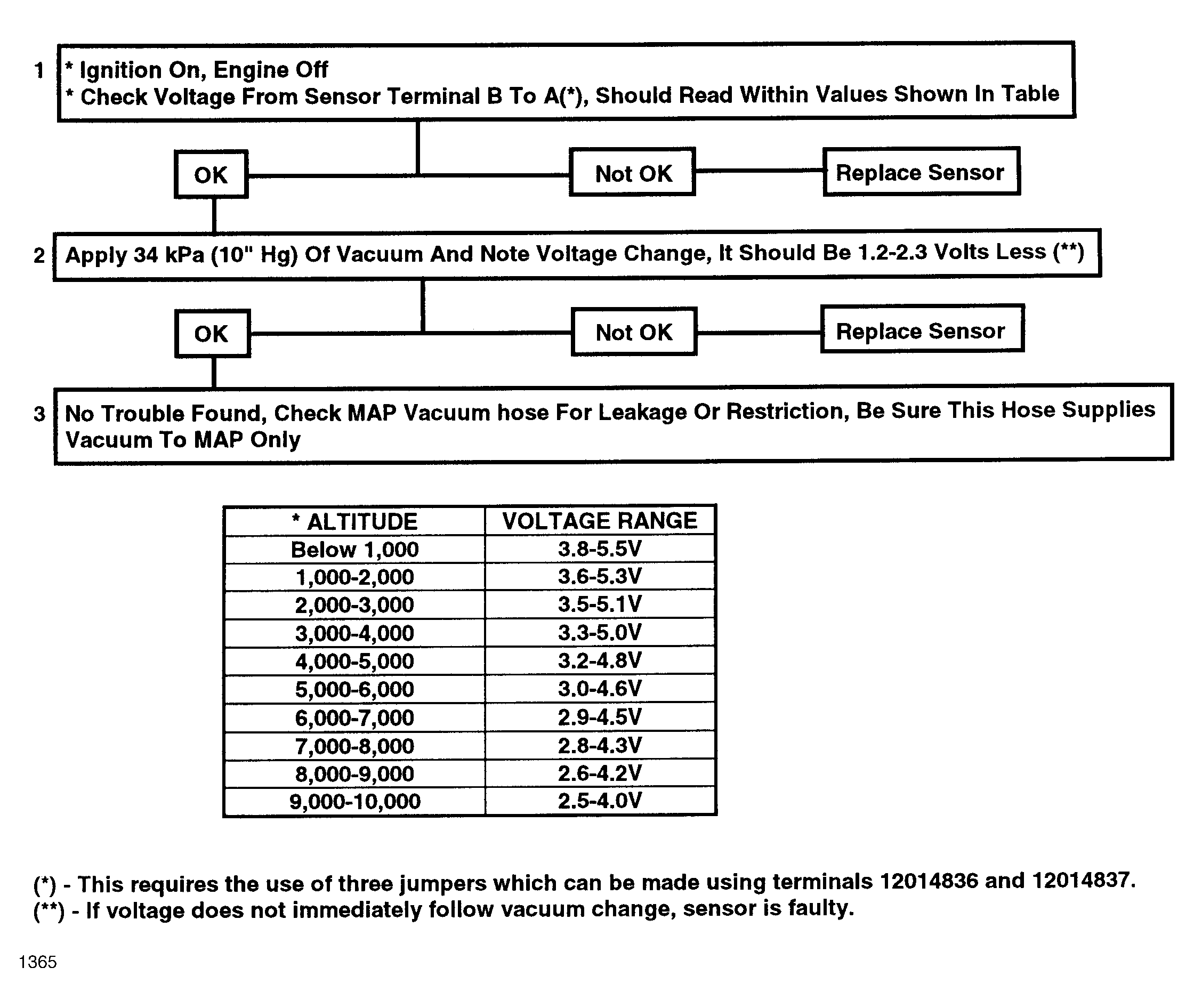

Fig 1: Chart C2D, MAP Output Check Flow Chart
G1365
Fig 2: Chart C2D, MAP Output Check Flow Chart
GB0048034

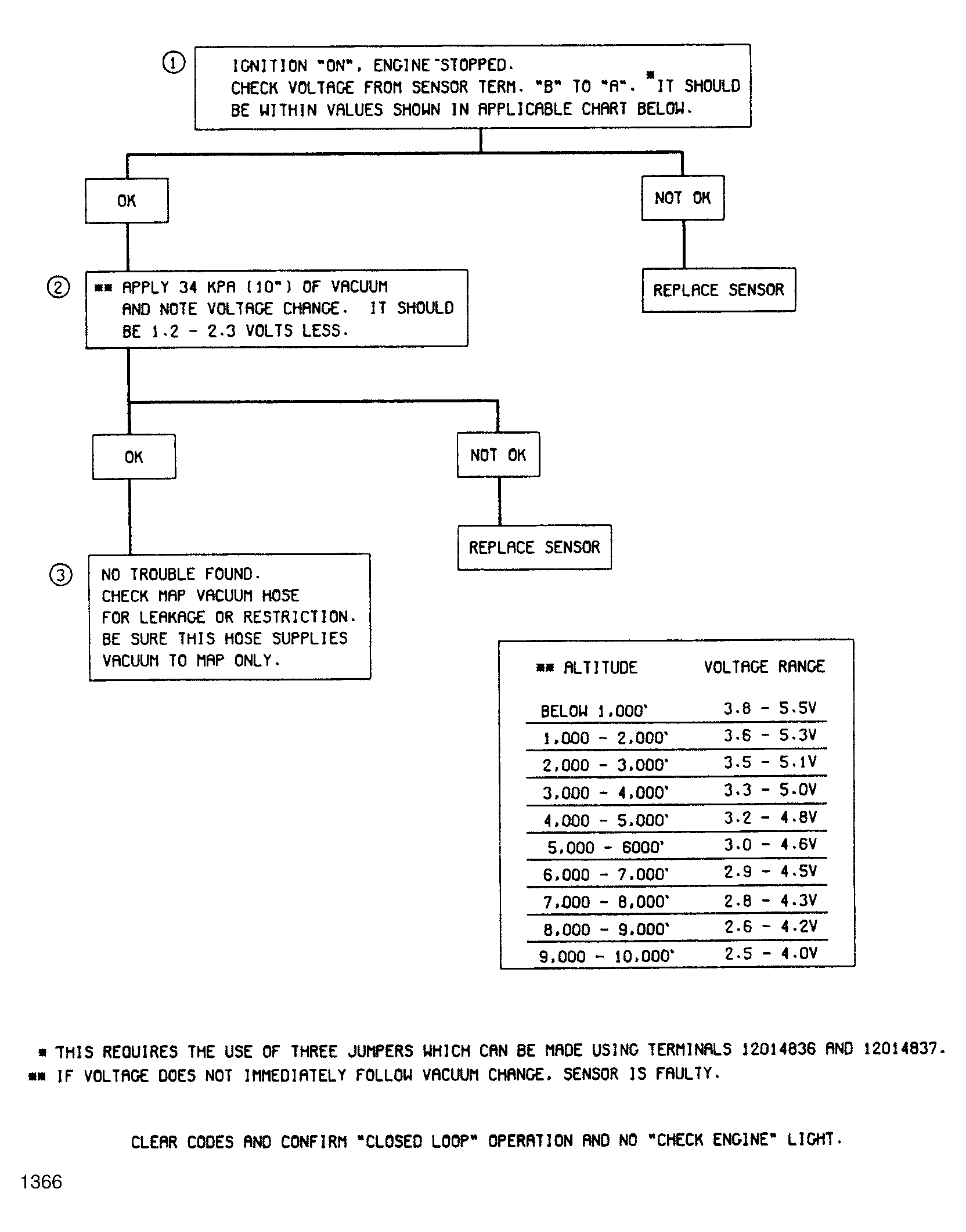

Fig 3: Chart C2D, MAP Output Check Ckt Diagram
G1366
