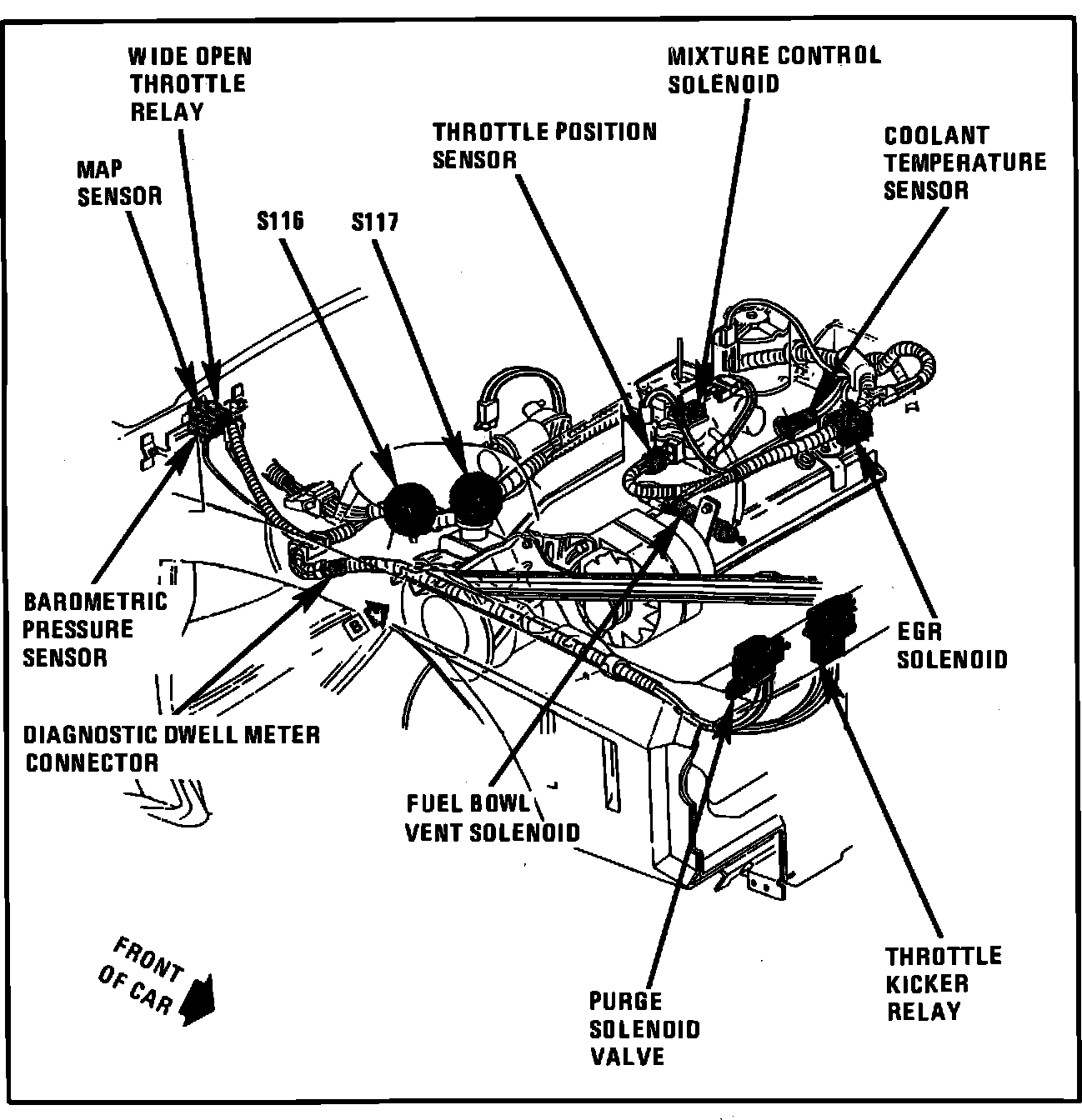

EGR Control Solenoid: Locations

RH Front Of Engine.:




LH Front Of Engine Above Valve Cover

Applicable to: 1984-85 6000 w/V6-173 VIN X
