Powertrain Management: Locations

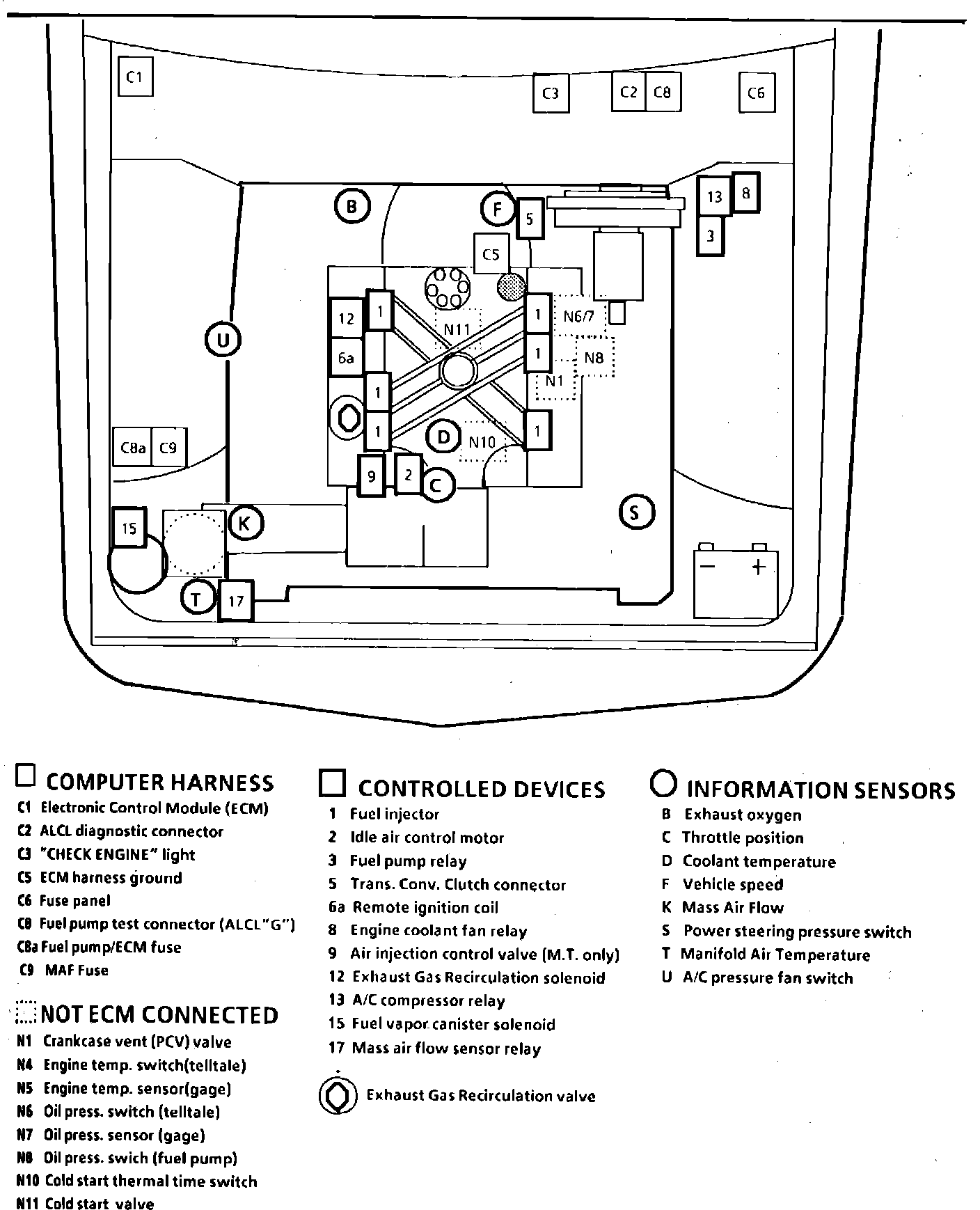

Fig. 18 Emission Component Location. 1985 Firebird W/V6-173/2.8L, PFI:
