Emission Control Systems: Locations

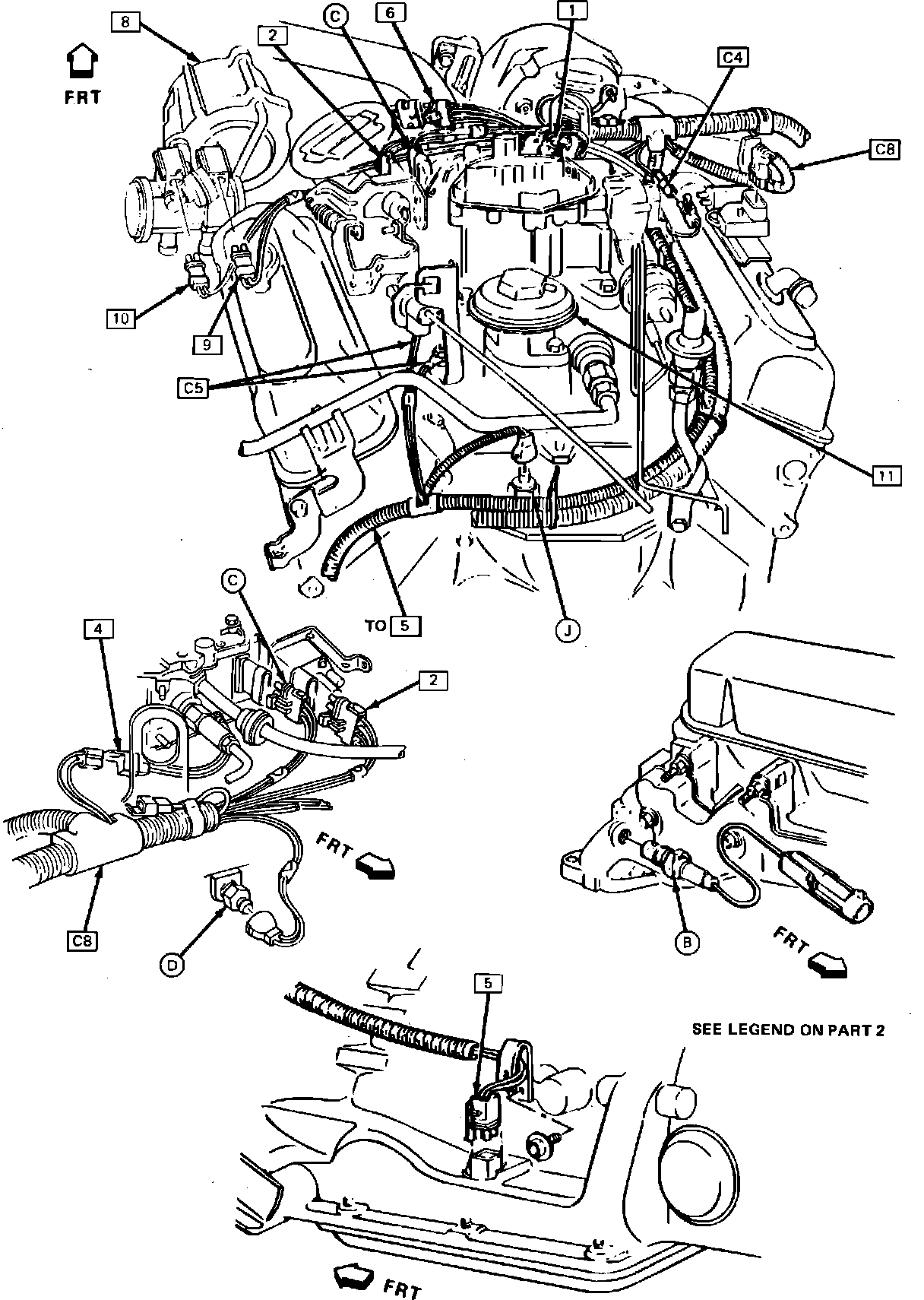

Fig. 27a Emission Component Location. 1985 Models W/V6-231/3.8L, 2 Bbl. (Part 1 of 2):

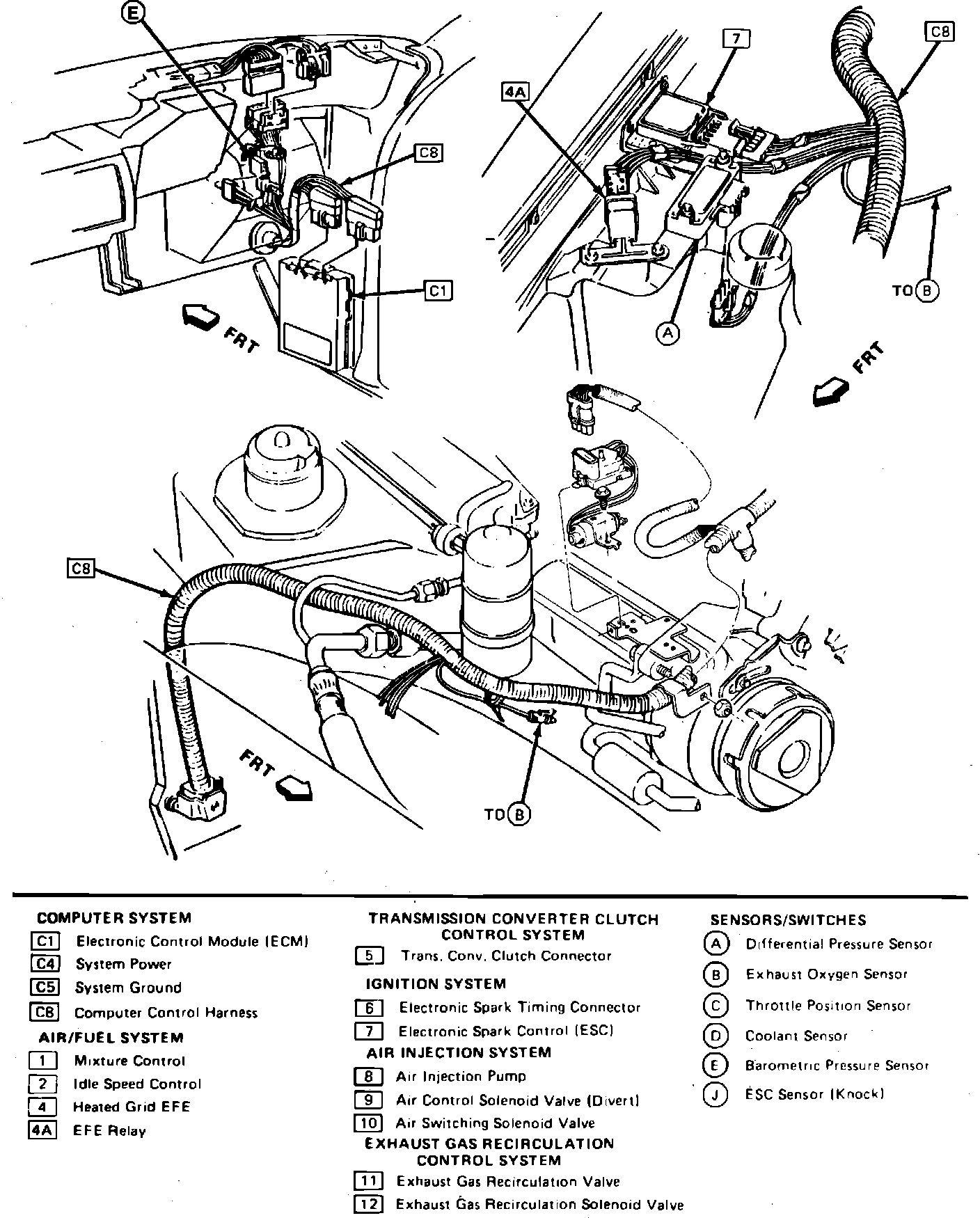

Fig. 27b Emission Component Location. 1985 Models W/V6-231/3.8L, 2 Bbl. (Part 2 of 2):
