Throttle Position Sensor (TPS)

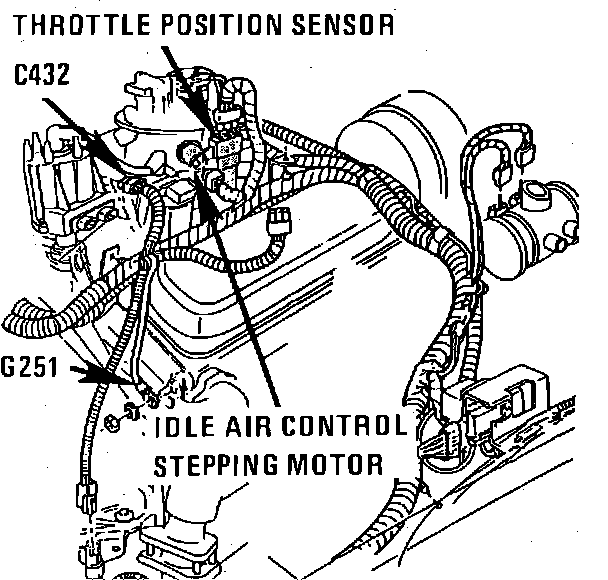

Top Of Engine.:




Top RH Side Of Engine

Applicable to: Pontiac w/V8-305/5.0L Engine

RH Side Of Throttle Body.:




Top RH Side Of Engine

Applicable to: Pontiac w/V8-262/4.3L Diesel Engine
