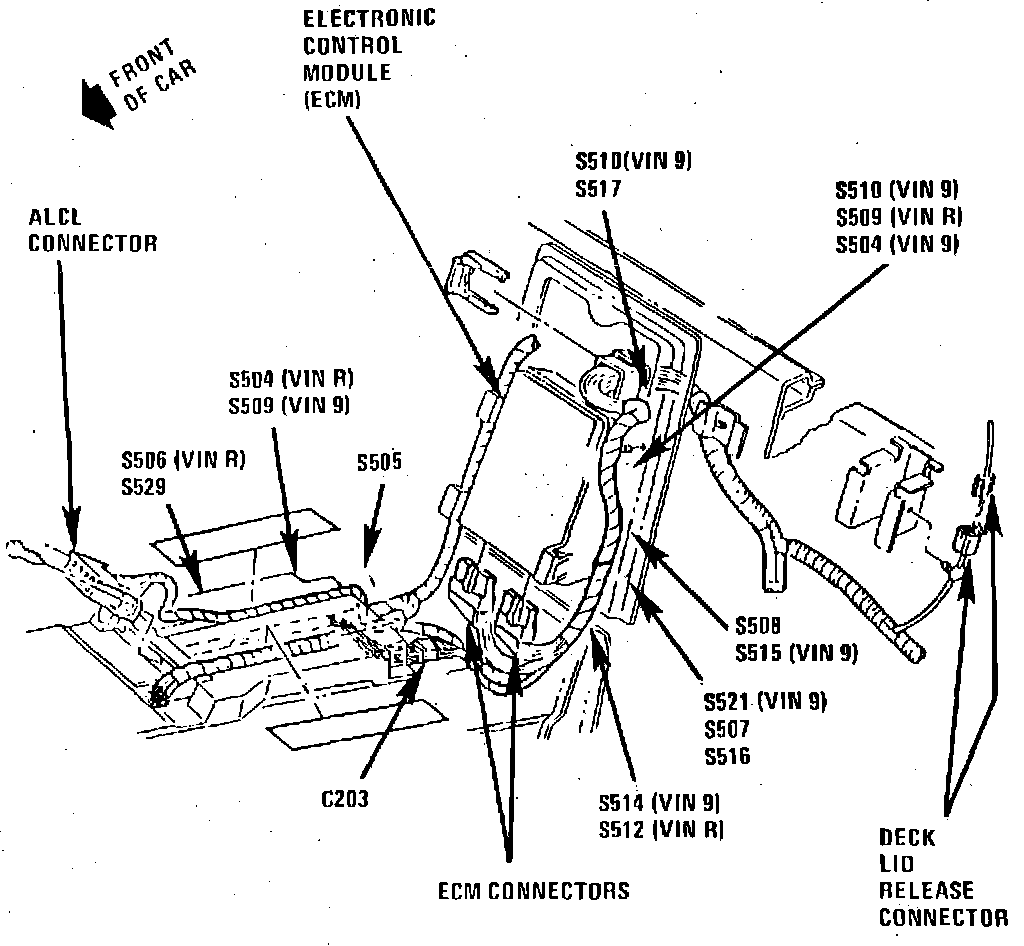

Electronic Control Module (ECM)

Between Seats, Rear Bulkhead.:

Between Seat, On Rear Bulkhead

Applicable to: 1986
