Powertrain Management: Locations

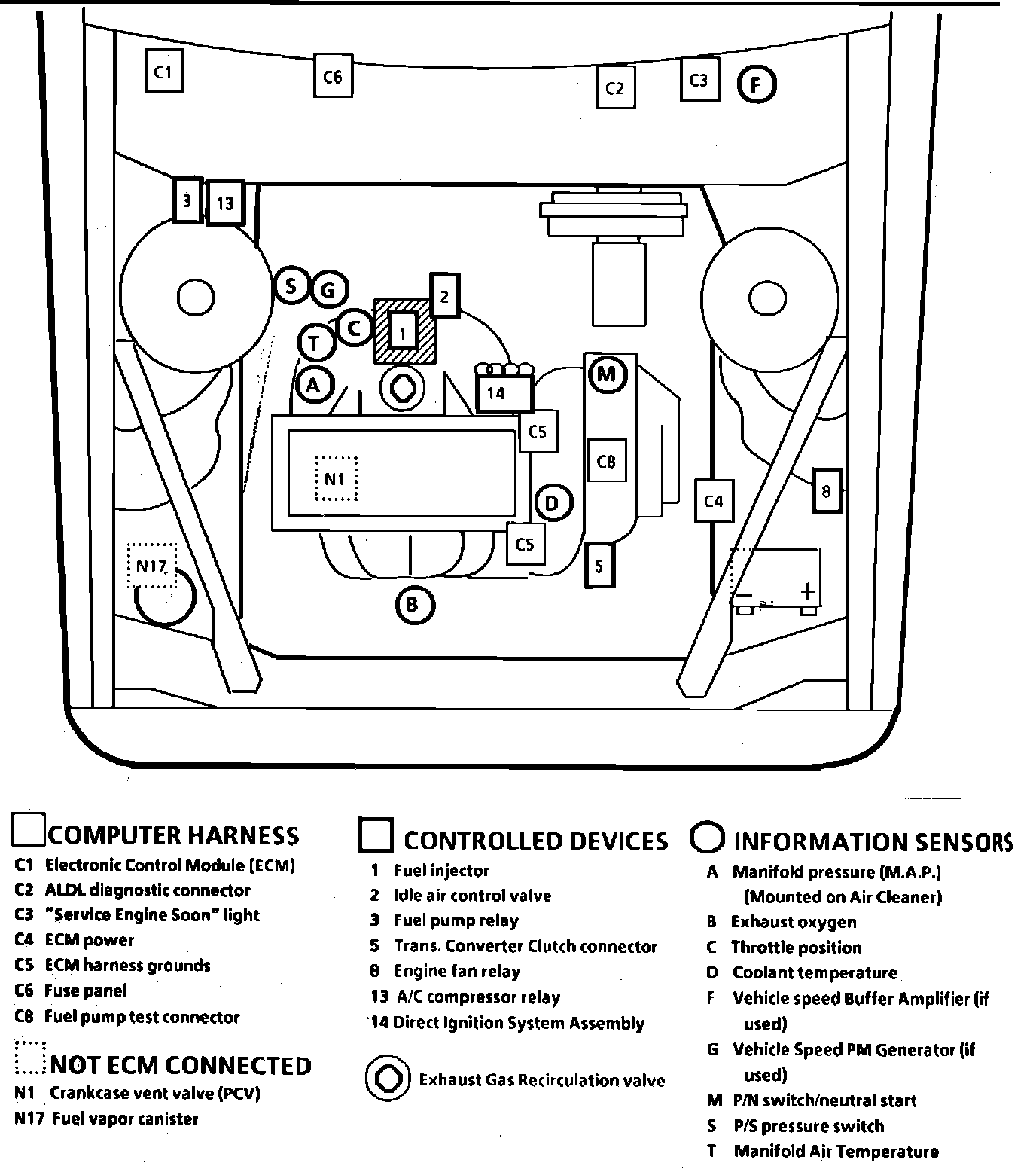

Fig. 63 Emission Component Location. 1987 Celebrity, Cutlass Ciera & 6000 W/4-151/2.5L, TBI:
