With Speed Density Update

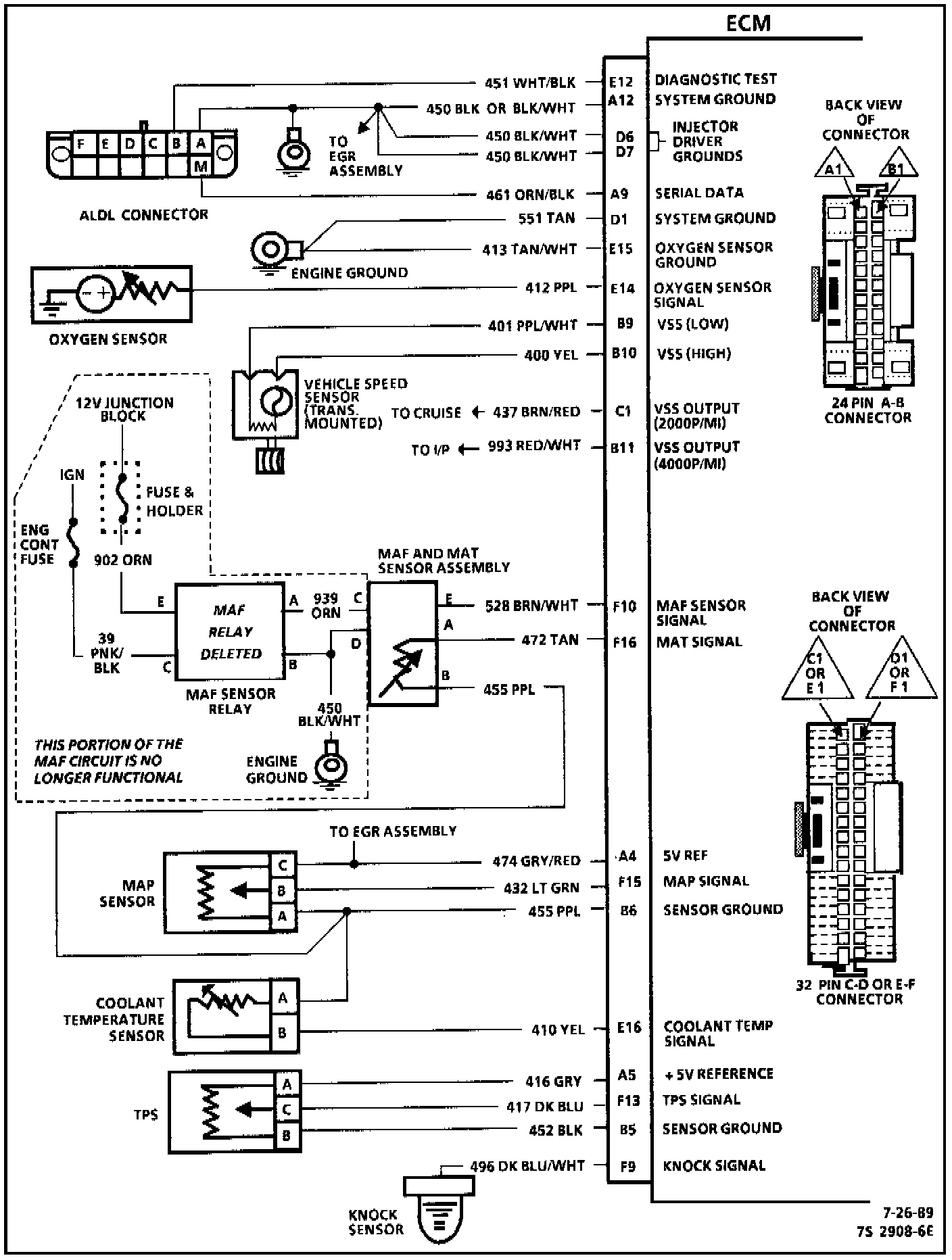

ECM Wiring Diagram (1 Of 3):

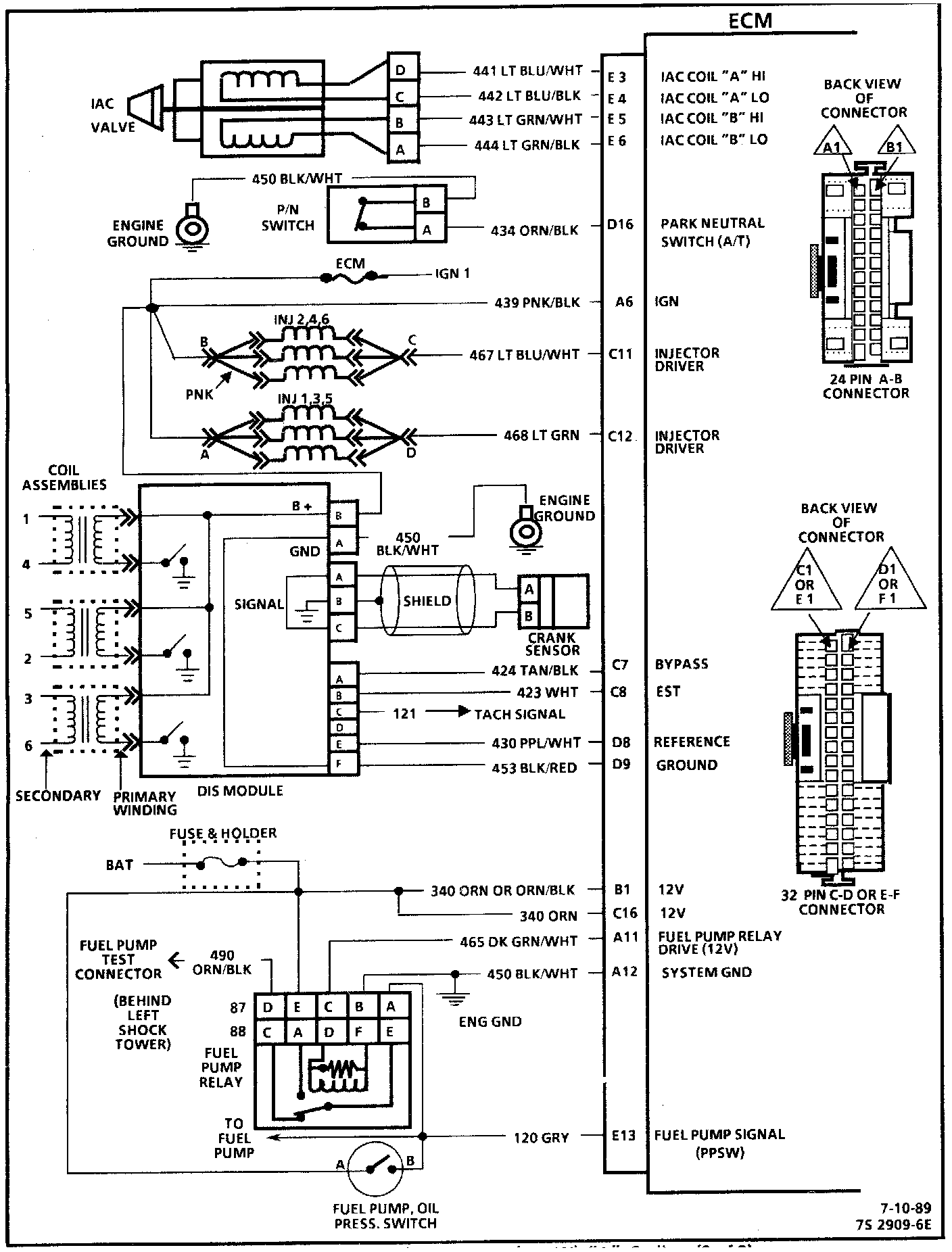

ECM Wiring Diagram With Speed Density Update:

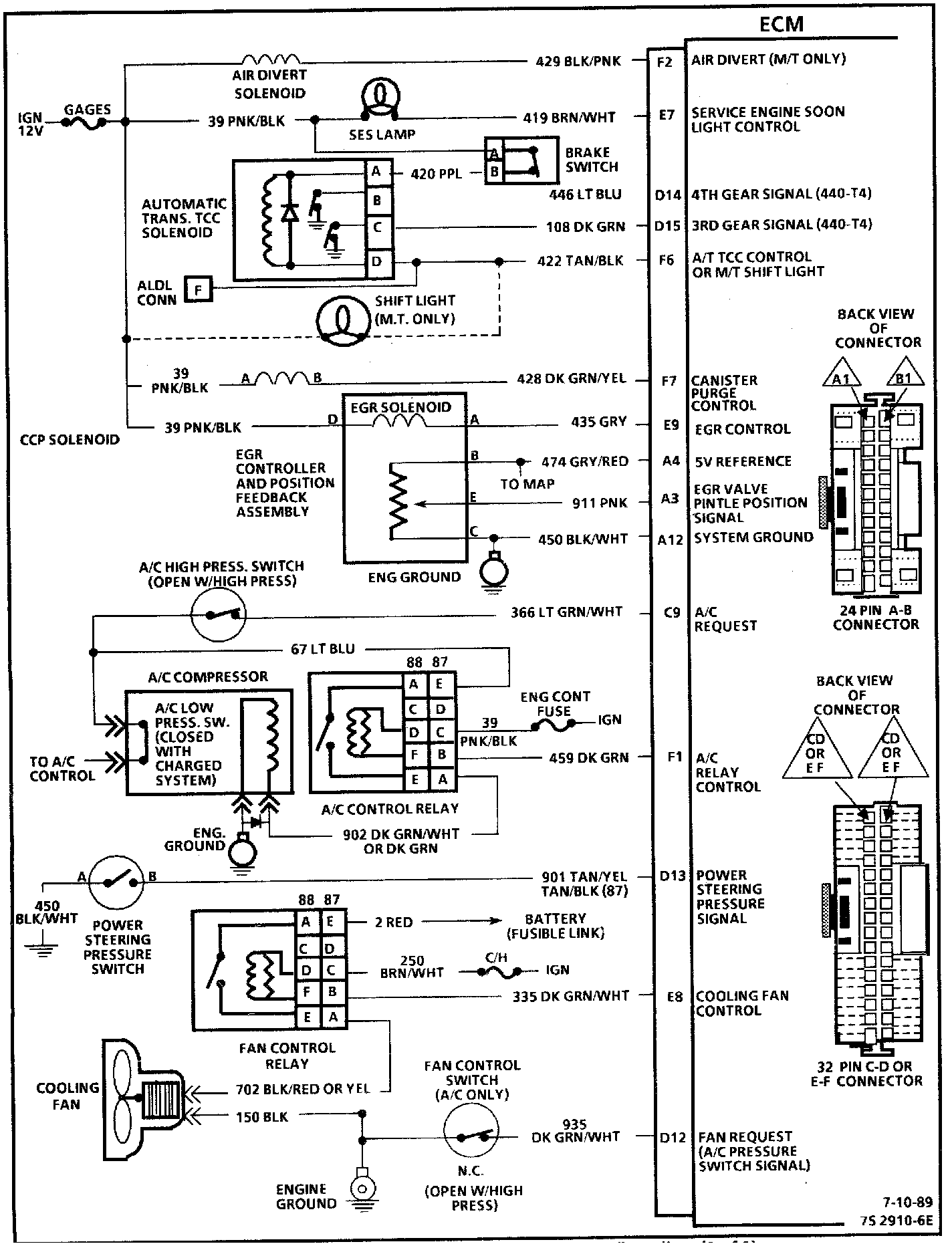

ECM Wiring Diagram (3 Of 3):
