Emission Control Systems: Locations

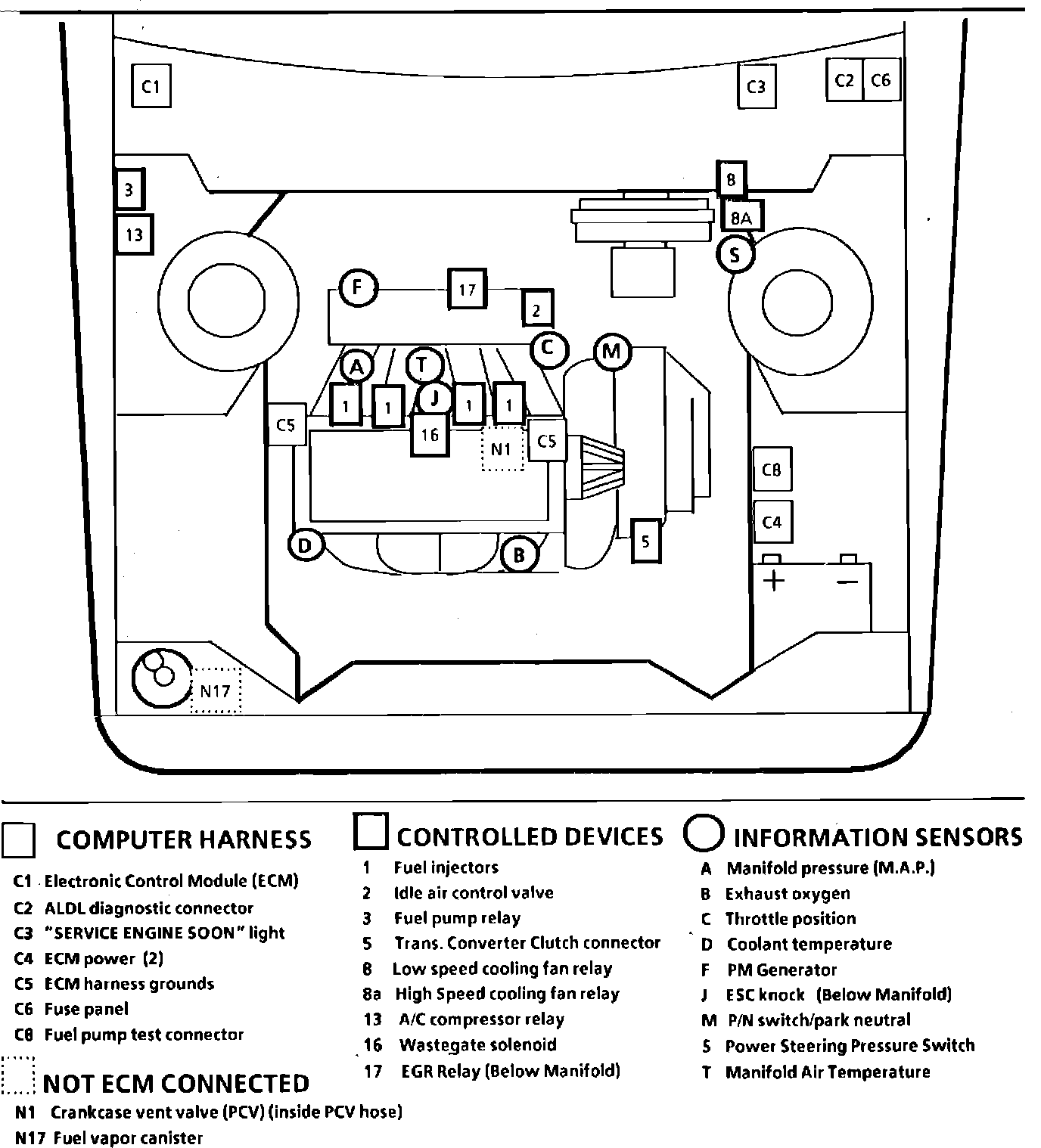

Fig. 61 Emission Component Location. 1987 Sunbird & Grand Am W/4-121/2.0L, Turbocharged, PFI:
