Compressor Control Relay

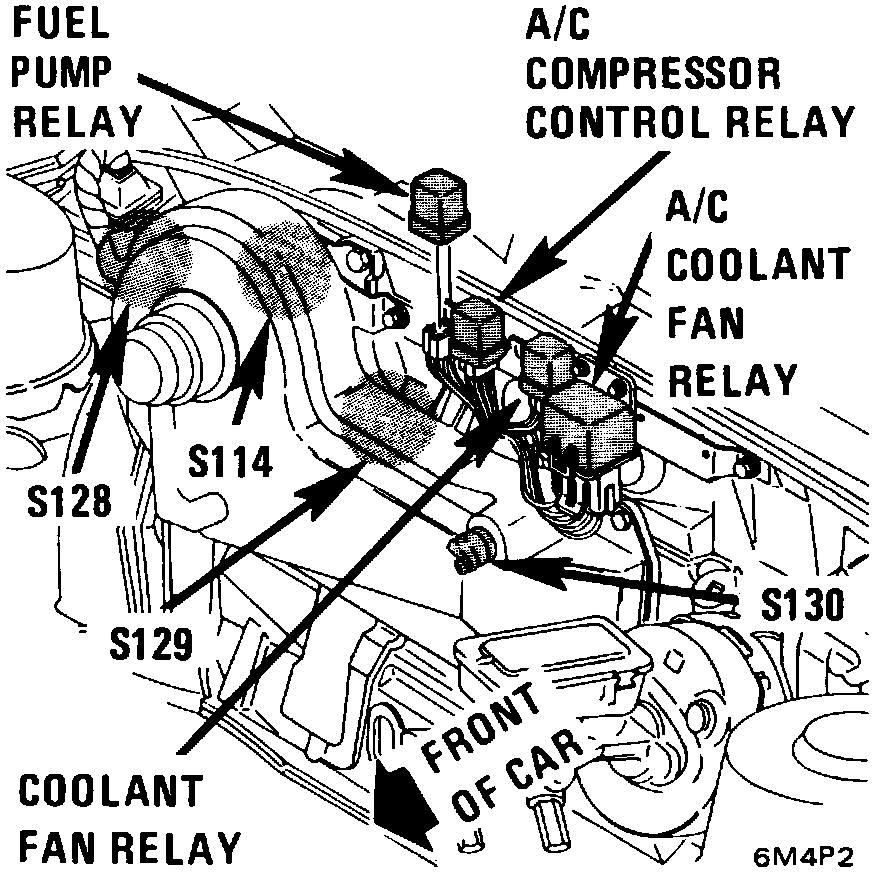

A/C Copressor Control Relay:






The A/C Compressor Control Relay is located at the center of the dash on the relay bracket.
