Throttle Position Sensor: Locations

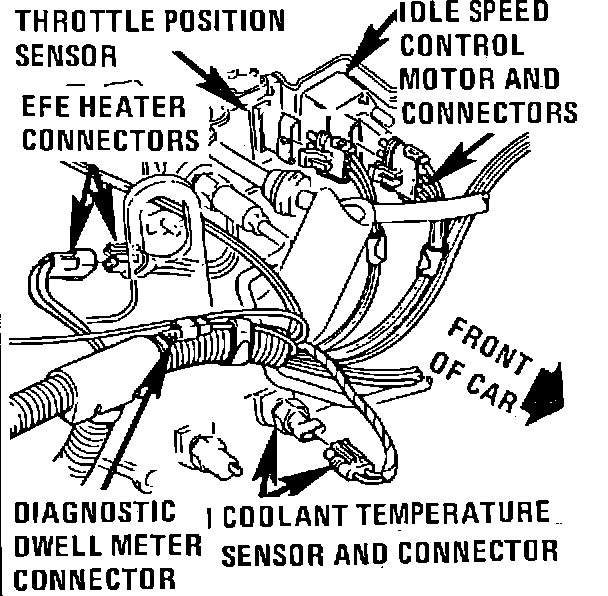

Top Front Of Engine.:




Top Front Of Engine

Applicable to: 1987 Cutlass Supreme, Grand Prix & Regal. V6-231/3.8L VIN A)
