Component Locations

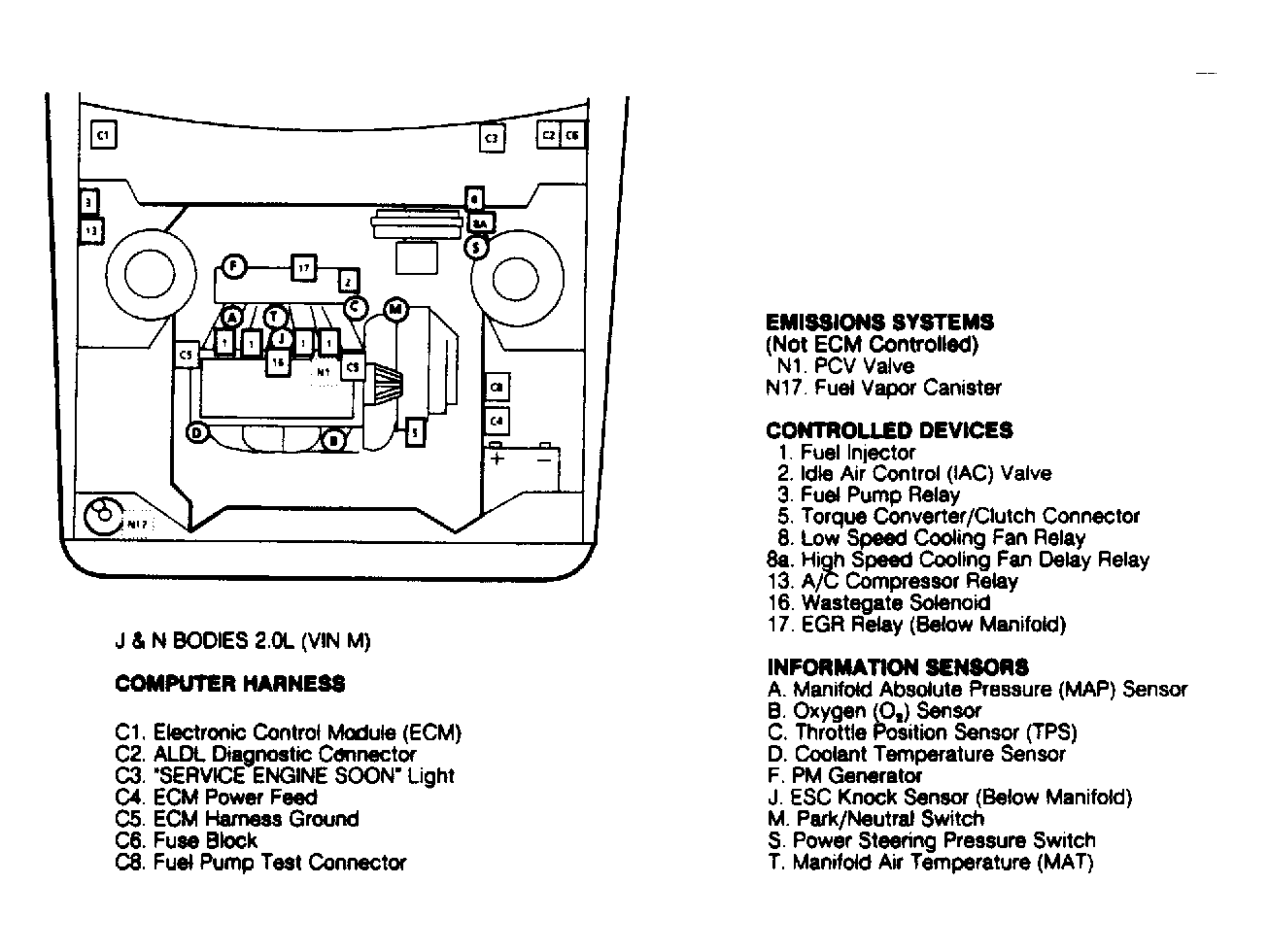

Fig 1: PFI Component Locations, (VIN M)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
