Throttle Position Sensor: Locations

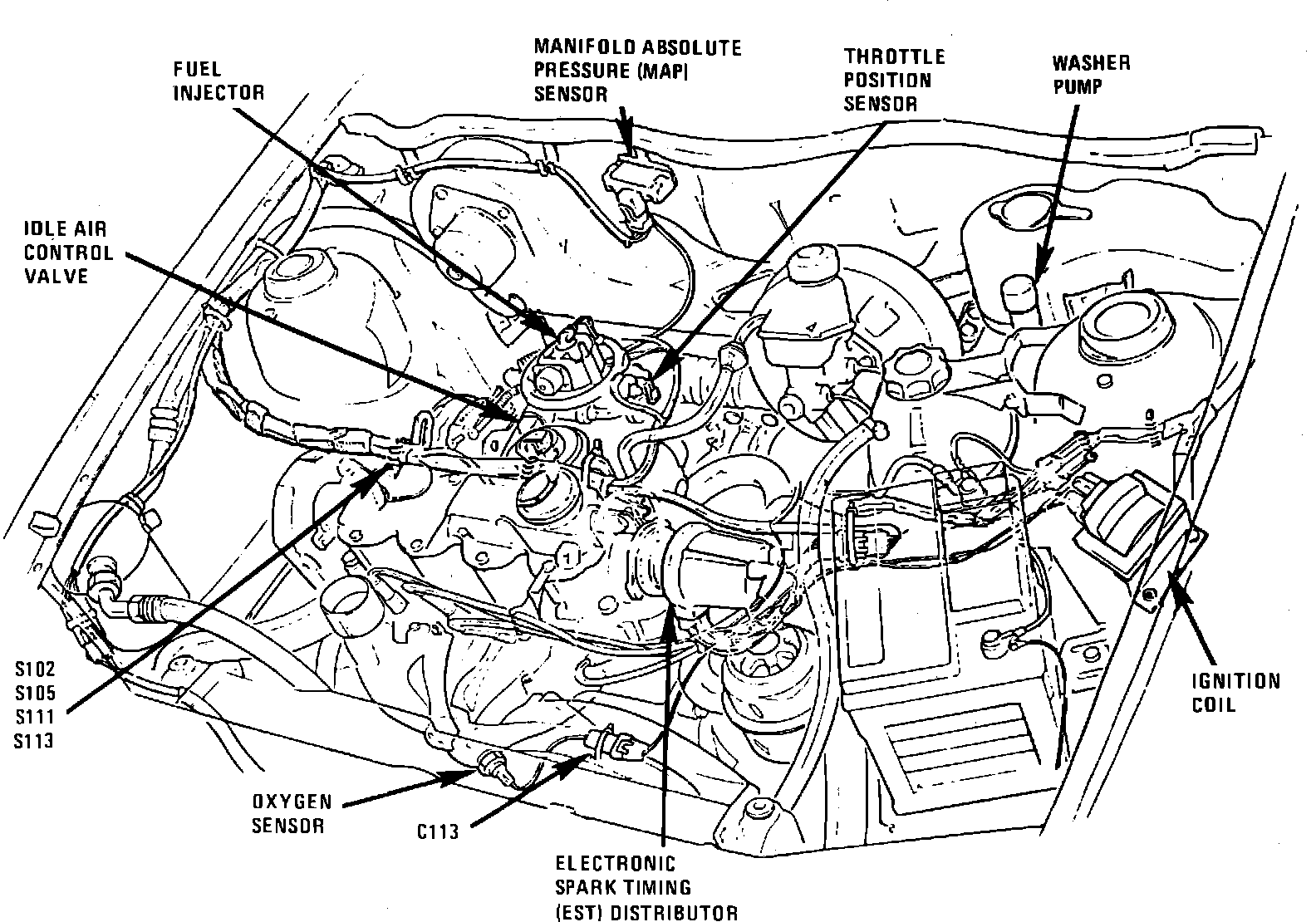

Engine Compartment Components (Part 1 Of 2):

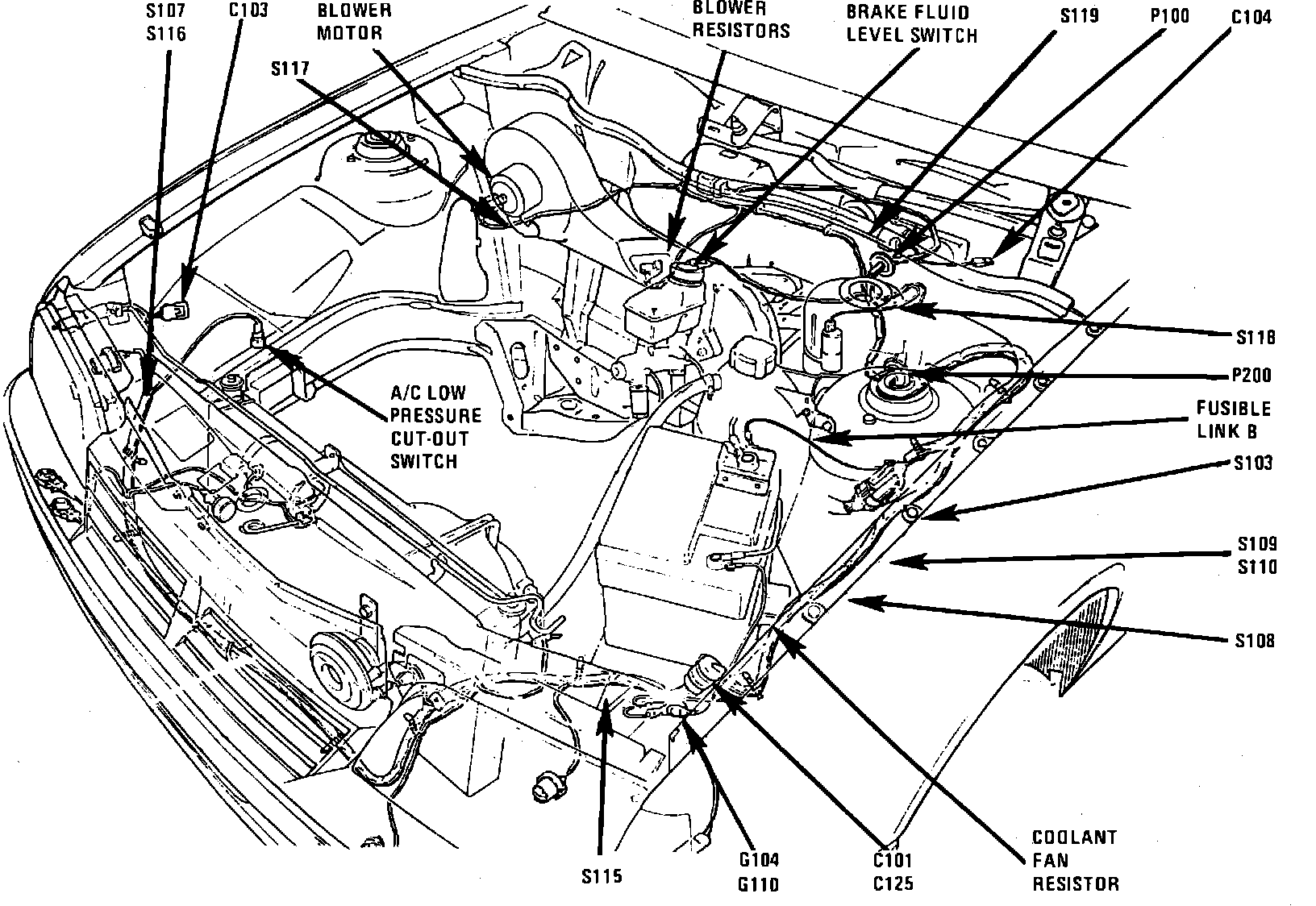

Engine Compartment Components (Part 2 Of 2):




Center Of Engine Compartment
