ECM Pinout/Terminal ID Charts

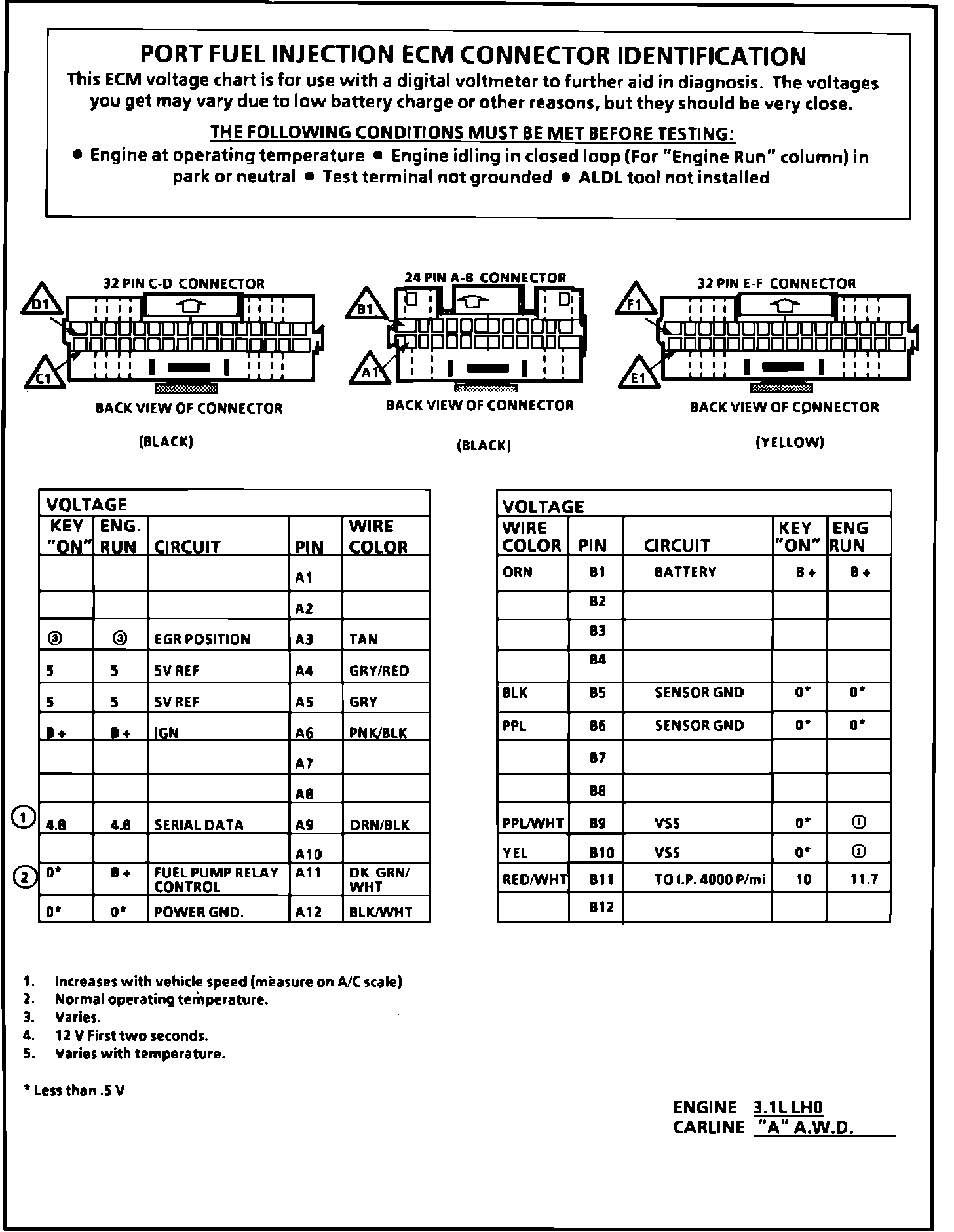

ECM Connector Terminal Identification And Voltage Specification (Part 1 Of 2):

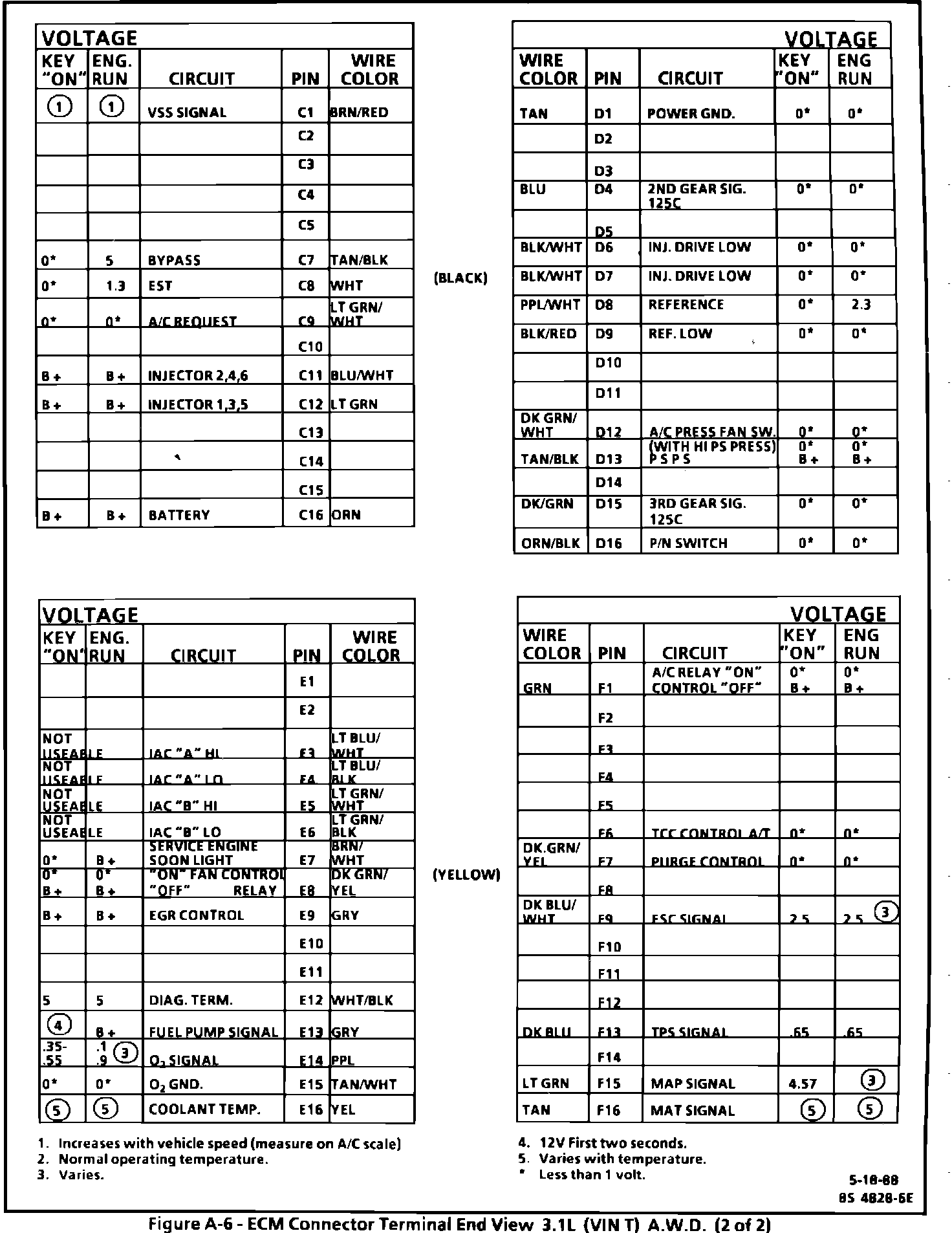

ECM Connector Terminal Identification And Voltage Specification (Part 2 Of 2):
