Main Valve

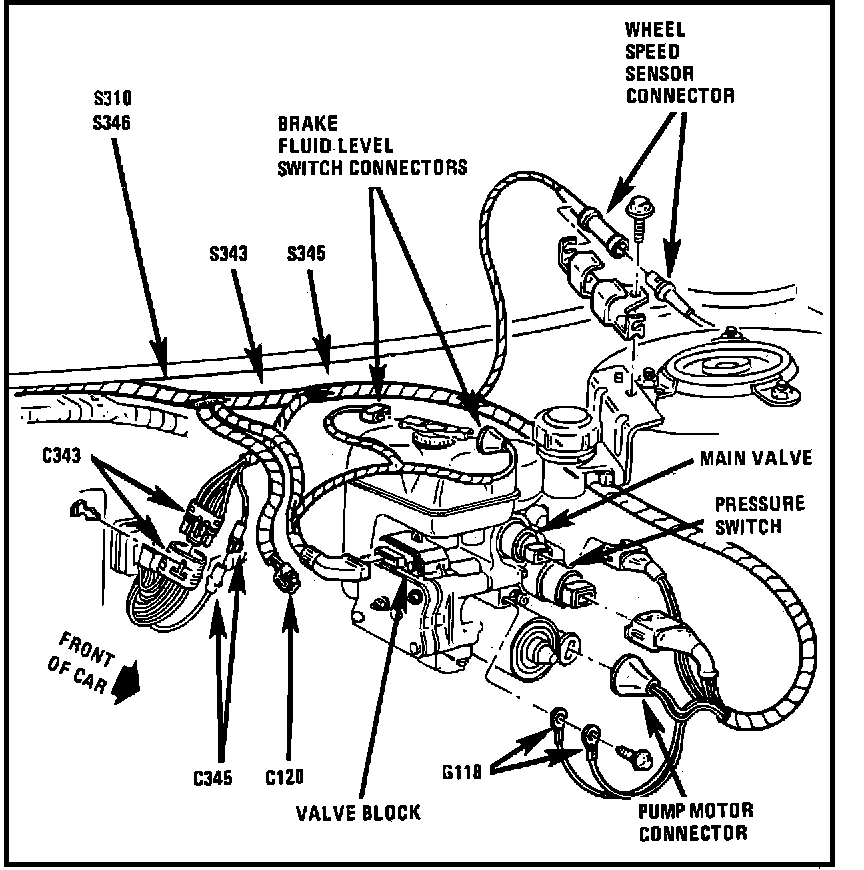

LH Rear Of Engine Compartment:




LH Rear Of Engine Compartment, Near Valve Block

Applicable to: 6000 w/V6 w/Anti-Lock Brakes
