A/C Compressor Control Relay

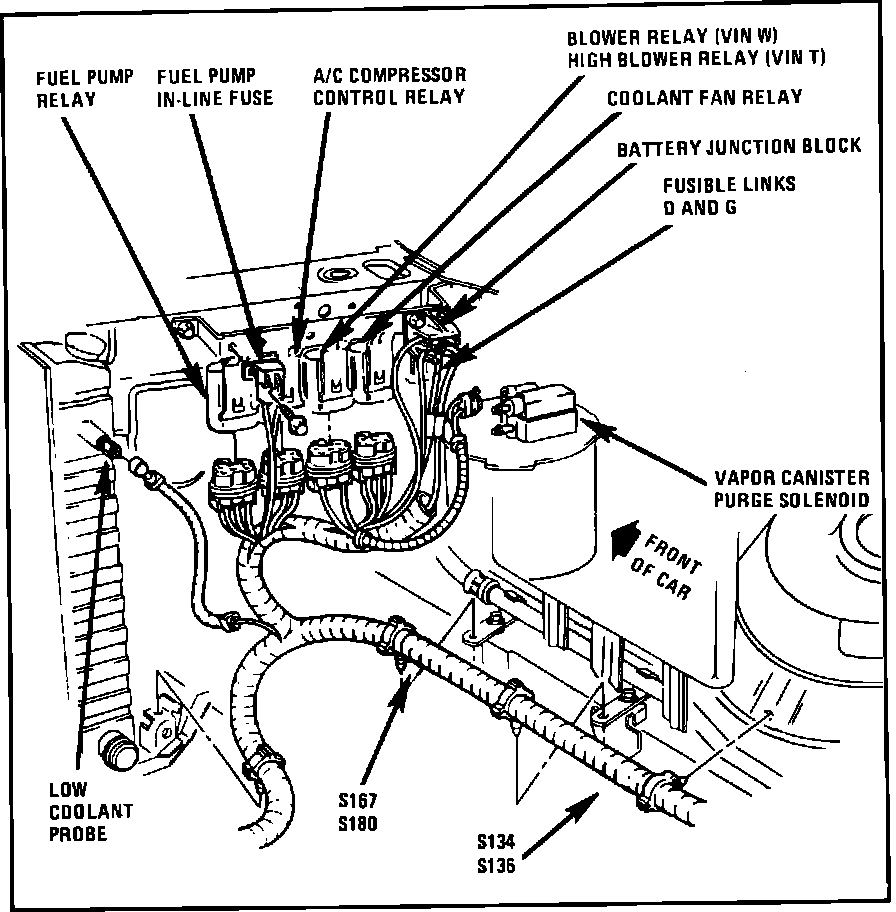

RH Front Of Engine Compartment.:

RH Front Of Engine Compartment, On Bracket

Applicable to: 6000 w/V6
