Electronic/Engine Control Module (ECM)

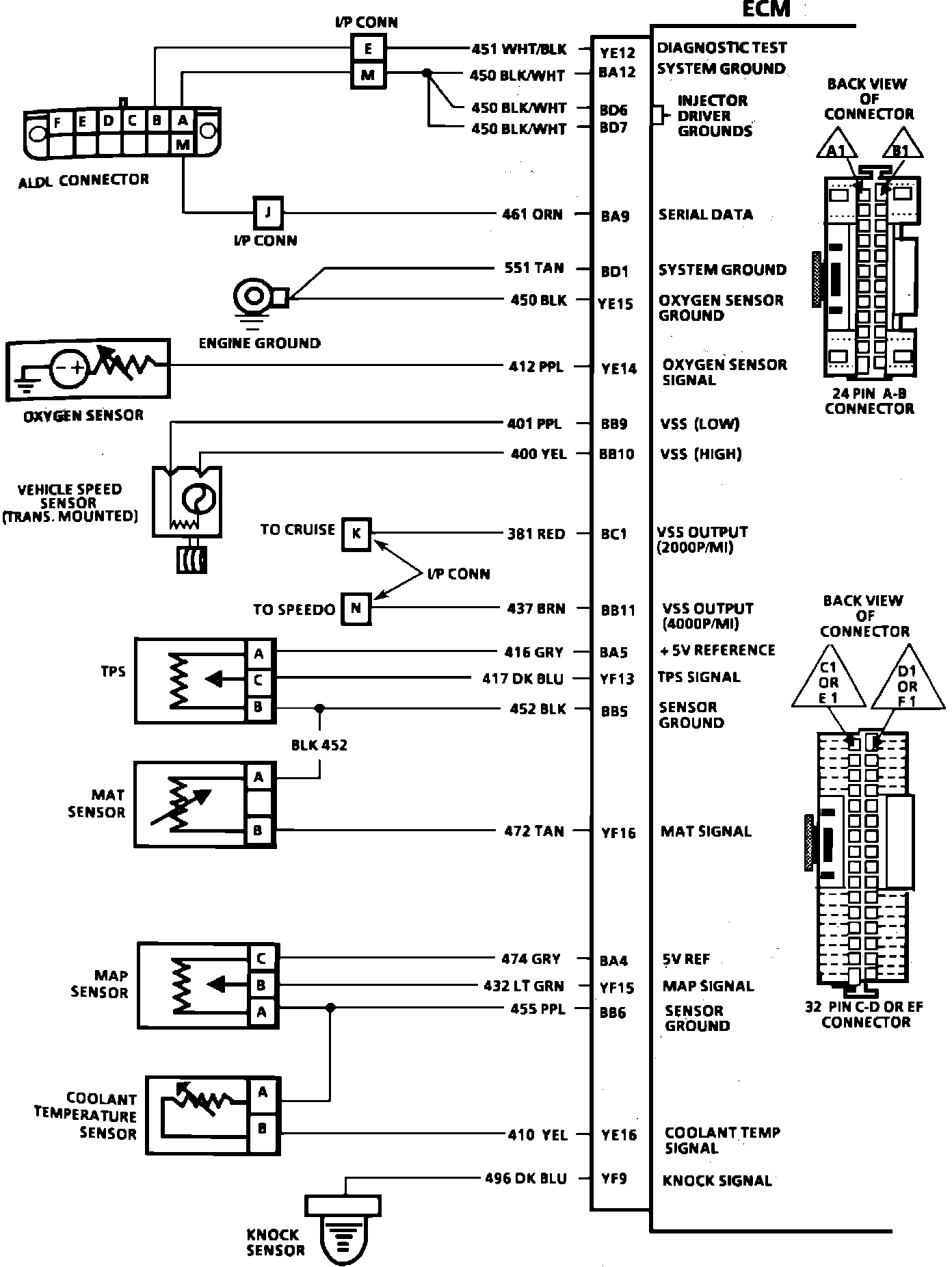

Electronic Control Module:

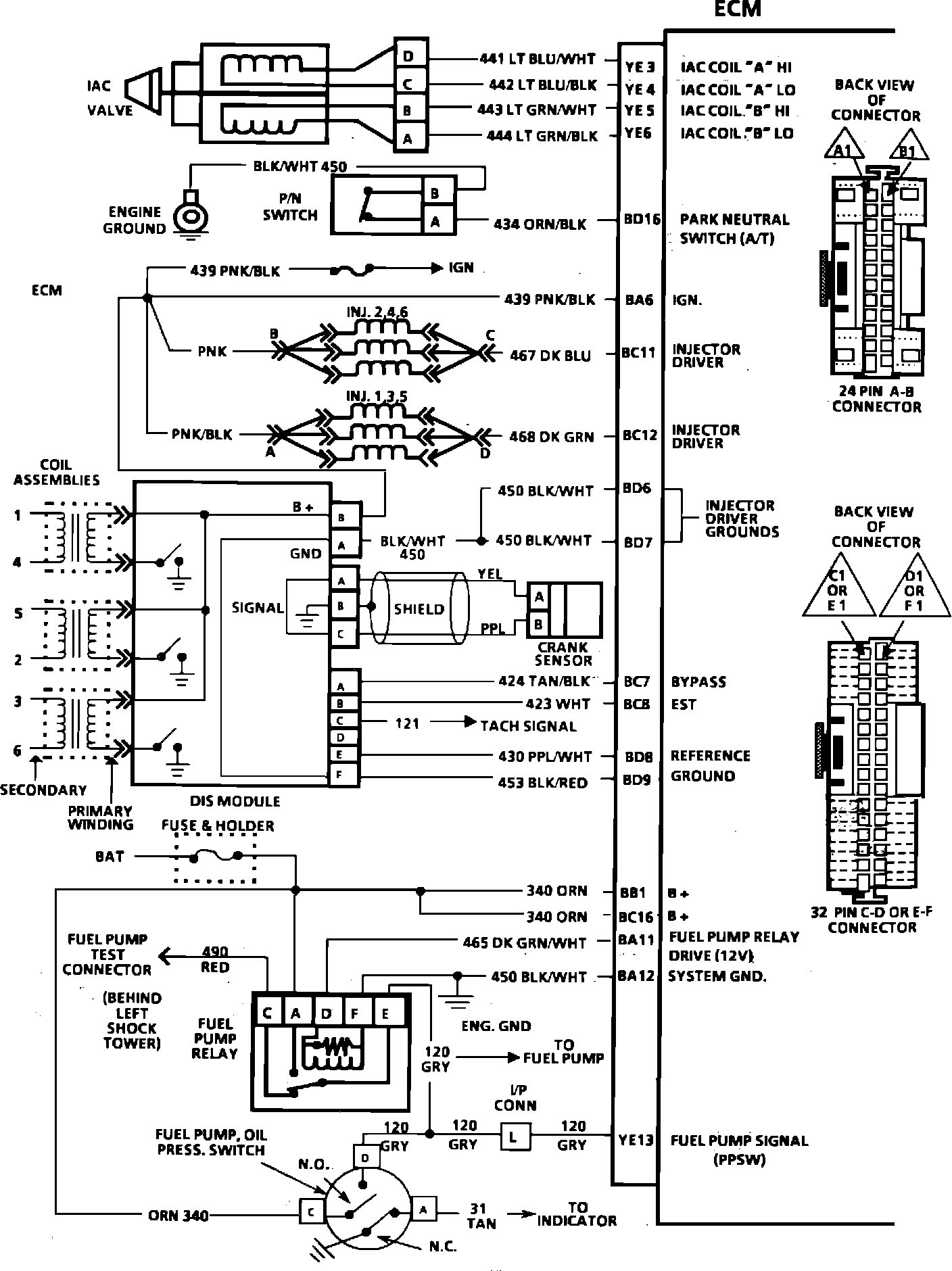

Electronic Control Module:

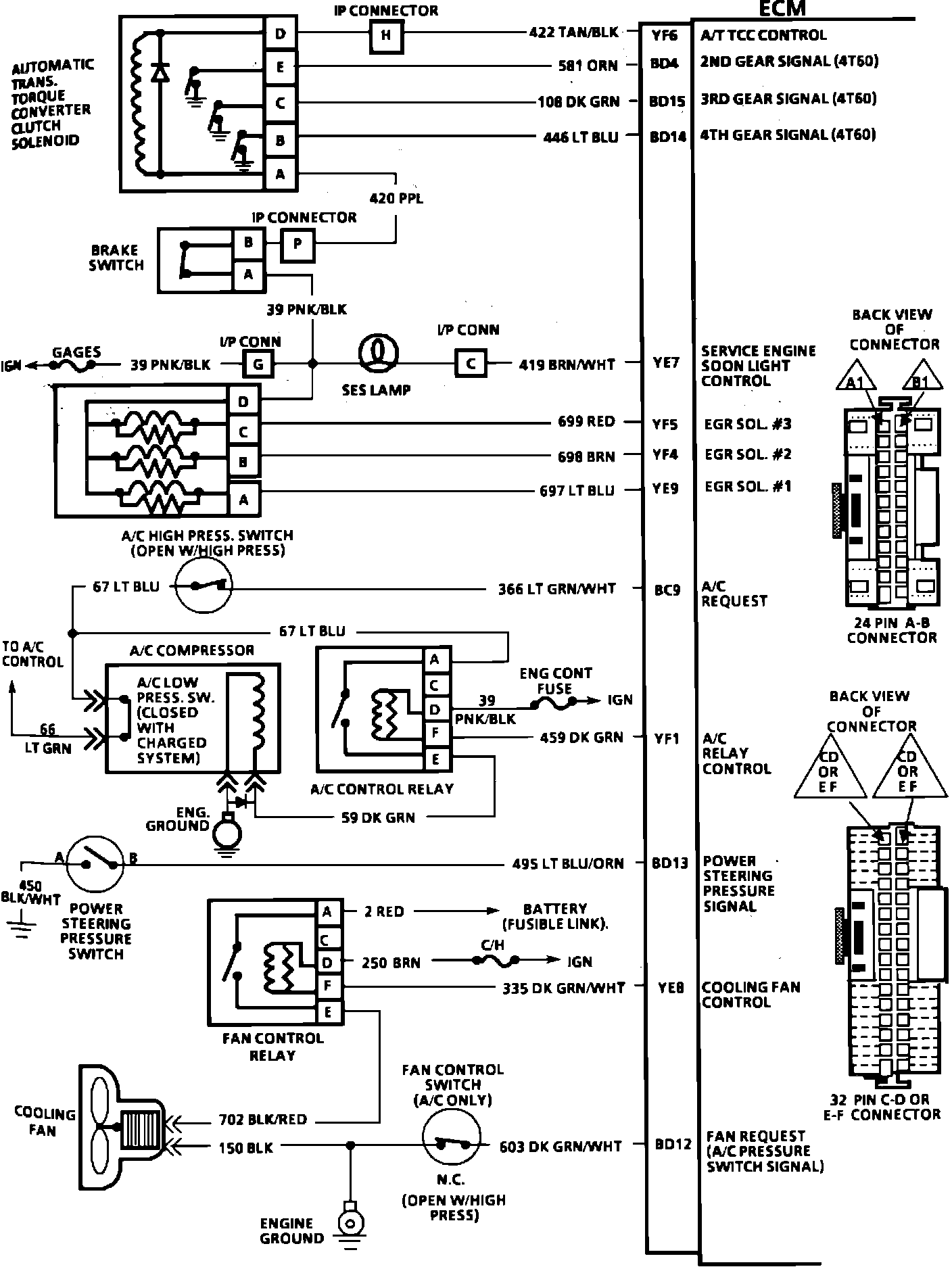

Electronic Control Module:
