Oxygen Sensor: Locations

Engine Component Location.:

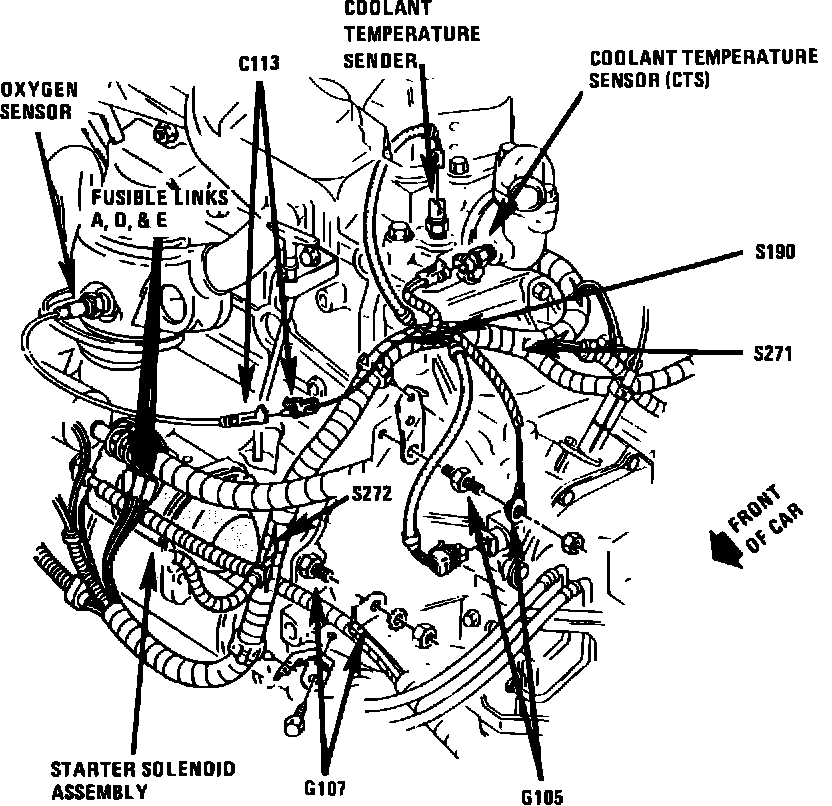

LH Front Of Engine.:

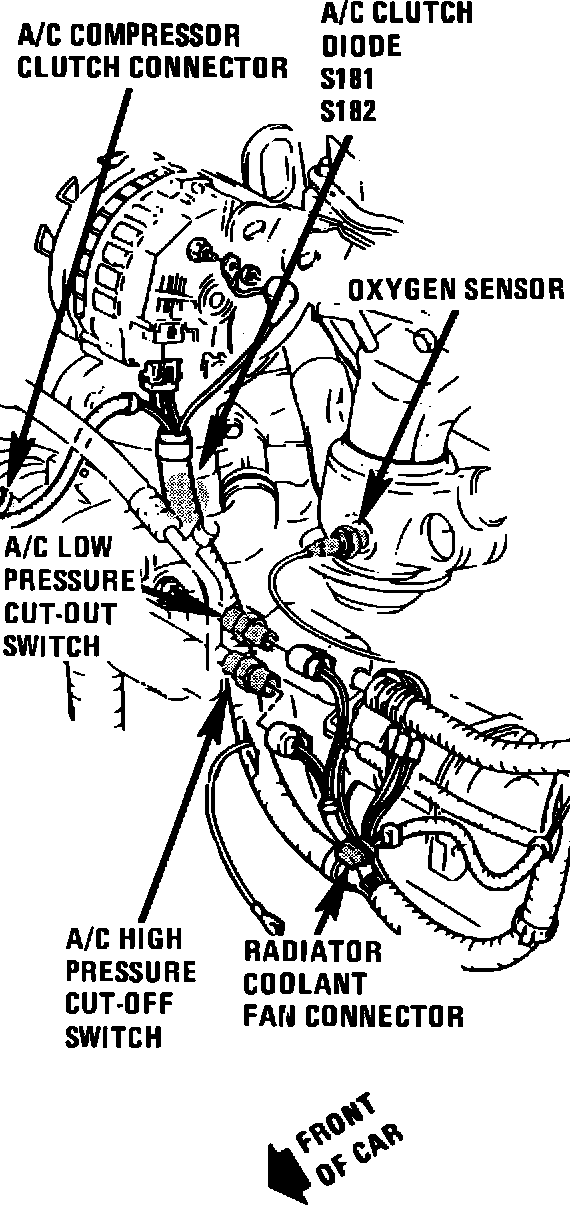

RH Front Of Engine.:






Front Of Engine, In Bottom Of Exhaust Manifold

Applicable to: 2.5L/4-151
