Idle Air Control & Fuel Control

Electronic Fuel Injection: Fuel Control & Idle Air Controls:

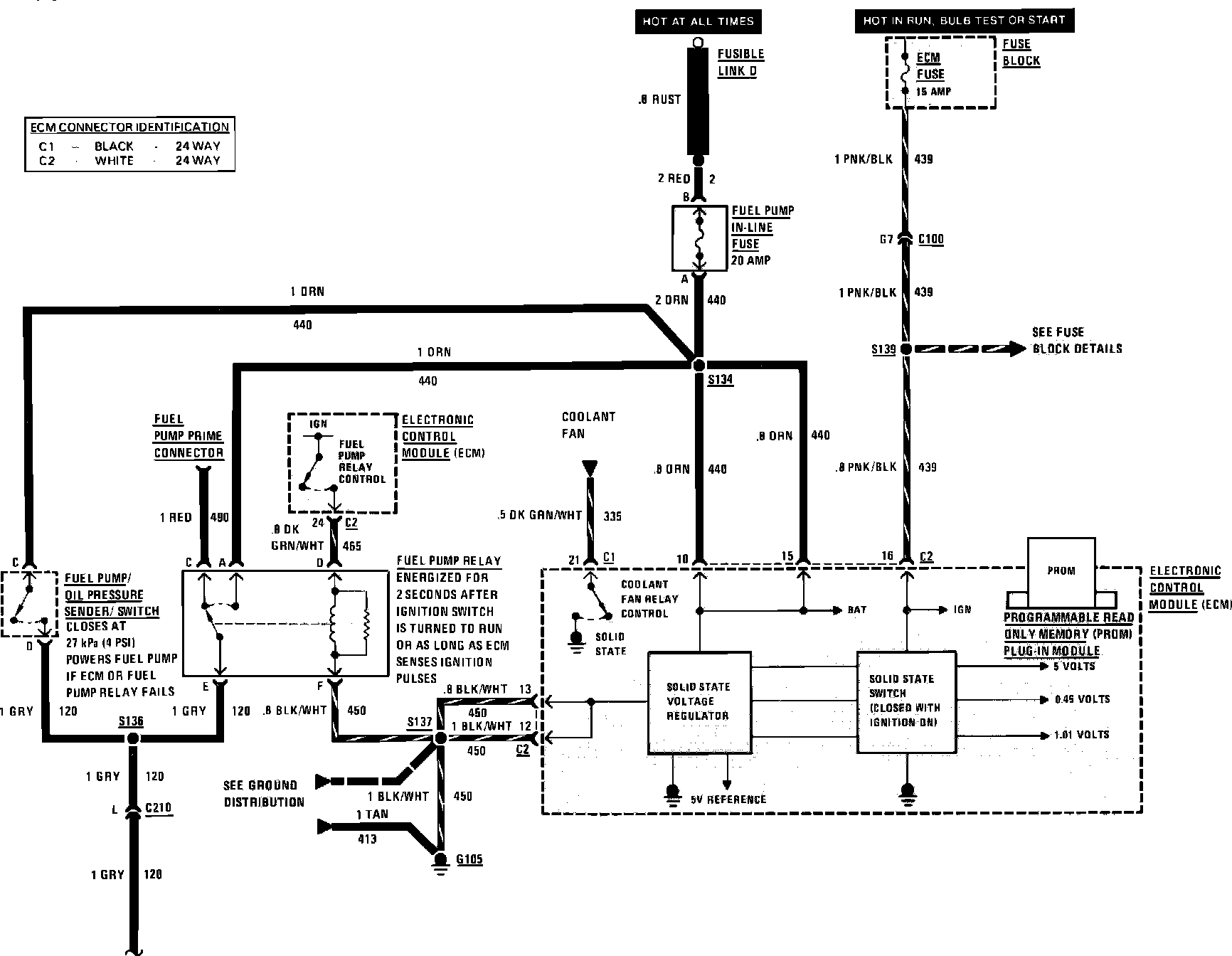

Electronic Fuel Injection: Fuel Control & Idle Air Controls:
