PCV Diagram

NOTE: This engine does not use the "typical" PCV valve but rather, a PCV orifice.

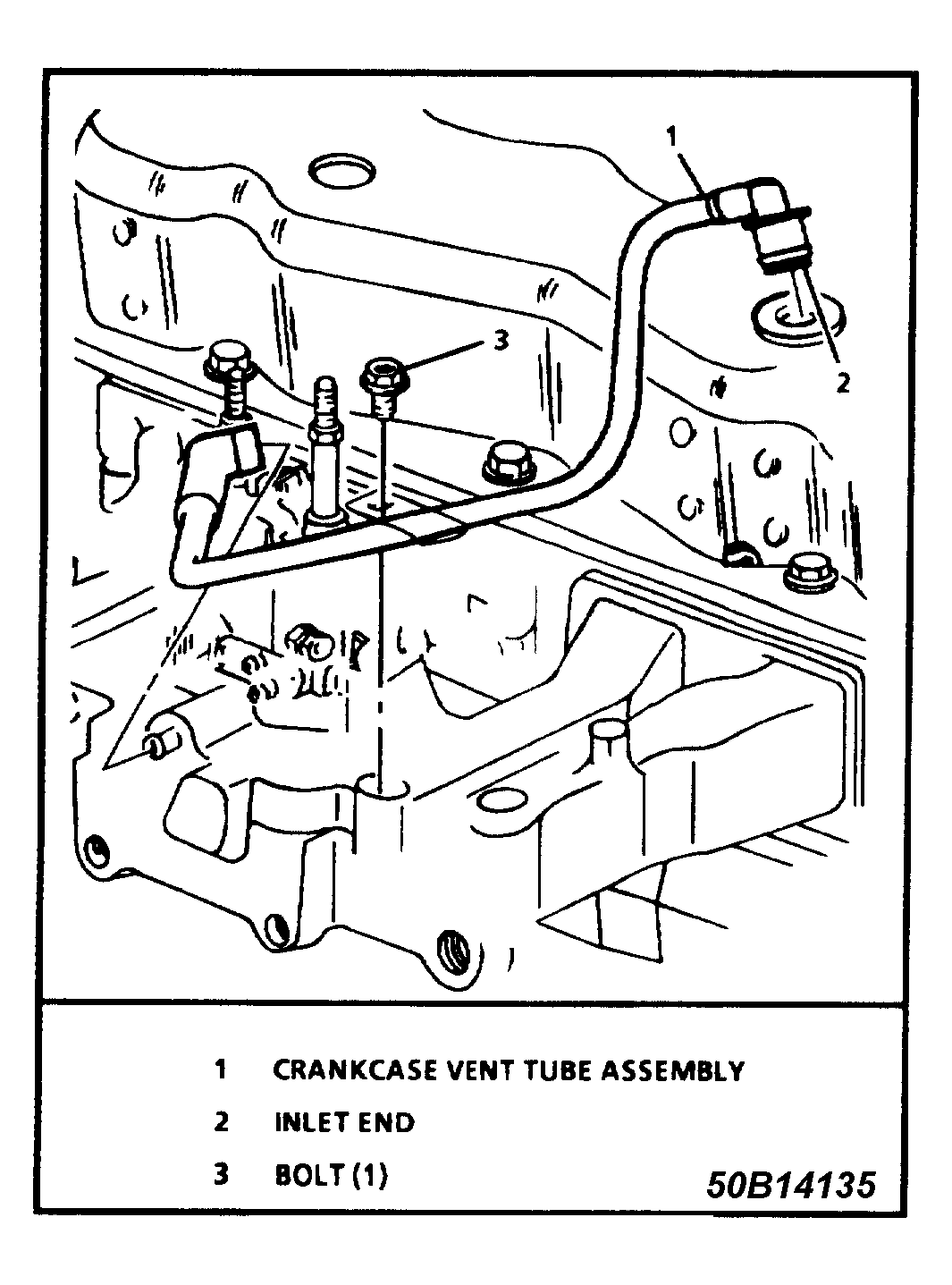

Fig 1: PCV Valve Location (2.5L VIN R)

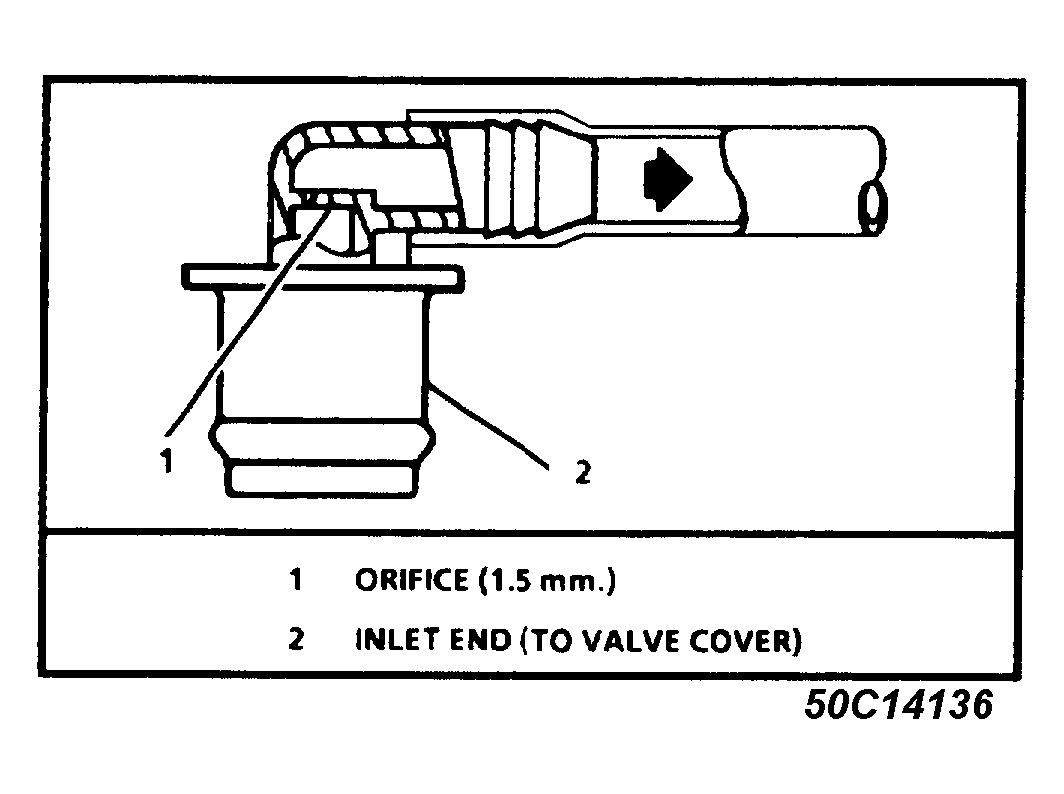

Fig 2: PCV Valve Orifice X-Ray View (2.5L VIN R)
