Test C: Express Down Window Module

Perform express down window module test. See Fig 1.

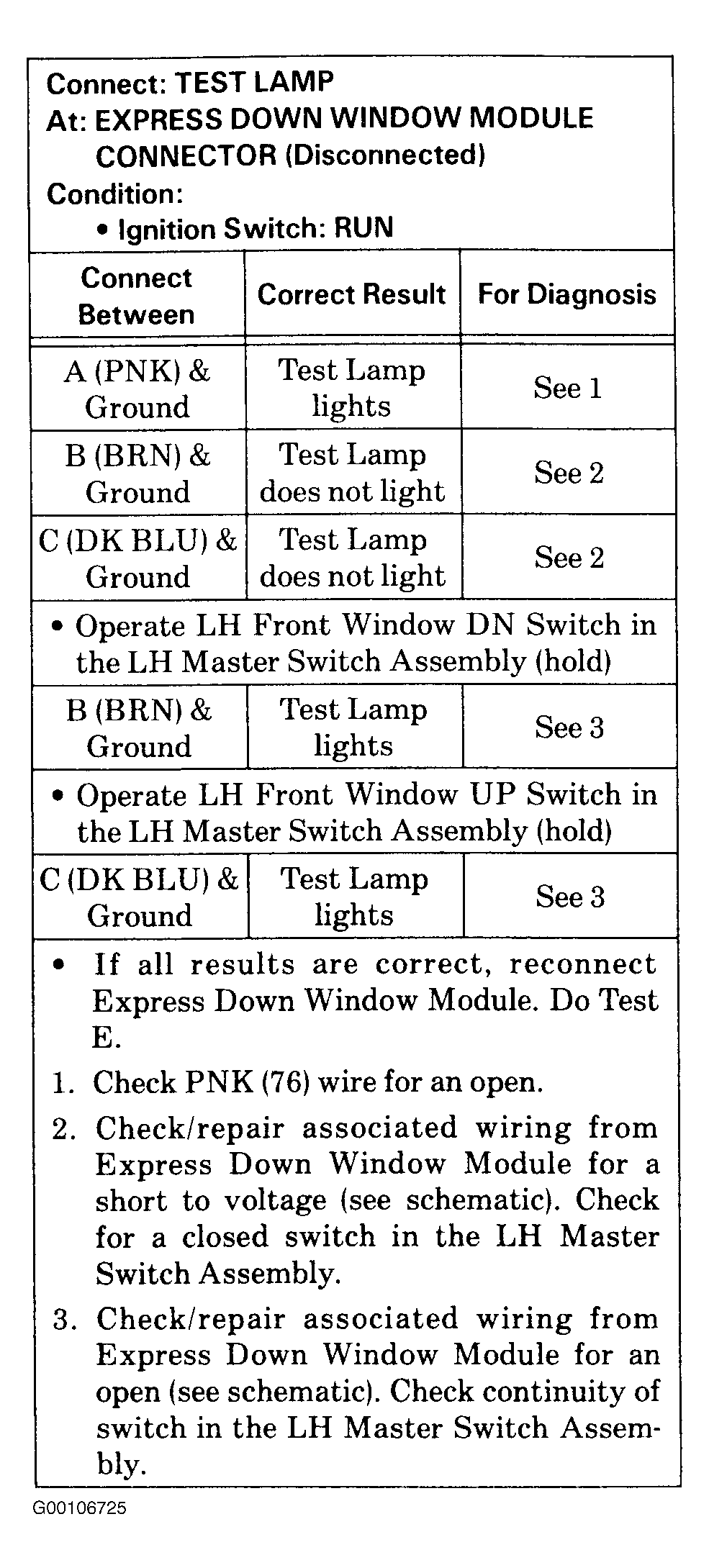

Fig 1: Test C: Express Down Window Module
G00106725Courtesy of GENERAL MOTORS CORP.
