Test D: Window Switch
Perform window switch test. See
Fig 1
.

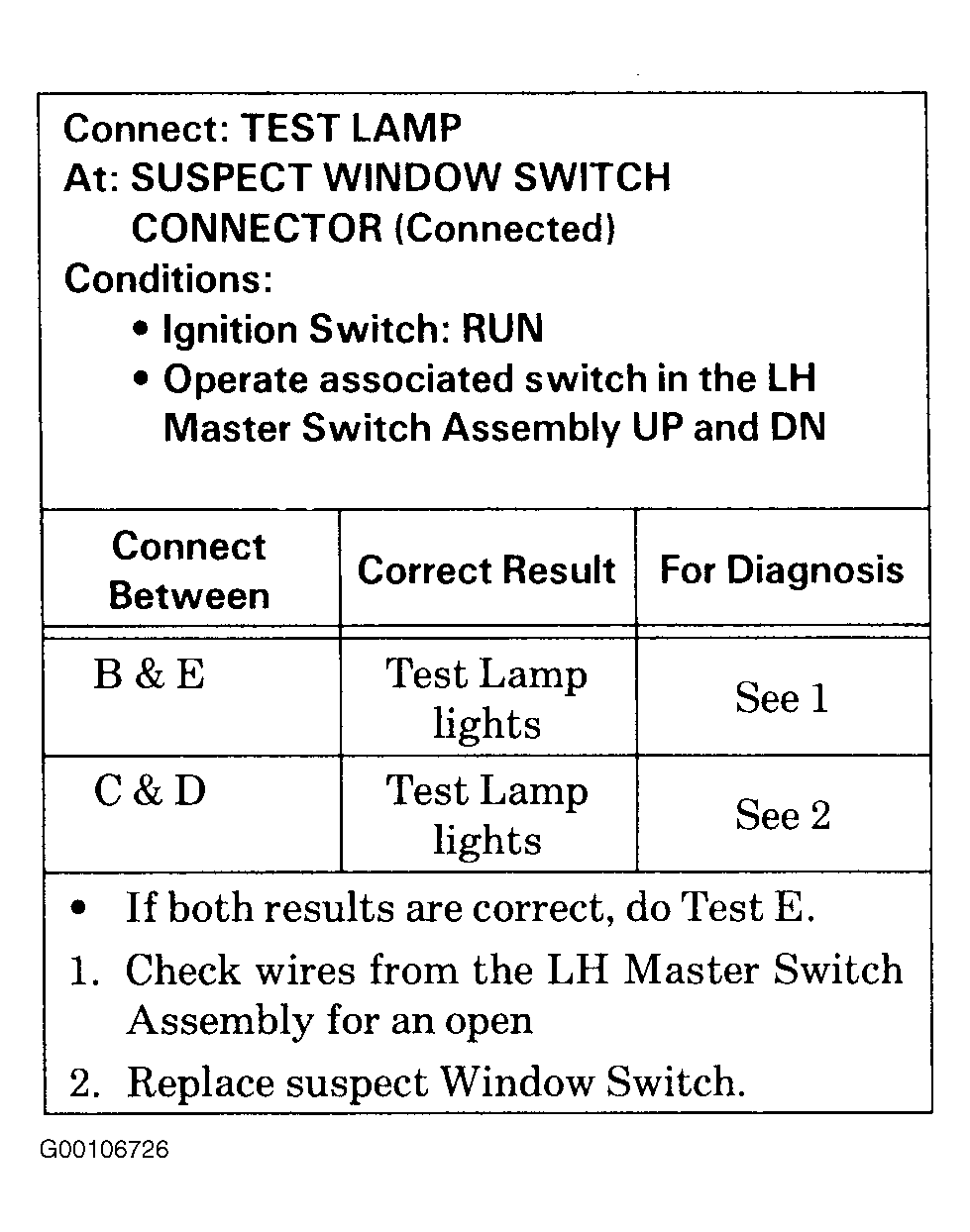

Fig 1: Test D: Window Switch
Courtesy of GENERAL MOTORS CORP.
