Test F: Window Switch Power

Perform window switch power test. See Fig 1.

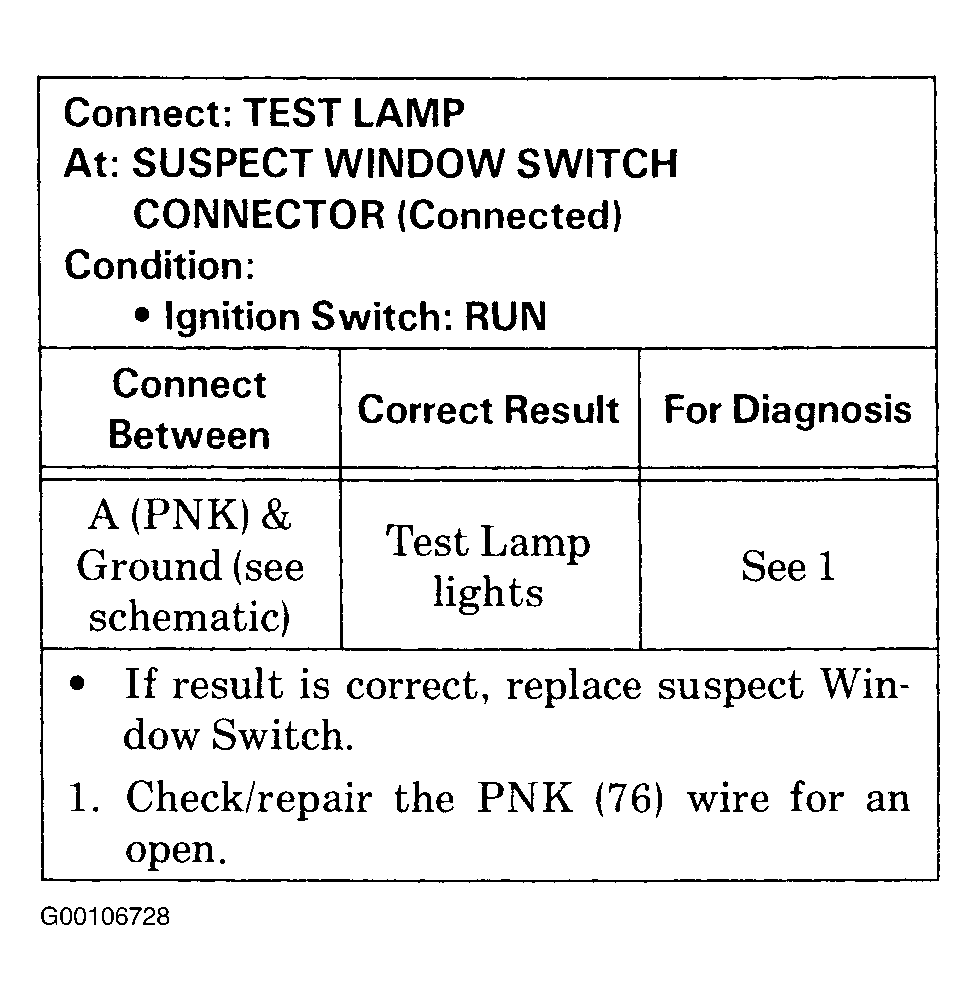

Fig 1: Test F: Window Switch Power
G00106728Courtesy of GENERAL MOTORS CORP.
