Test B: Power Window Switch Circuit

For testing procedure, see Fig 1 .

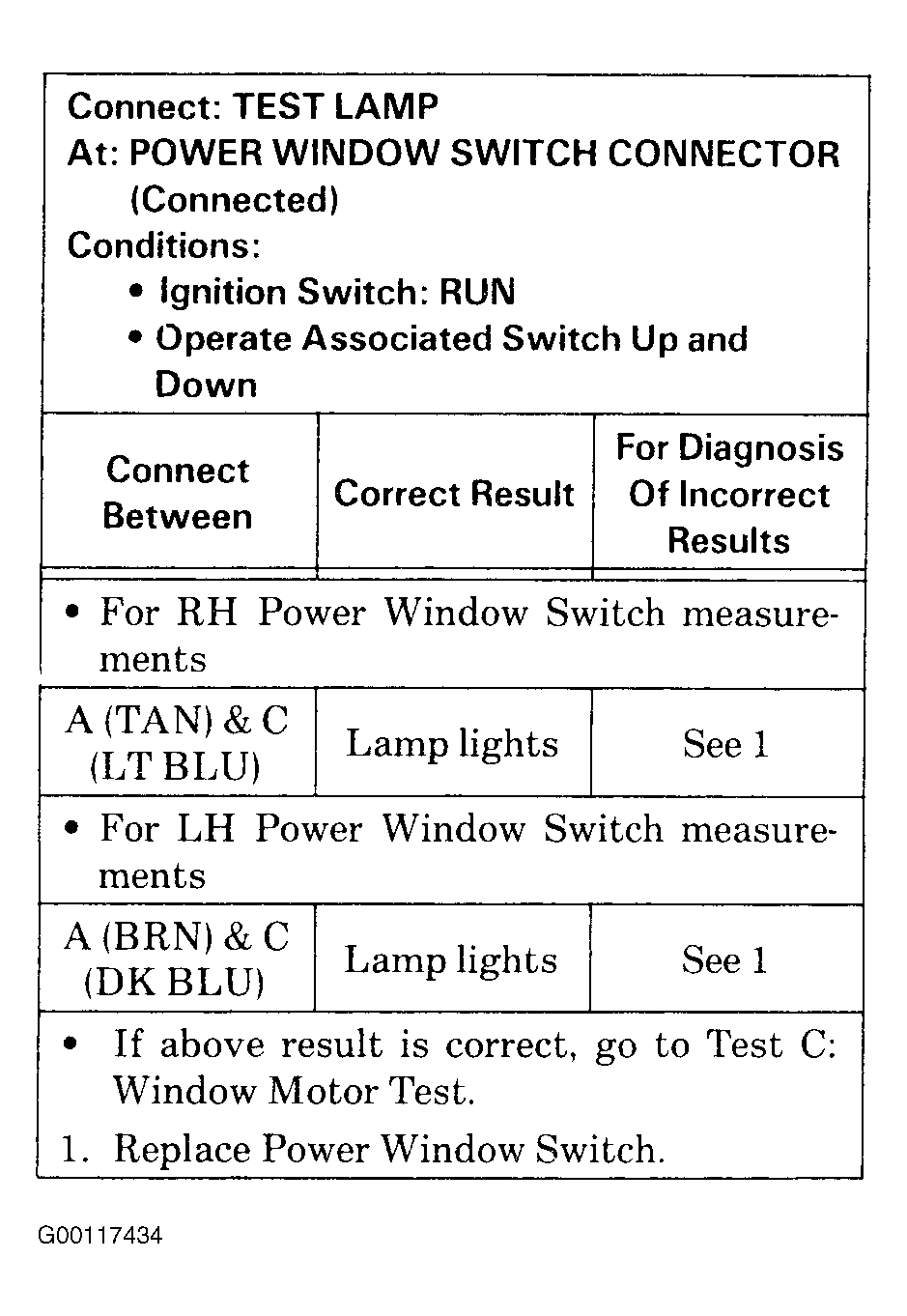

Fig 1: Test B: Power Window Switch Circuit
G00117434Courtesy of GENERAL MOTORS CORP.
