Engine Control Module

Multi-Port Fuel Injection And Tuned Port Injection:



Multi-Port Fuel Injection And Tuned Port Injection:

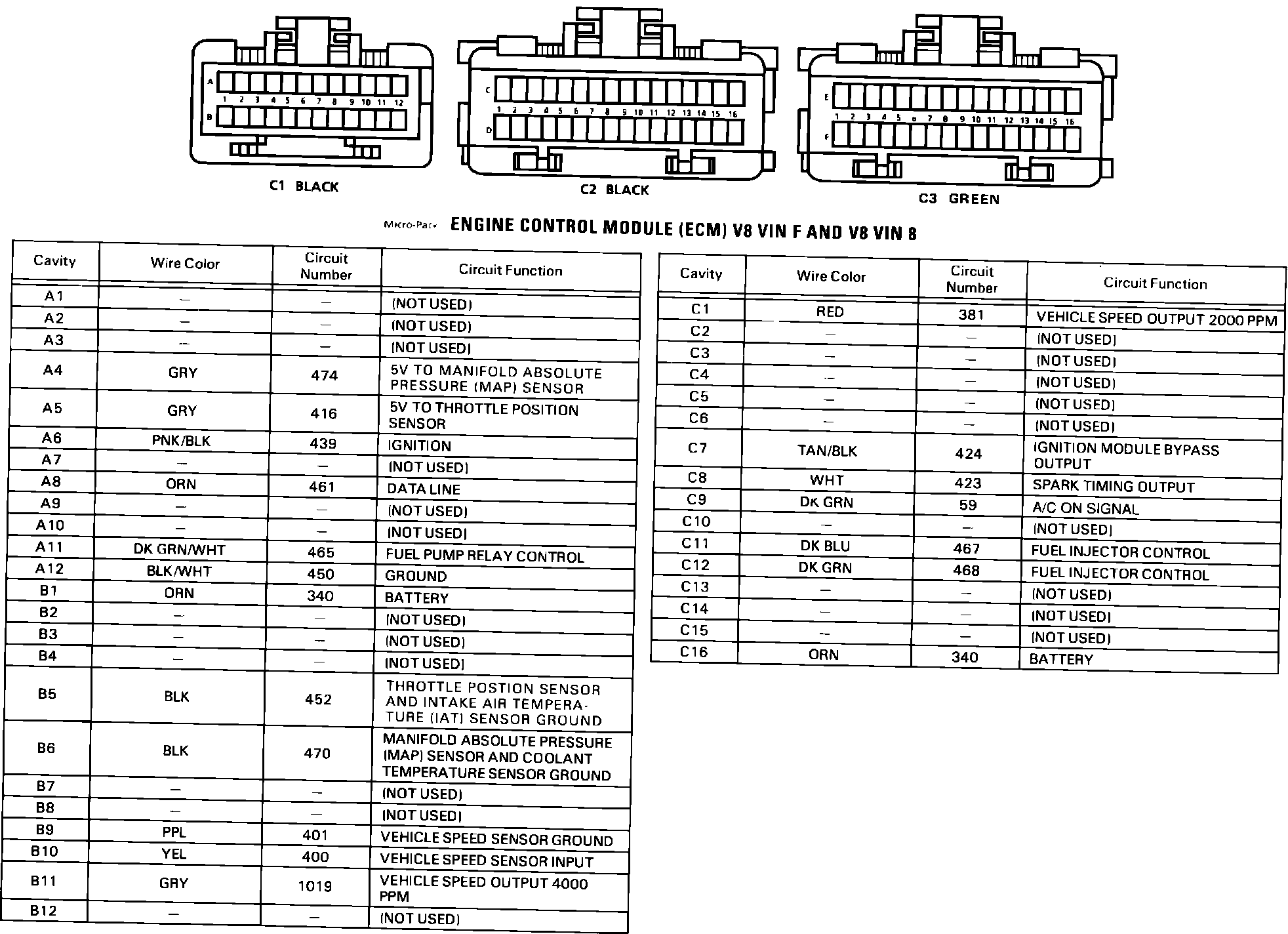

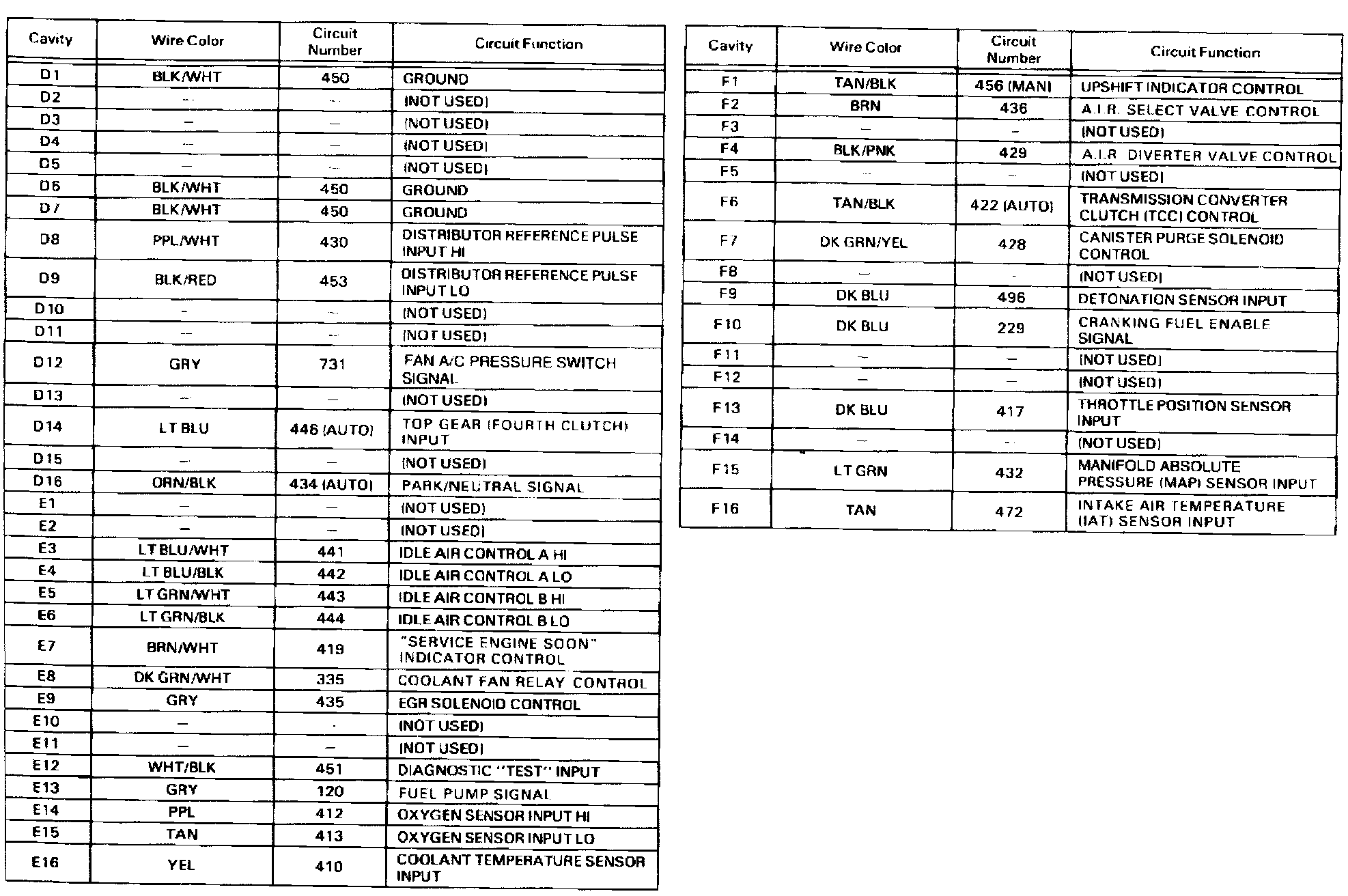

Engine Control Module (ECM) Connectors:



ECM Voltage Chart:



ECM Voltage Chart:



ECM Voltage Chart:
